Analog Devices USB Cable CN0159 Reference Design EVAL-CN0159-EB1Z

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
803-1608
Tillv. art.nr:
EVAL-CN0159-EB1Z
Tillverkare / varumärke:
Analog Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Analog Devices

Kit Classification

Reference Design

Featured Device

CN0159

Kit Name

USB Cable

COO (Country of Origin):
US

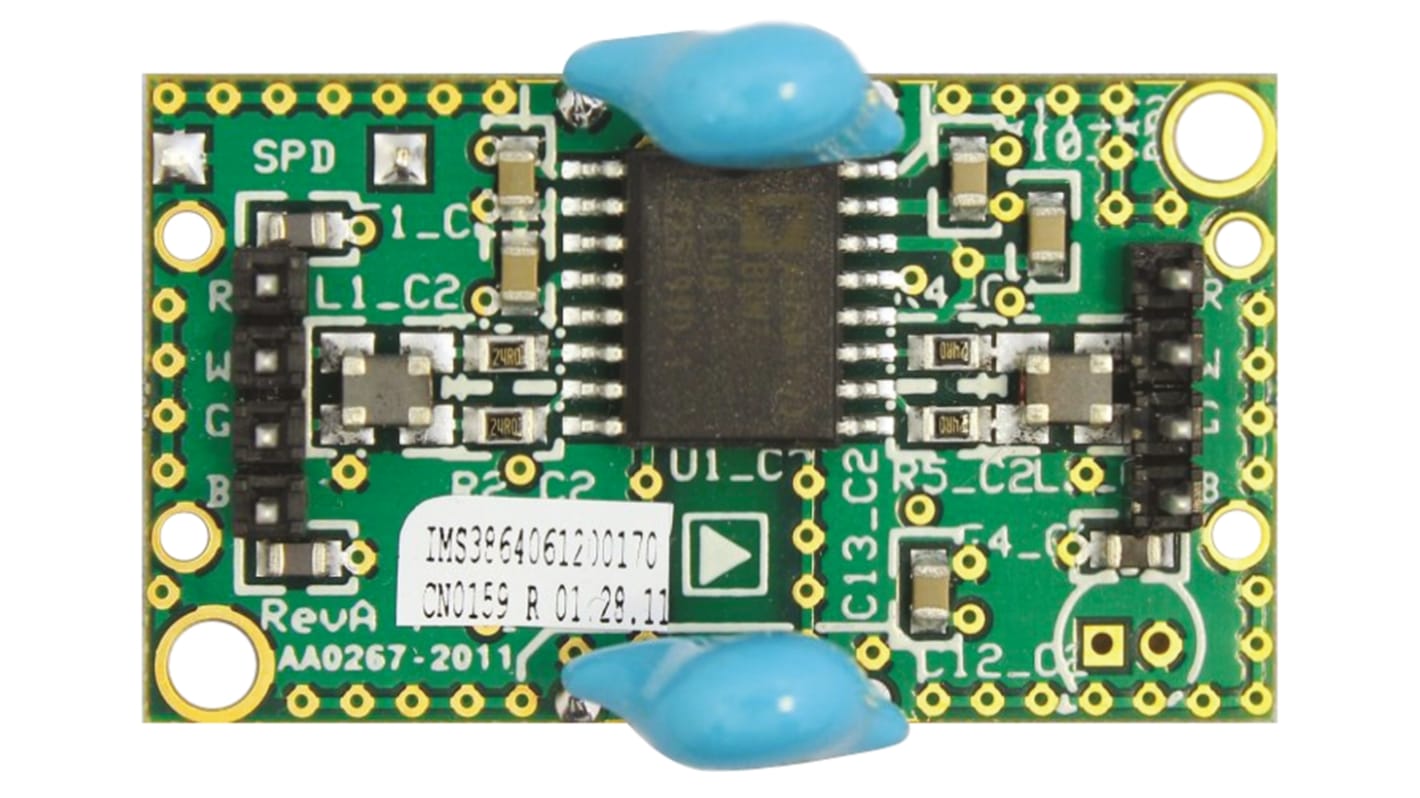

Evaluation Board for USB Cable Isolator Circuit


This Analog Devices evaluation board provides a solution to the requirement for a USB cable where isolation is required for connections to machines that control dangerous voltages or low leakage defibrillation-proof connections in medical applications. The ADuM4160 Full/Low Speed USB Isolator is used to provide the primary isolating function, supported by an ADuM1100 Digital Isolator and an ADuM5000 isolated DC-DC Converter. It should be noted that this custom application is not totally USB compliant as the quiescent current of the converter does not meet the USB standby current requirements. In addition, full USB compliance is impossible as there are no 100% efficient power converters to transfer the bus voltage across the isolation barrier.
