Analog Devices AD5700-1 Evaluation Kit EVAL-AD5700-1EBZ

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
786-2997
Tillv. art.nr:
EVAL-AD5700-1EBZ
Tillverkare / varumärke:
Analog Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Analog Devices

Kit Classification

Evaluation Kit

Featured Device

AD5700-1

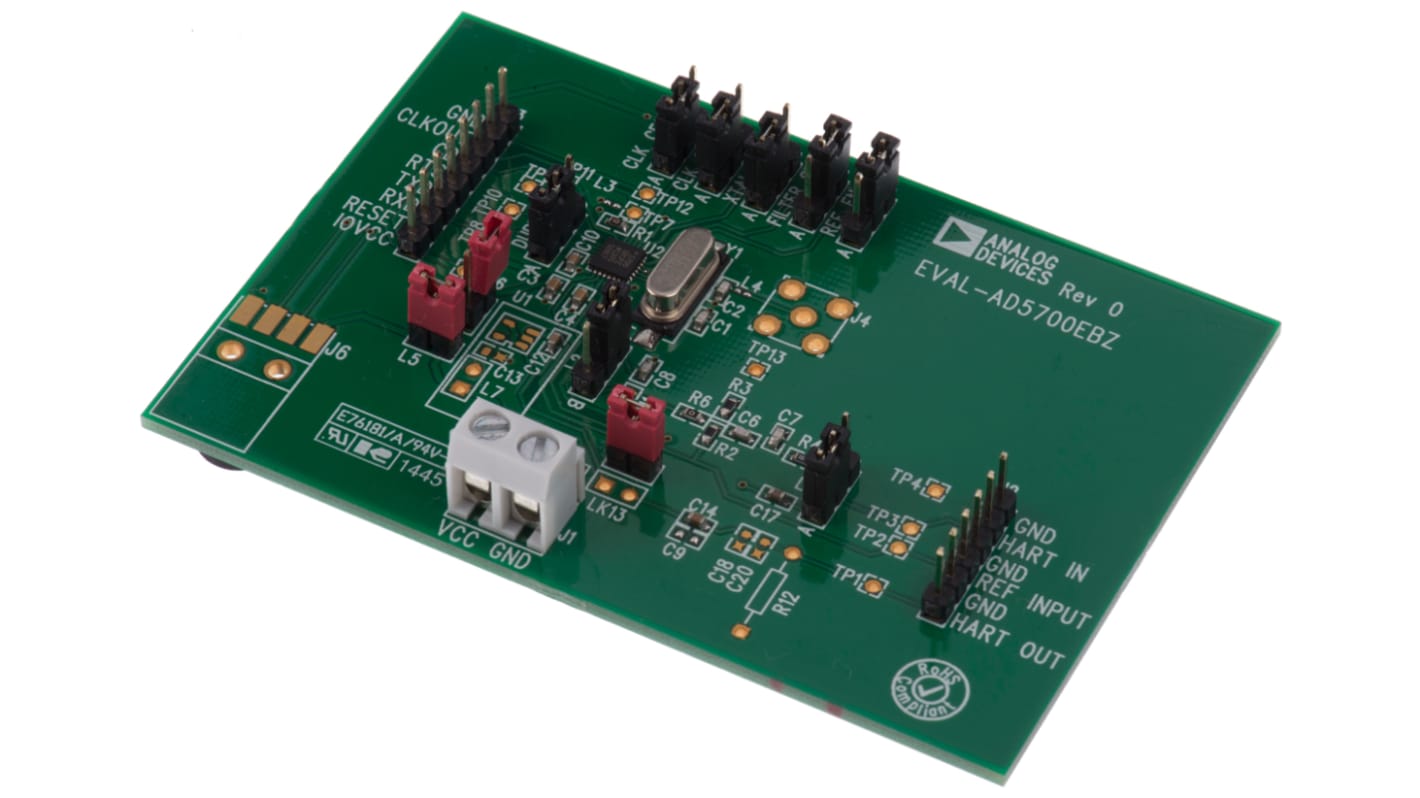

Evaluation Board for FSK AD5700/AD5700-1 HART® Modem


Convenient connections for power through screw Terminal block
Use of on-chip RC oscillator or an external crystal Various link options

AD5700 Low Power HART® Modem


The AD5700 is a Low Power HART® FSK half-duplex Modem, complying with the HART® physical layer requirements
The AD5700-1 is a Low Power HART® Modem with Precision Internal Oscillator
Iintegrates all of the necessary filtering, signal detection, modulating, demodulating and signal generation functions
Requires few external components
The maximum supply current consumption of 115μA
Transmit waveforms are phase continuous 1200Hz and 2200Hz sinusoids
Contains accurate carrier detect circuitry and uses a standard UART interface
Small 4 x 4 mm package housing


HART Modem Communications


A range of devices which conform to the HART (Highway Addressable Remote Transducer) industrial communications protocol. HART communications frequently utilize 4-20mA networks and are widely used in Automation and Control applications. The HART standard provides for both point-to-point (analogue or digital) and multi-drop (digital only) modes of operation, the latter using a fixed loop current of 4mA.
