Analog Devices iCoupler USB Hub ADuM4160 Reference Design EVAL-CN0158-EB1Z

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
803-1598
Tillv. art.nr:
EVAL-CN0158-EB1Z
Tillverkare / varumärke:
Analog Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Analog Devices

Kit Classification

Reference Design

Featured Device

ADuM4160

Kit Name

iCoupler USB Hub

COO (Country of Origin):
US

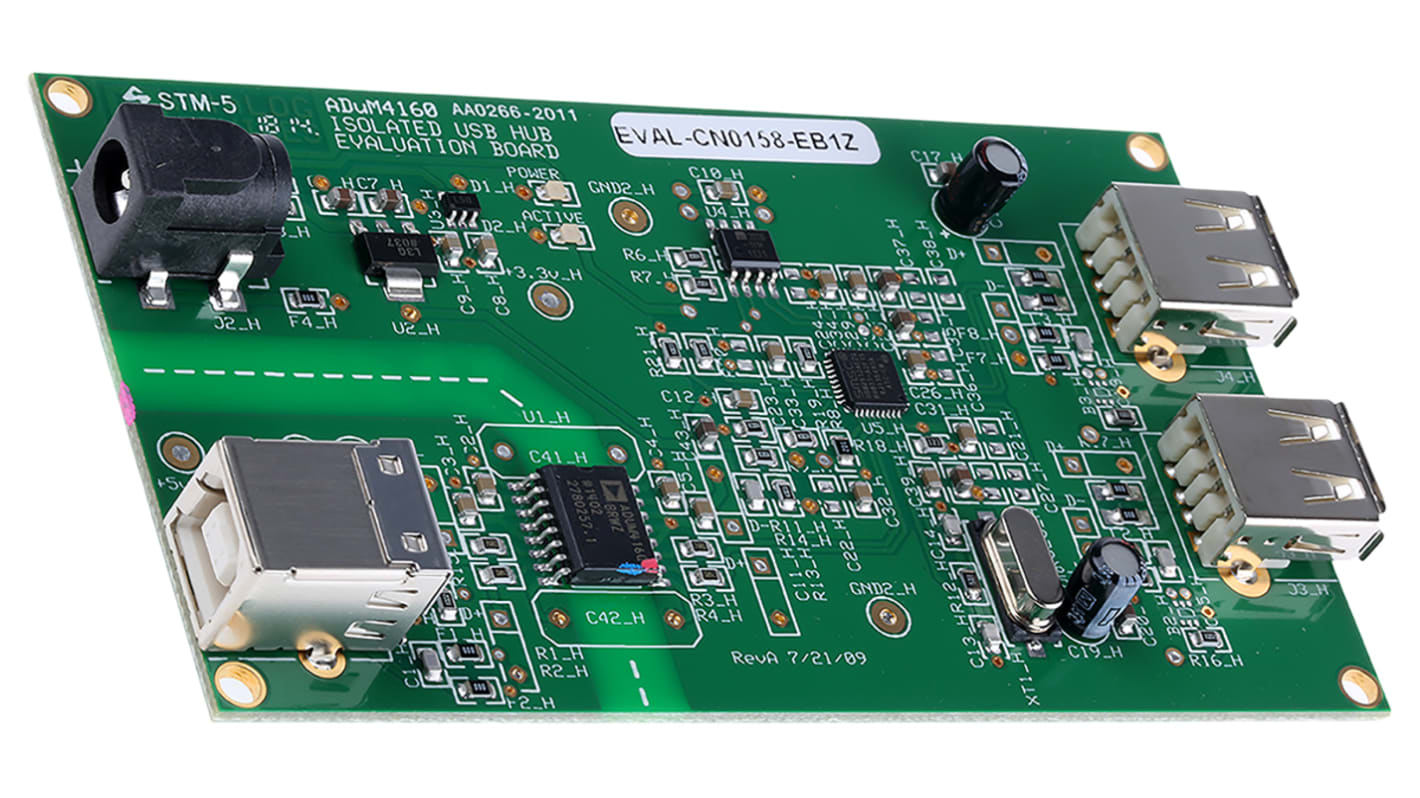

Evaluation Board for USB Hub Isolator Circuit


This Analog Devices evaluation board provides a solution to the requirement for a USB hub where isolation is required for connections to machines that control dangerous voltages or low leakage defibrillation-proof connections in medical applications. The ADuM4160 is used to provide the required isolation, and the chosen hub chip is a Microchip USB2512 two-port USB hub controller. The evaluation board also includes two high-accuracy LDO Regulators, the ADP3330 and ADP3339.


Digital Isolator Evaluation Boards, Analog Devices
