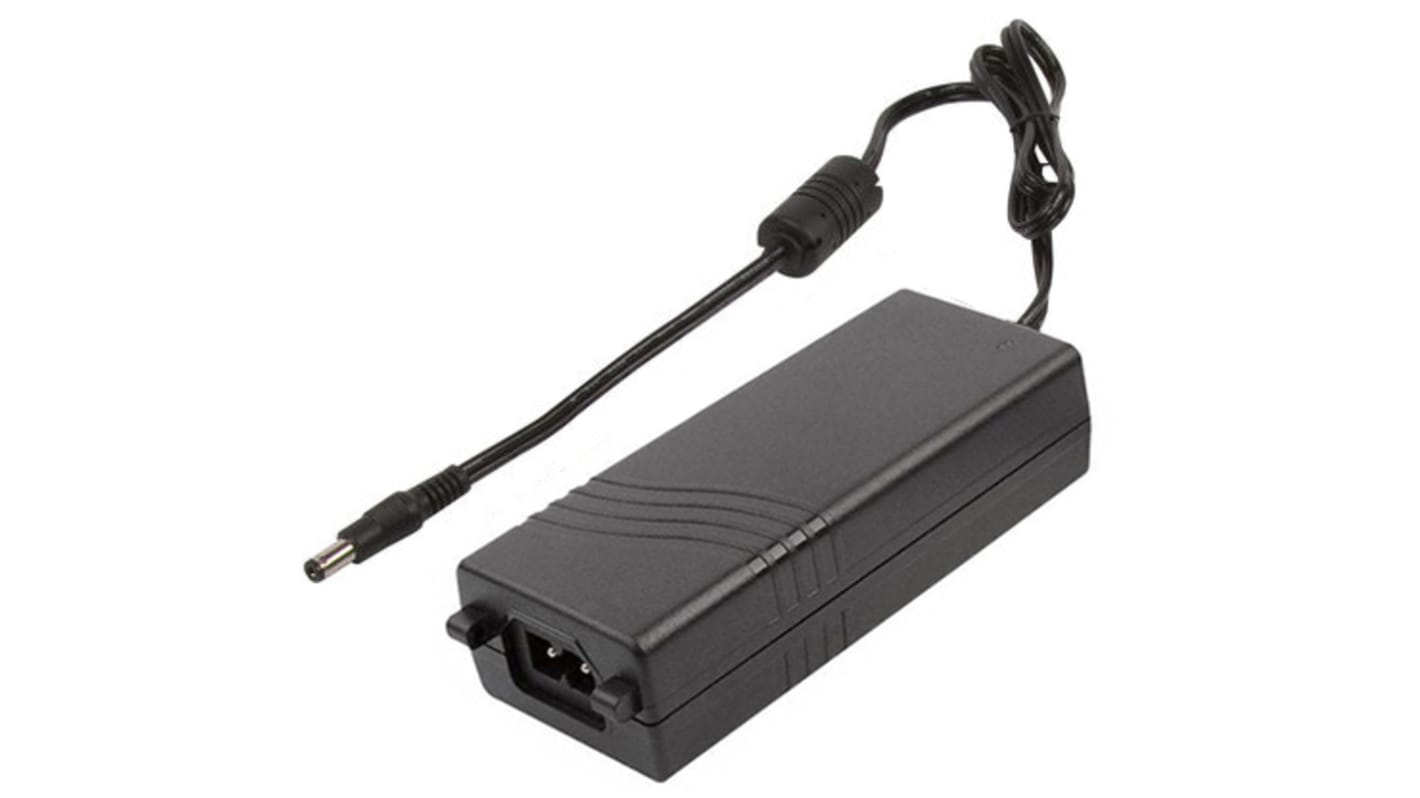

XP Power 60W Power Brick AC/DC Adapter 12V dc Output, 5A Output
- RS-artikelnummer:
- 121-7036
- Distrelec artikelnummer:
- 301-83-297
- Tillv. art.nr:
- AFM60US12C2
- Tillverkare / varumärke:
- XP Power
Mängdrabatt möjlig
Antal (1 enhet)*
614,58 kr
(exkl. moms)
768,22 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 1 enhet(er), redo att levereras
Enheter | Per enhet |
|---|---|
| 1 - 4 | 614,58 kr |
| 5 - 9 | 596,18 kr |
| 10 - 24 | 577,70 kr |
| 25 - 49 | 559,22 kr |
| 50 + | 540,85 kr |
*vägledande pris
- RS-artikelnummer:
- 121-7036
- Distrelec artikelnummer:
- 301-83-297
- Tillv. art.nr:
- AFM60US12C2
- Tillverkare / varumärke:
- XP Power
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 12V dc | |
| Input Voltage | 80 → 264V ac | |
| Output Current | 5A | |
| Maximum Temperature | +60°C | |
| Output Connector | DC Plug | |
| Input Connector | IEC 320-C8 | |
| Number of Outputs | 1 | |
| Power Rating | 60W | |
| Cable Length | 950mm | |
| Medical Approved | Yes | |
| MTBF | >250kh | |
| Standards Met | CCC Qualified, CEC2008, EISA2007, EN 55011/22/FCC, EN 60601-1, EN 60601-1-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60601-1, IEC 60950-1, MIL-HDBK-217F, UL 60601-1, UL 60950-1 | |
| Length | 125mm | |
| Series | AFM | |
| Line Regulation Range | ±1% | |
| Depth | 34mm | |
| Load Regulation | 2.5% | |
| Energy Efficiency Level | V | |
| Width | 62mm | |
| Minimum Temperature | 0°C | |
| Välj alla | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 12V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current 5A | ||
Maximum Temperature +60°C | ||
Output Connector DC Plug | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Power Rating 60W | ||
Cable Length 950mm | ||
Medical Approved Yes | ||
MTBF >250kh | ||
Standards Met CCC Qualified, CEC2008, EISA2007, EN 55011/22/FCC, EN 60601-1, EN 60601-1-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60601-1, IEC 60950-1, MIL-HDBK-217F, UL 60601-1, UL 60950-1 | ||
Length 125mm | ||
Series AFM | ||
Line Regulation Range ±1% | ||
Depth 34mm | ||
Load Regulation 2.5% | ||
Energy Efficiency Level V | ||
Width 62mm | ||
Minimum Temperature 0°C | ||
- COO (Country of Origin):
- CN
XP Power - AFM Series of Plug-in Power Supplies
The AFM series from XP Power offers a wide range of 30 W to 60 W plug-in power supplies, all of which feature level V energy efficiency. These power supplies are CEC2008 & EISA2007 compliant and being IT and medically approved. Optional Class II and optional white case versions are also available..
30 W, 45 W and 60 W plug-in power supplies
CEC2008 and EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
CCC qualified
CEC2008 and EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
CCC qualified
Switch Mode - XP Power
