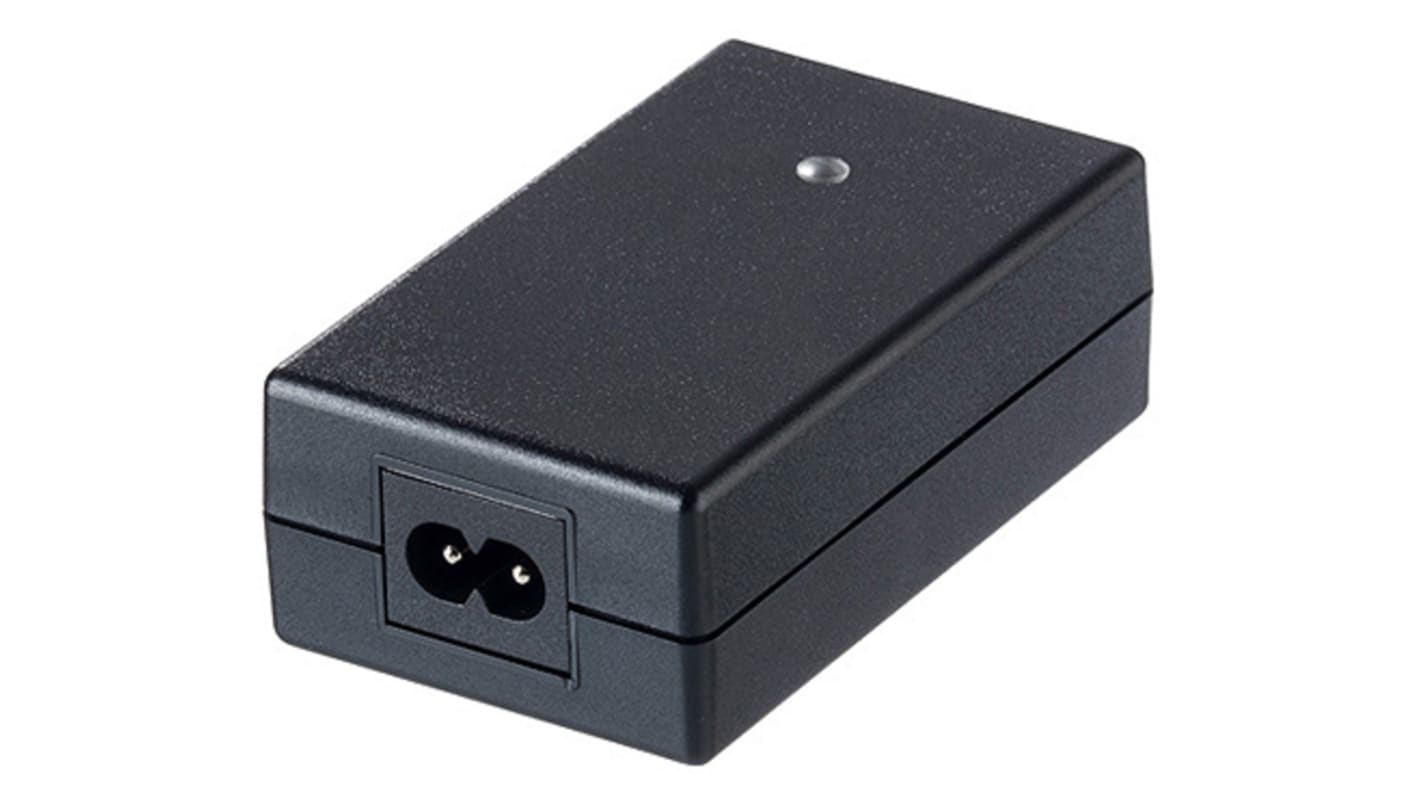

Friwo 30W Power Brick AC/DC Adapter 12V dc Output, 2.5A Output

RS-artikelnummer:: 117-6646
Tillv. art.nr:: EDV1898183RS
Tillverkare / varumärke:: Friwo

Friwo 30W Power Brick AC/DC Adapter 12V dc Output, 2.5A Output

Mängdrabatt möjlig

Antal (1 enhet)*

910,56 kr

(exkl. moms)

1 138,20 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

4 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	910,56 kr
5 - 9	883,23 kr
10 - 24	856,02 kr
25 - 49	828,69 kr
50 +	801,25 kr

*vägledande pris

RS-artikelnummer:: 117-6646
Tillv. art.nr:: EDV1898183RS
Tillverkare / varumärke:: Friwo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Friwo
	Adapter Type	Power Brick Adapter
	Plug Type	Interchangeable
	Output Voltage	12V dc
	Input Voltage	85 → 264V ac
	Output Current	2.5A
	Maximum Temperature	+45°C
	Input Connector	IEC 60320-C8
	Number of Outputs	1
	Power Rating	30W
	Medical Approved	Yes
	MTBF	200h
	Standards Met	AUS, CE Certified, CulUS Recognized, EN 55022, EN 55024, EN 60601-1-2, EU, IEC 60601-1, IEC/EN 60601-1-2, JPN, PSE, SIQ IEC/EN 60601-1, USA
	Series	FW8030M/DT
	Width	55mm
	Energy Efficiency Level	VI
	Depth	32mm
	Minimum Temperature	0°C
	Length	90mm

	Välj alla
	Brand Friwo
	Adapter Type Power Brick Adapter
	Plug Type Interchangeable
	Output Voltage 12V dc
	Input Voltage 85 → 264V ac
	Output Current 2.5A
	Maximum Temperature +45°C
	Input Connector IEC 60320-C8
	Number of Outputs 1
	Power Rating 30W
	Medical Approved Yes
	MTBF 200h
	Standards Met AUS, CE Certified, CulUS Recognized, EN 55022, EN 55024, EN 60601-1-2, EU, IEC 60601-1, IEC/EN 60601-1-2, JPN, PSE, SIQ IEC/EN 60601-1, USA
	Series FW8030M/DT
	Width 55mm
	Energy Efficiency Level VI
	Depth 32mm
	Minimum Temperature 0°C
	Length 90mm

Friwo FOX Series Datasheet

COO (Country of Origin):: DE

Friwo FOX Series Desk Top Power Adapter

Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.

The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.

Features and Benefits

Voltage outputs available from 5 to 48 V dc.
USB output options available.
Interchangeable plug system allows for flexibility.
Medical rated options available, to adhere to 2 x MOPP.
Meets energy efficiency standards DOE Level VI & ErP Level V.
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.

Standards

IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601

Switch Mode - Friwo
