Friwo 30W Plug-In AC/DC Adapter 24V dc Output, 1.3A Output
- RS-artikelnummer:
- 117-6638
- Tillv. art.nr:
- EDV1898158RS
- Tillverkare / varumärke:
- Friwo
167 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
662,29 kr
(exkl. moms)
827,86 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 662,29 kr |
| 5 - 9 | 642,44 kr |
| 10 - 24 | 622,59 kr |
| 25 - 49 | 602,74 kr |
| 50 + | 582,78 kr |
- RS-artikelnummer:
- 117-6638
- Tillv. art.nr:
- EDV1898158RS
- Tillverkare / varumärke:
- Friwo
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

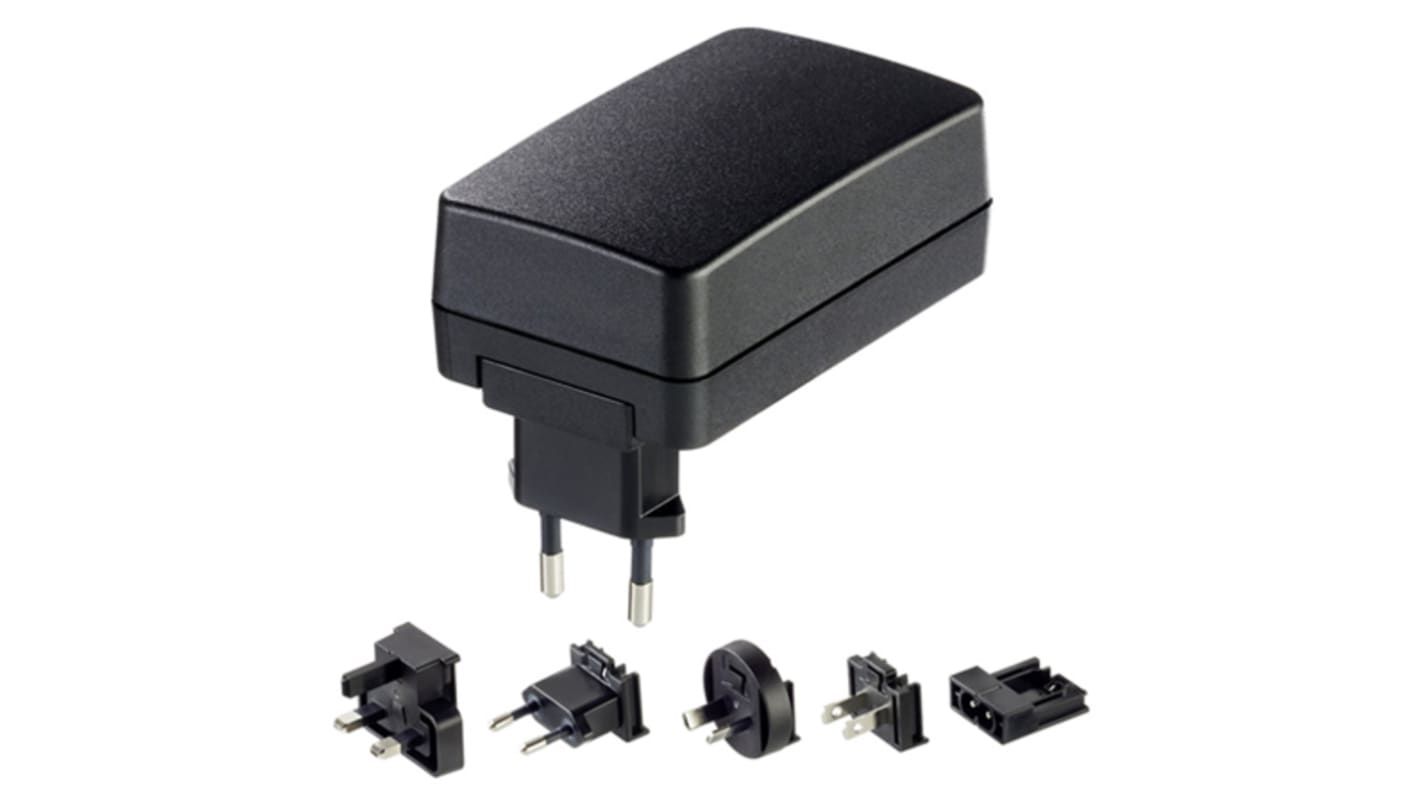

Friwo FOX Series Global Plug In Power Adapter
Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.
The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.
Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.
The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.
Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.
Features and Benefits
Voltage outputs available from 5 to 48 V dc.
USB output options available.
Interchangeable plug system allows for flexibility.
Medical rated options available, to adhere to 2 x MOPP.
Meets energy efficiency standards DOE Level VI & ErP Level V.
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.
Standards
IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601
Supplied with
A set of 7 output connectors
Switch Mode - Friwo
Specifikationer
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Interchangeable |
| Output Voltage | 24V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 1.3A |
| Maximum Temperature | +45°C |
| Output Connector | Interchangeable |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 30W |
| Standards Met | CE, cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ |
| MTBF | 200000h |
| Minimum Temperature | 0°C |
| Length | 90mm |
| Type | AC/DC Adapter |
| Depth | 34mm |
| Width | 55mm |
| Series | FW8030 |
| Energy Efficiency Level | VI |
