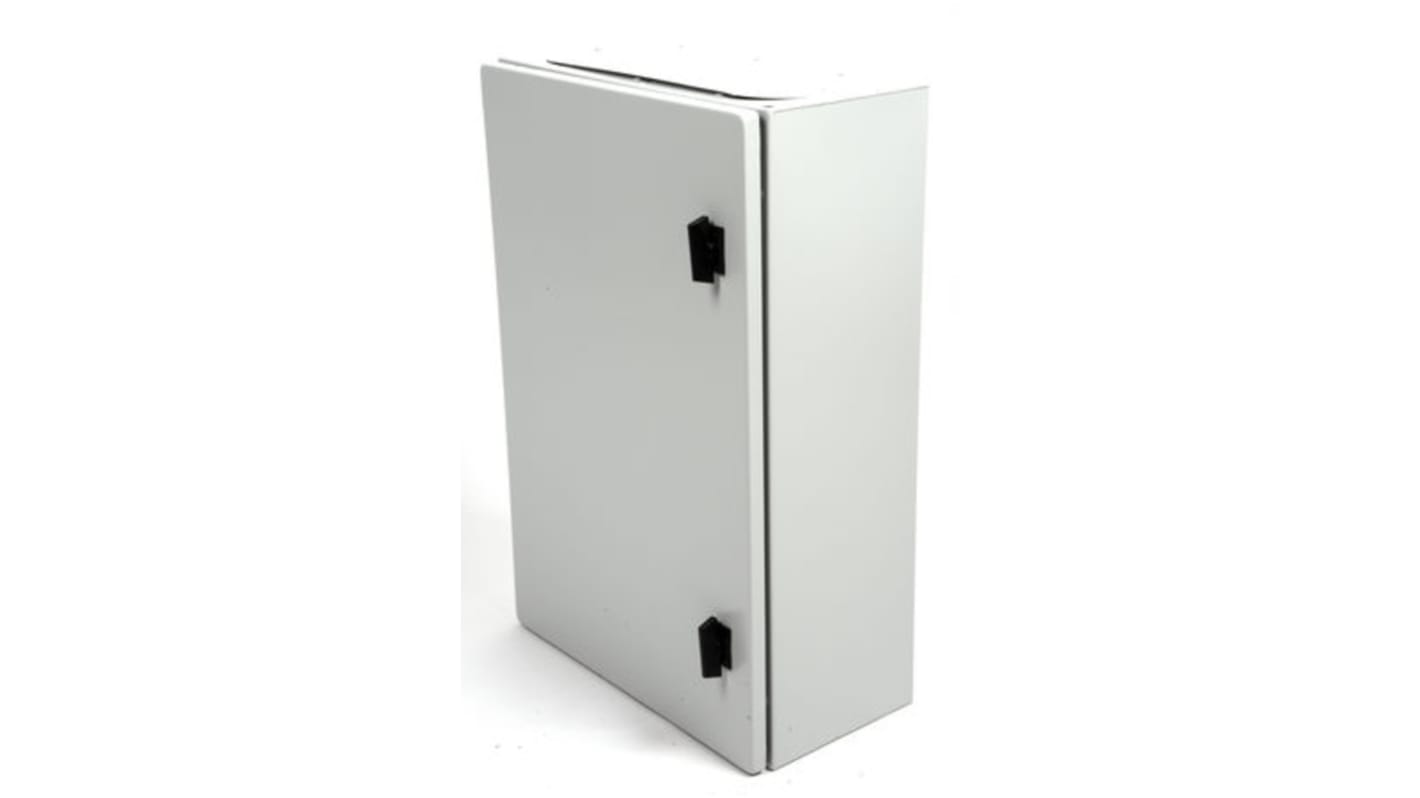

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 800 mm x 600 mm x 300mm

RS-artikelnummer:: 136-9404
Tillv. art.nr:: NSYCRN86300P
Tillverkare / varumärke:: Schneider Electric

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 800 mm x 600 mm x 300mm

Mängdrabatt möjlig

Pris (ex. moms) Varje**

2 671,09 kr

(exkl. moms)

3 338,86 kr

(inkl. moms)

2 I lager för avsändande samma dag*

3 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Enheter	Per enhet
1 - 3	2 671,09 kr
4 +	2 590,86 kr

Better World

Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.

RS-artikelnummer:: 136-9404
Tillv. art.nr:: NSYCRN86300P
Tillverkare / varumärke:: Schneider Electric

Logga in för att ladda ner CAD-modeller

Schneider Electric IP66/IK10 Spacial CRN - CRNG Multi-Purpose Steel Wall Box Enclosure with Cable Gland Plate.

The Schneider Electric Spacial CRN and CRNG steel wall mounting enclosure is a truly universal wall box enclosure has an epoxy-polyester powder finish light grey body. The enclosure also has a polyurethane seal to guarantee water tightness for years. Schneider Electric range offers you CRN models and CRNG models for larger sizes of wall box enclosures.

CRN and CRNG Universal Wall Box Enclosures Features.

Doors are removable, have a 120° opening, reversible with 2 closing points from 600 mm in height.

Maximum load of 50 kg/m2.

Polyurethane seal.

Smart hinges allow easier removal allowing door reversal.

Various inserts available.

Welded studs on the door and wall box enclosure body (earth welded).

Welded back studs (4), shouldered for mounting 10 mm.

Epoxy polyester coating, polyurethane seal to guarantee water tightness for years.

Polyester painted RAL 7035.

CRNG Wall Boxes.

3 Point lock.

Double door models available (IP 55).

Please Note - Wall brackets available seperately and
not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.

Spacial CRN / CRNG Wall Box Enclosure Chassis Optionally Available.

Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.

Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.

Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).

Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).

Electronics and Industrial networks (18 inch fixed or swing frame).

Schneider Electric Compact Enclosure - NSYCRN86300P

• Commonly referred to by as the Spacial CRM
• Created and designed for use in a multi-purpose environment
• Compact in size
• The wall box can be installed via wall-mounting
• The dimensions of this wall box are: H800mm x W600mm x D300 mm
• The device composition - Body, mounting plate, door with one lock and cable gland plate

Attribute	Value
External Height	800 mm
External Width	600 mm
External Depth	300mm
Body Material	Steel
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Double Bar
Gland Plate	Yes
Colour	RAL 7035 Textured Grey
Series	Spacial CRN
RAL Code	RAL 7035
External Mounting Type	Bracket
Better World Product	Yes
Better World Verification	Green Premium
Special Features	120° Door Opening
Internal Mounting Type	Panel
Fixing Kit	No
IK Rating	IK10
