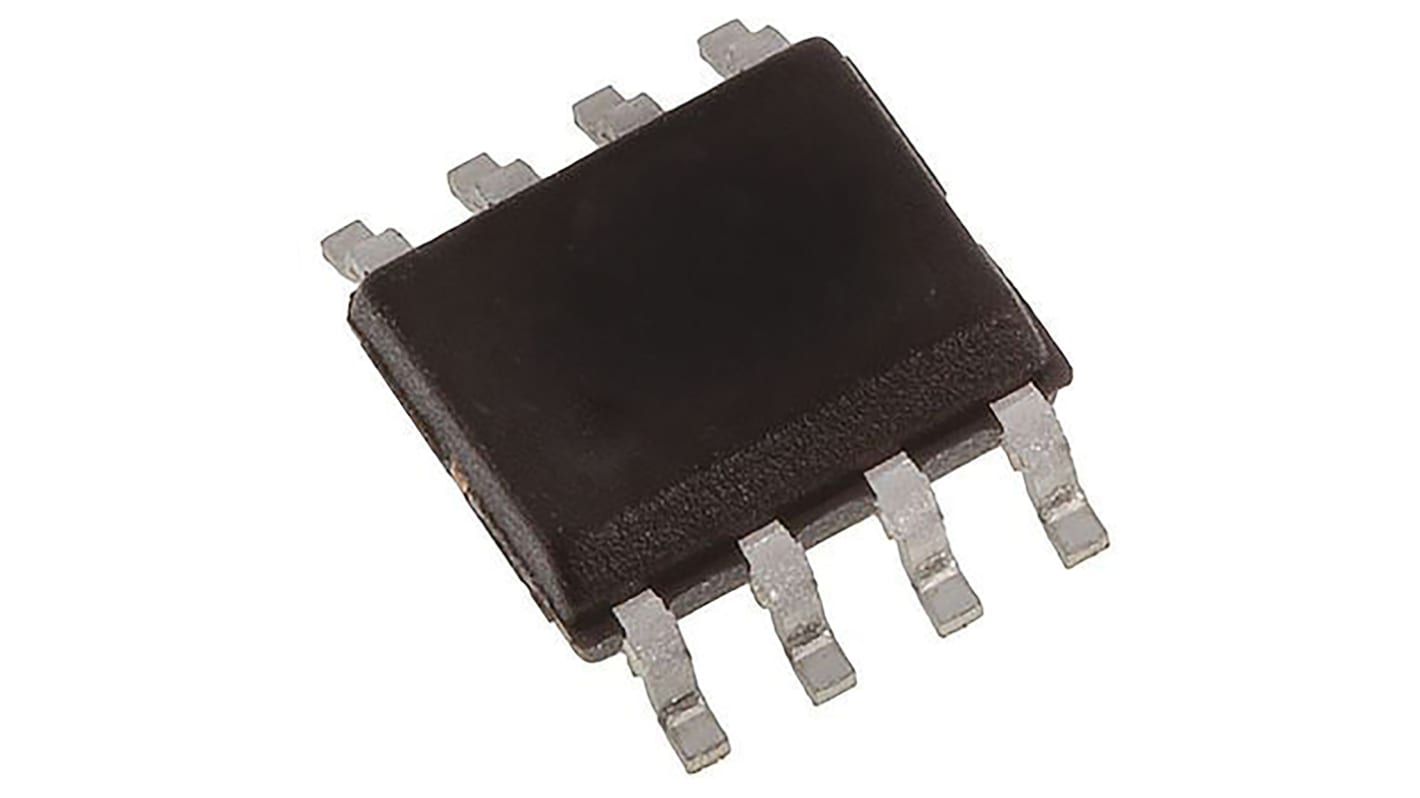

Analog Devices LT1054LCS8#PBF, 5-Channel Charge Pump, Regulator, 125 mA, 2 V 35 kHz, SOIC 8-Pin

Se alla Voltage Regulators
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Förpackningsalternativ:
RS-artikelnummer:
822-5888
Tillv. art.nr:
LT1054LCS8#PBF
Tillverkare / varumärke:
Analog Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Analog Devices

Product Type

Regulator

Regulator Type

Charge Pump

Output Voltage

2 V

Number of Outputs

5

Line Regulation

5 mV

Switching Frequency

35kHz

Load Regulation

50 mV

Mount Type

Surface

Package Type

SOIC

Quiescent Current

2.5mA

Output Current

125mA

Pin Count

8

Switching Regulator

Yes

Series

LT1054

Width

3.988 mm

Length

5mm

Standards/Approvals

No

Height

1.498mm

Minimum Input Voltage

3.5V

Maximum Operating Temperature

100°C

Maximum Input Voltage

7V

Minimum Operating Temperature

0°C

Automotive Standard

No

Inductorless (Charge Pump) DC/DC Converters, Linear Technology


The Linear Technology range of Inductorless DC/DC Converter (Charge Pump) offers step-up, step-down as well as inverting devices. The regulated buck boost charge pumps and the regulated Inverting charge pumps contain Spread Spectrum technology on-chip making the input and output quieter.

Small footprint due to no inductor

Simple design

Switching Voltage Regulators, Linear Technology


Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.

The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
