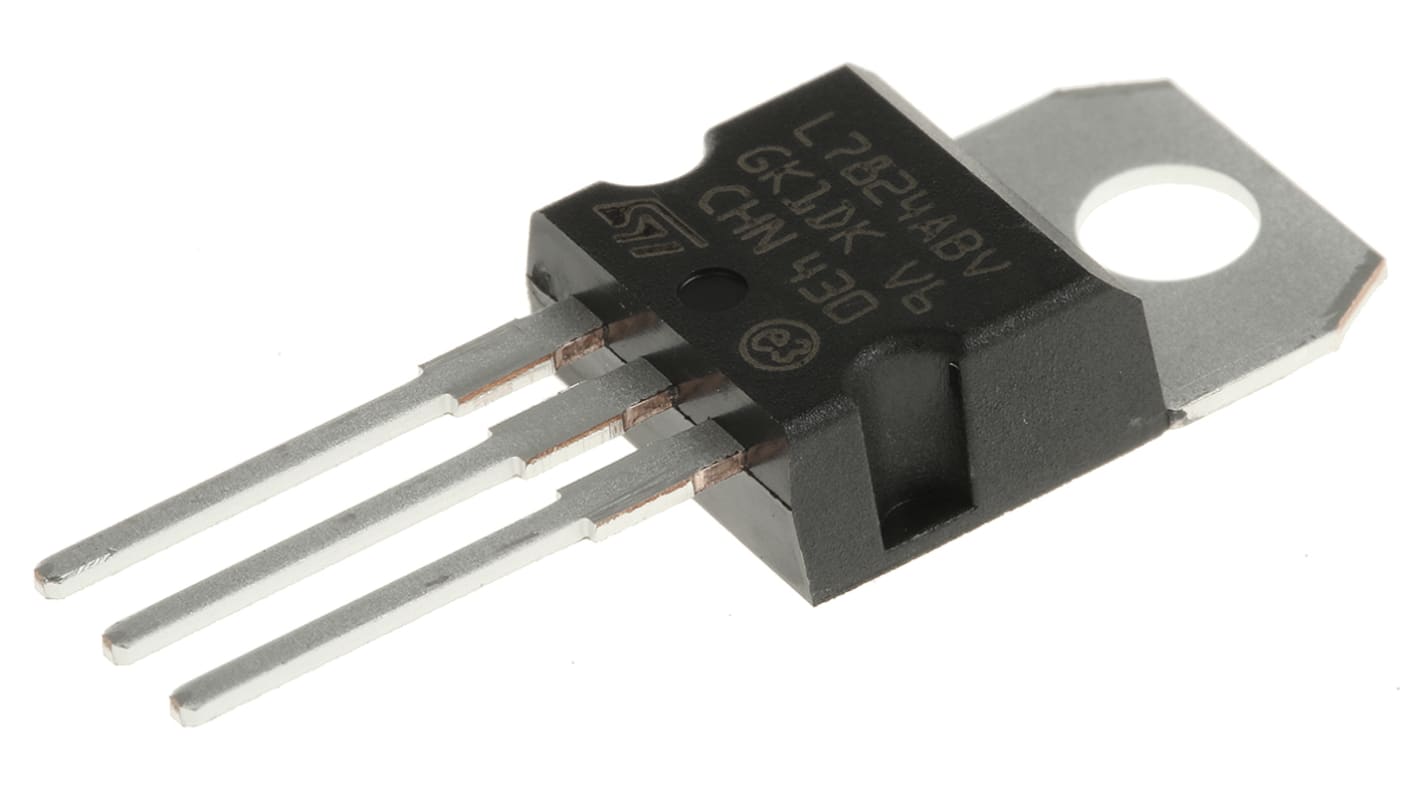

STMicroelectronics, Voltage Regulator 40V TO-220 3-Pin
- RS-artikelnummer:
- 686-9773
- Tillv. art.nr:
- L7824ABV
- Tillverkare / varumärke:
- STMicroelectronics
Mängdrabatt möjlig
Antal (1 förpackning med 10 enheter)*
50,62 kr
(exkl. moms)
63,28 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 160 enhet(er) är redo att levereras
- Plus 40 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 260 enhet(er) från den 15 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 - 90 | 5,062 kr | 50,62 kr |
| 100 - 990 | 3,338 kr | 33,38 kr |
| 1000 - 1990 | 3,248 kr | 32,48 kr |
| 2000 - 9990 | 3,147 kr | 31,47 kr |
| 10000 + | 3,08 kr | 30,80 kr |
*vägledande pris
- RS-artikelnummer:
- 686-9773
- Tillv. art.nr:
- L7824ABV
- Tillverkare / varumärke:
- STMicroelectronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Voltage Regulator | |
| Package Type | TO-220 | |
| Polarity | Positive | |
| Mount Type | Through Hole | |
| Quiescent Current | 4.6mA | |
| Pin Count | 3 | |
| Height | 9.15mm | |
| Length | 10.4mm | |
| Width | 4.6 mm | |
| Standards/Approvals | No | |
| Series | L78xx | |
| Maximum Operating Temperature | 125°C | |
| Maximum Input Voltage | 40V | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Voltage Regulator | ||
Package Type TO-220 | ||
Polarity Positive | ||
Mount Type Through Hole | ||
Quiescent Current 4.6mA | ||
Pin Count 3 | ||
Height 9.15mm | ||
Length 10.4mm | ||
Width 4.6 mm | ||
Standards/Approvals No | ||
Series L78xx | ||
Maximum Operating Temperature 125°C | ||
Maximum Input Voltage 40V | ||
Automotive Standard No | ||
L78 Series Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
Features and Benefits
Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;
24 V
Applications
Power Management
Linear Voltage Regulators, STMicroelectronics
