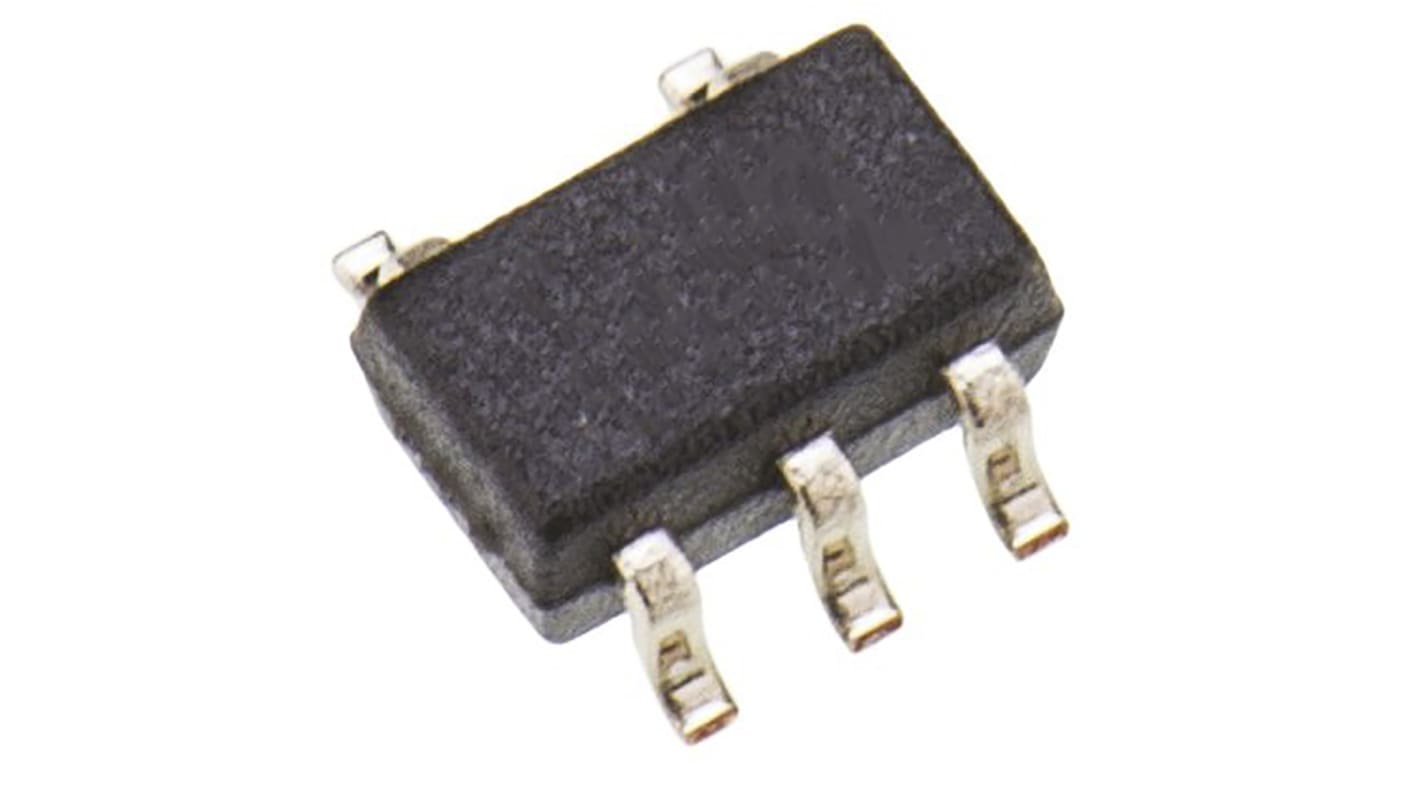

Maxim Integrated MAX8510EXK33+T, Voltage Regulator 6V 5-Pin

Se alla Voltage Regulators

Antal (1 förpackning med 10 enheter)*

63,25 kr

(exkl. moms)

79,06 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 390 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
10 +6,325 kr63,25 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
190-8260
Tillv. art.nr:
MAX8510EXK33+T
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Product Type

Voltage Regulator

Mount Type

Surface

Polarity

Positive

Quiescent Current

40μA

Pin Count

5

Height

1mm

Series

MAX8510

Width

1.35 mm

Standards/Approvals

No

Length

2.2mm

Maximum Input Voltage

6V

Maximum Operating Temperature

85°C

Minimum Input Voltage

2V

Automotive Standard

No

COO (Country of Origin):
MY
Space-Saving SC70 and TDFN (2mm x 2mm) Packages

11μVRMS Output Noise at 100Hz to 100kHz Bandwidth (MAX8510)

78dB PSRR at 1kHz (MAX8510)

120mV Dropout at 120mA Load

Stable with 1μF Ceramic Capacitor for Any Load

Guaranteed 120mA Output

Only Need Input and Output Capacitors (MAX8511)

Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V (MAX8510/MAX8511) and Adjustable (MAX8512)

Low 40μA Ground Current

Excellent Load/Line Transient

Overcurrent and Thermal Protection

Applications

Base Stations

Bluetooth® Portable Radios and Accessories

Cellular and Cordless Phones

Digital Cameras

PDA and Palmtop Computers

Personal Stereos

Portable and Battery-Powered Equipment

Wireless LANs
