Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Maxim Integrated
	Nominal Voltage	2.5V
	Package Type	SO
	Reference Type	Precision
	Initial Accuracy	0.06%
	Mounting Type	Surface Mount
	Maximum Input Voltage	40 V
	Minimum Output Voltage	2.49 V
	Maximum Output Voltage	2.501 V
	Pin Count	8
	Line Regulation	10 ppm/V
	Load Regulation	15 (Sourcing) ppm/mA, 900 (Sink) ppm/mA
	Dimensions	5 x 4 x 1.5mm
	Length	5mm
	Maximum Operating Temperature	+125 °C
	Minimum Operating Temperature	-40 °C
	Width	4mm
	Height	1.5mm

	Välj alla
	Brand Maxim Integrated
	Nominal Voltage 2.5V
	Package Type SO
	Reference Type Precision
	Initial Accuracy 0.06%
	Mounting Type Surface Mount
	Maximum Input Voltage 40 V
	Minimum Output Voltage 2.49 V
	Maximum Output Voltage 2.501 V
	Pin Count 8
	Line Regulation 10 ppm/V
	Load Regulation 15 (Sourcing) ppm/mA, 900 (Sink) ppm/mA
	Dimensions 5 x 4 x 1.5mm
	Length 5mm
	Maximum Operating Temperature +125 °C
	Minimum Operating Temperature -40 °C
	Width 4mm
	Height 1.5mm

Datasheet - MAX6143AASA25+

Wide (VOUT + 2V) to +40V Supply Voltage Range
Excellent Temperature Stability: 3ppm/°C (max)
Tight Initial Accuracy: 0.05% (max)
Low Noise: 3.8μVP-P (typ at 2.5V Output)
Sources up to 30mA Output Current
Low Supply Current: 450μA (max at +25°C)
Low 0.01μA Shutdown Current
Linear Temperature Transducer Voltage Output
+2.5V, +3.3V, +4.096V, +5.0V, or +10V Output Voltages
Wide Operating Temperature Range: -40°C to +125°C
No External Capacitors Required for Stability
Applications
A/D Converters
D/A Converters
Digital Voltmeters
Threshold Detectors
Voltage Regulators

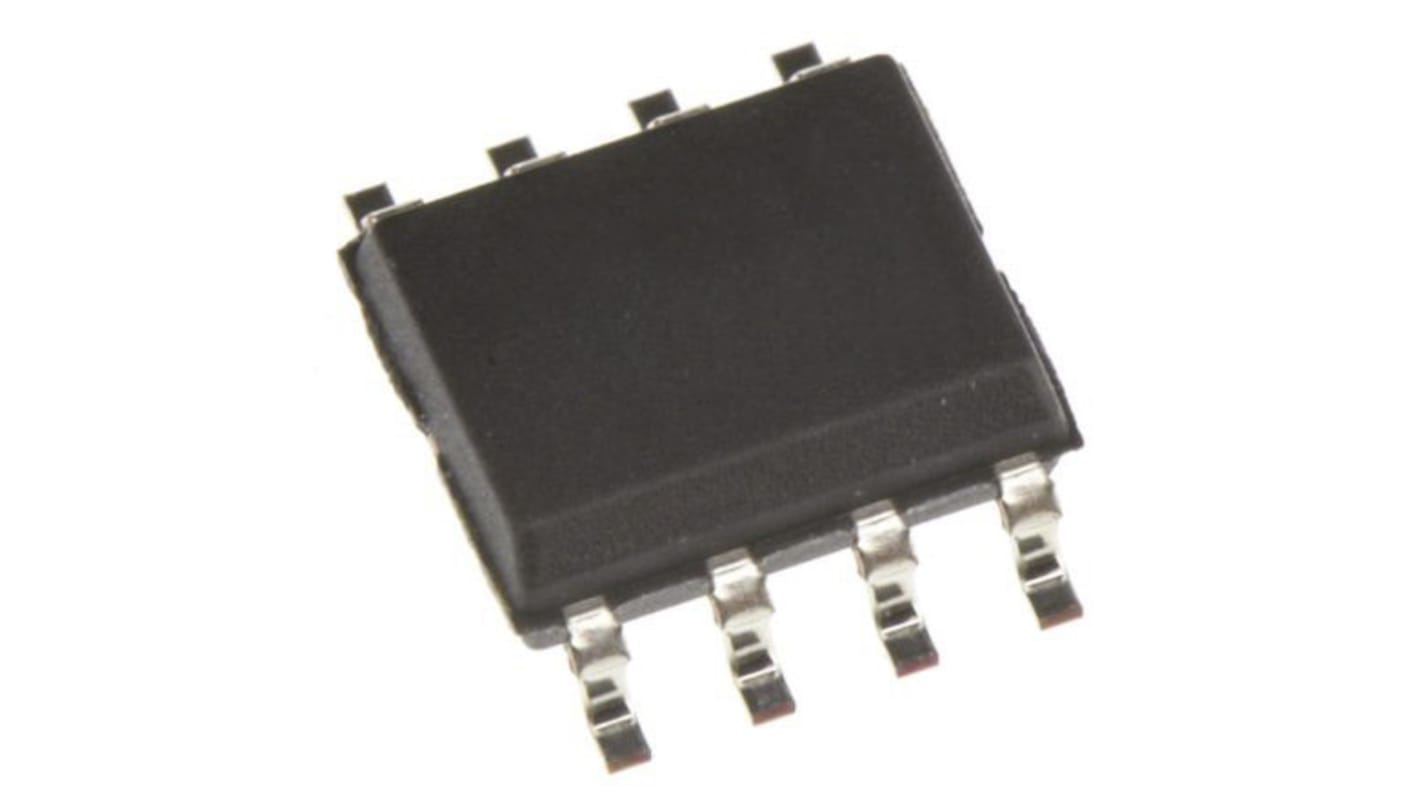

Maxim Integrated Precision Precision Voltage Reference 2.5V 0.06% 8-Pin SO, MAX6143AASA25+
