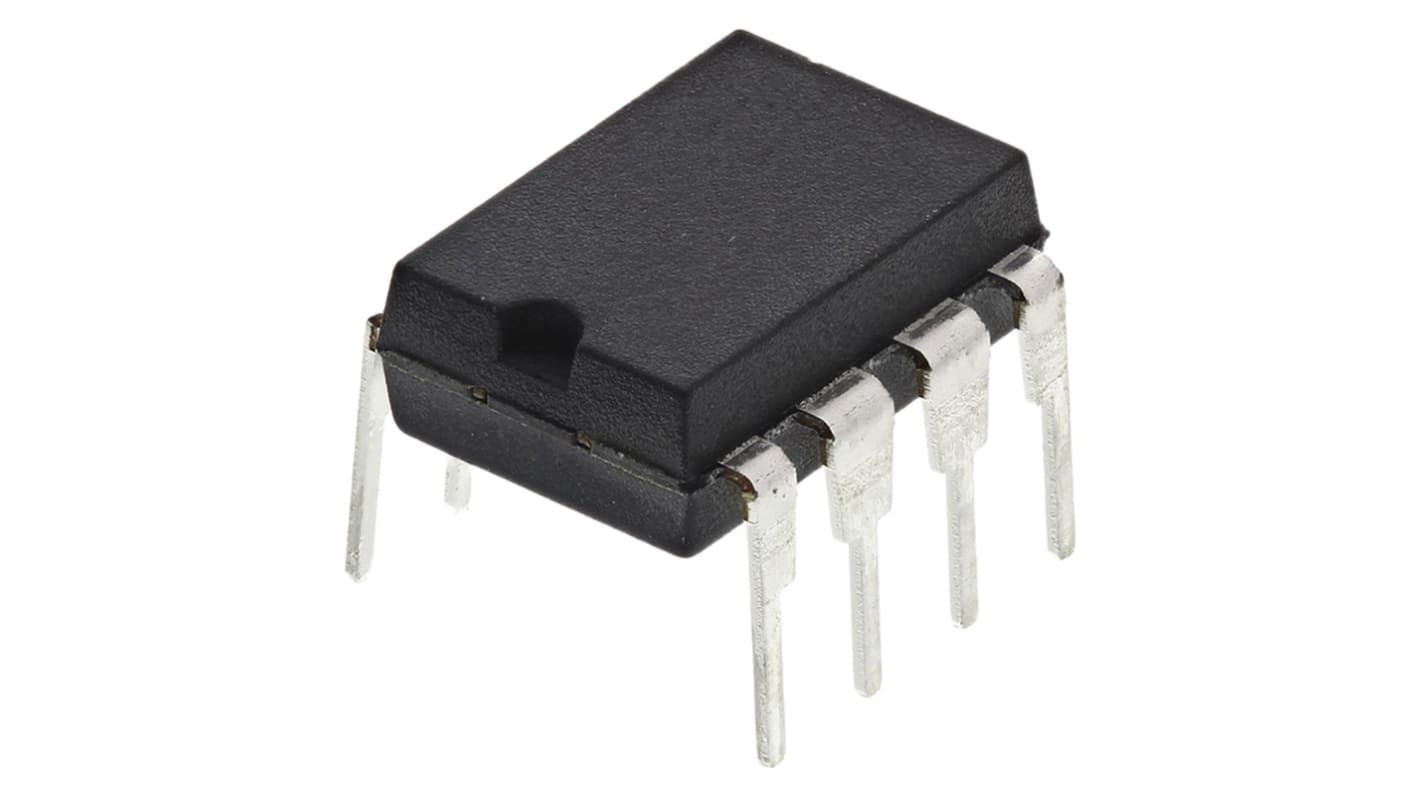

Texas Instruments Adjustable Shunt Voltage Reference 2.5 - 36V ±2.0 % 8-Pin PDIP, TL431CP

Se alla Voltage References
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
145-5809
Tillv. art.nr:
TL431CP
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Nominal Voltage

2.5 - 36V

Package Type

PDIP

Reference Type

Adjustable

Initial Accuracy

±2.0 %

Mounting Type

Through Hole

Topology

Shunt

Maximum Output Current

100mA

Maximum Input Voltage

37 V

Minimum Output Voltage

2.5 V

Maximum Output Voltage

36 V

Pin Count

8

Dimensions

9.81 x 6.35 x 4.57mm

Minimum Operating Temperature

0 °C

Width

6.35mm

Height

4.57mm

Maximum Operating Temperature

+70 °C

Length

9.81mm

COO (Country of Origin):
MY

Shunt Voltage Reference, Adjustable, TL Series



Voltage References, Texas Instruments


Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
