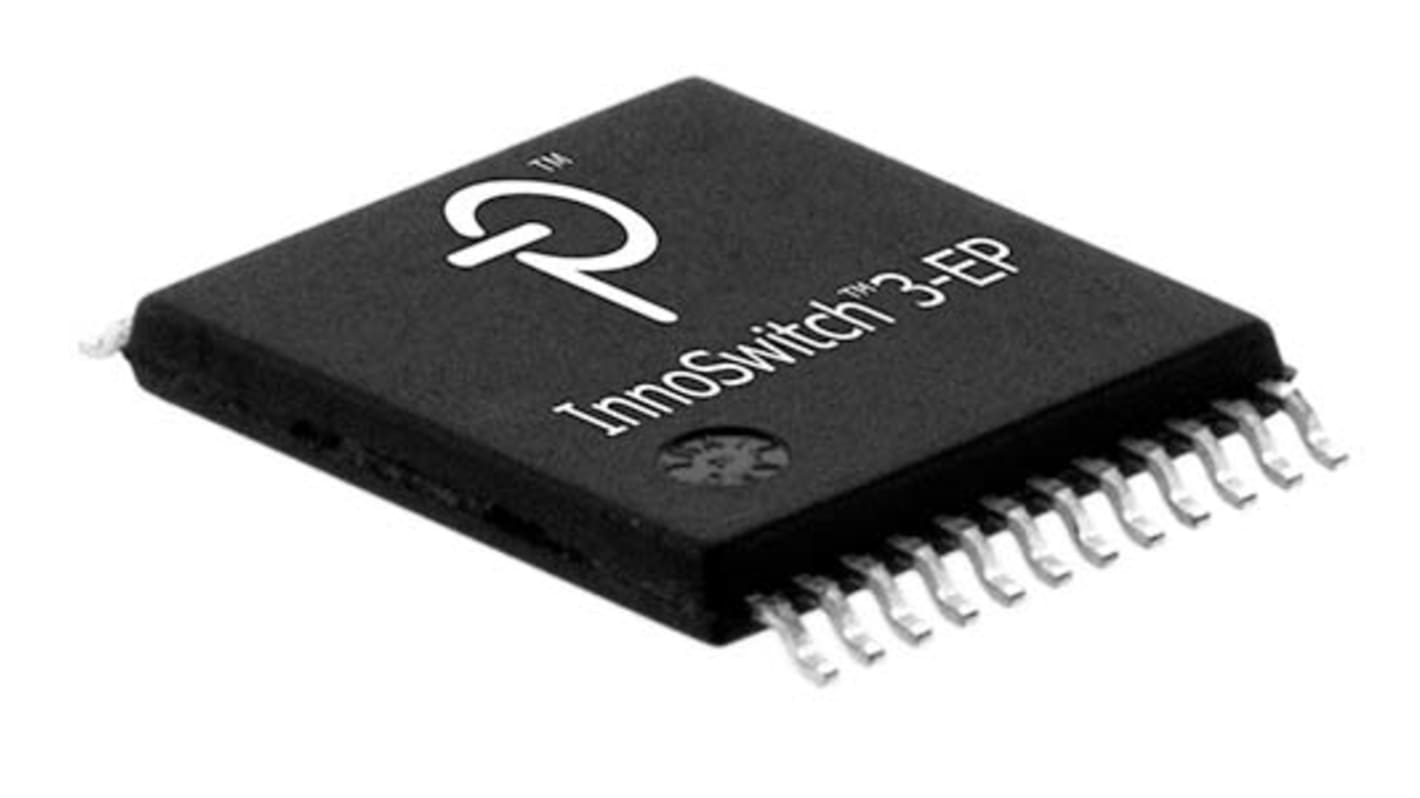

Power Integrations INN3676C-H601-TL 16-Pin 85 V 265 V

Se alla Voltage Controllers

Antal (1 enhet med 10 enheter)*

18,03 kr

(exkl. moms)

22,54 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 04 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per enhet*
1 +18,03 kr1,803 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
159-2517
Tillv. art.nr:
INN3676C-H601-TL
Tillverkare / varumärke:
Power Integrations
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Power Integrations

Product Type

Voltage Controller

Number of Channels

1

Mount Type

Surface

Pin Count

16

Minimum Supply Voltage

85V

Maximum Supply Voltage

265V

Height

1.45mm

Standards/Approvals

RoHS

Series

InnoSwitch3-EP

Length

9.4mm

Width

13.4 mm

Automotive Standard

No

Maximum Operating Temperature

150°C

The InnoSwitch3-EP family of ICs dramatically simplifies the design and manufacture of flyback power converters, particularly those requiring high efficiency and/or Compact size. The InnoSwitch3-EP family combines primary and secondary controllers and safety-rated feedback into a single IC. InnoSwitch3-EP family devices incorporate multiple protection features including line over and undervoltage protection, output overvoltage and over-current limiting, and over-temperature shutdown.

Compact Footprint

Up to 94% efficiency across full load range

Exceptional CV/CC accuracy, independent of external components

Adjustable accurate output current sense using external output sense resistor

Less than 15 mW no-load including line sense

Easily meets all global energy efficiency regulations

Low heat dissipation

Advanced Protection / Safety Features

Secondary MOSFET or diode short-circuit protection

Open SR FET-gate detection

Fast input line UV/OV protection
