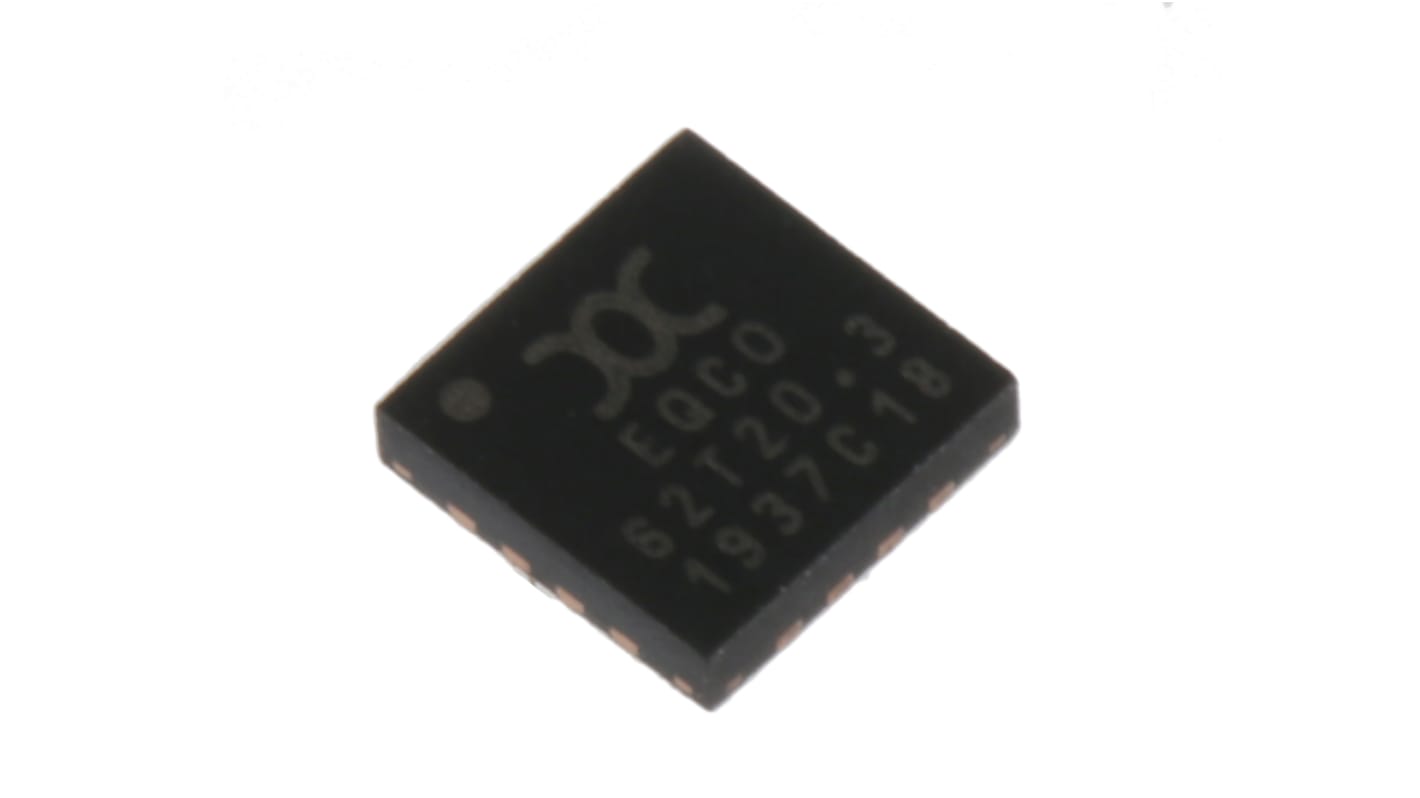

EQCO62T20.3, Video Driver 1-Channel Video Driver 16-Pin QFN

RS-artikelnummer:: 828-8902
Tillv. art.nr:: EQCO62T20.3
Tillverkare / varumärke:: Microchip

Tillfälligt slut i lager – restorder för leverans när den finns i lager

Lagt till varukorgen

Pris (ex. moms) Each

421,54 kr

(exkl. moms)

526,92 kr

(inkl. moms)

Enheter	Per unit
1 +	421,54 kr

RS-artikelnummer:: 828-8902
Tillv. art.nr:: EQCO62T20.3
Tillverkare / varumärke:: Microchip

Datablad

Build or Request PCB Symbol & Footprint

Lagstiftning och ursprungsland

Produktdetaljer

Transceivers for CoaXPress® Camera Solutions, Microchip

CoaXPress (CXP) is an asymmetric high-speed point-to-point serial communication standard for the transmission of video and still images, scalable over single or multiple coaxial cables.
This solution supports a high-speed downlink of up to 6.25Gbps per cable for video and images, plus a lower speed, 20Mbps, uplink for communications and control. Video transmission, power and data (control) are simultaneous over a single cable.

EQCO62T20: Transmits ≤ 6.25 Gbps; Receives ≤ 20 Mbit/s
EQCO31T20: Transmits ≤ 3.125 Gbps; Receives ≤ 20 Mbit/s
EQCO62R20: Receives ≤ 6.25 Gbps; Transmits ≤ 20 Mbit/s
EQCO31R20: Receives ≤ 3.125 Gbps; Transmits ≤ 20 Mbit/s

Data Transmission - Microchip

Specifikationer

Attribute	Value
Number of Channels	1
Maximum Output Voltage	1.6 V
Interface Type	Video Driver
Mounting Type	Surface Mount
Package Type	QFN
Pin Count	16
Dimensions	4 x 4 x 0.95mm
Length	4mm
Width	4mm
Height	0.95mm
Maximum Operating Supply Voltage	1.5 V
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	1.25 V
Minimum Operating Temperature	-40 °C
