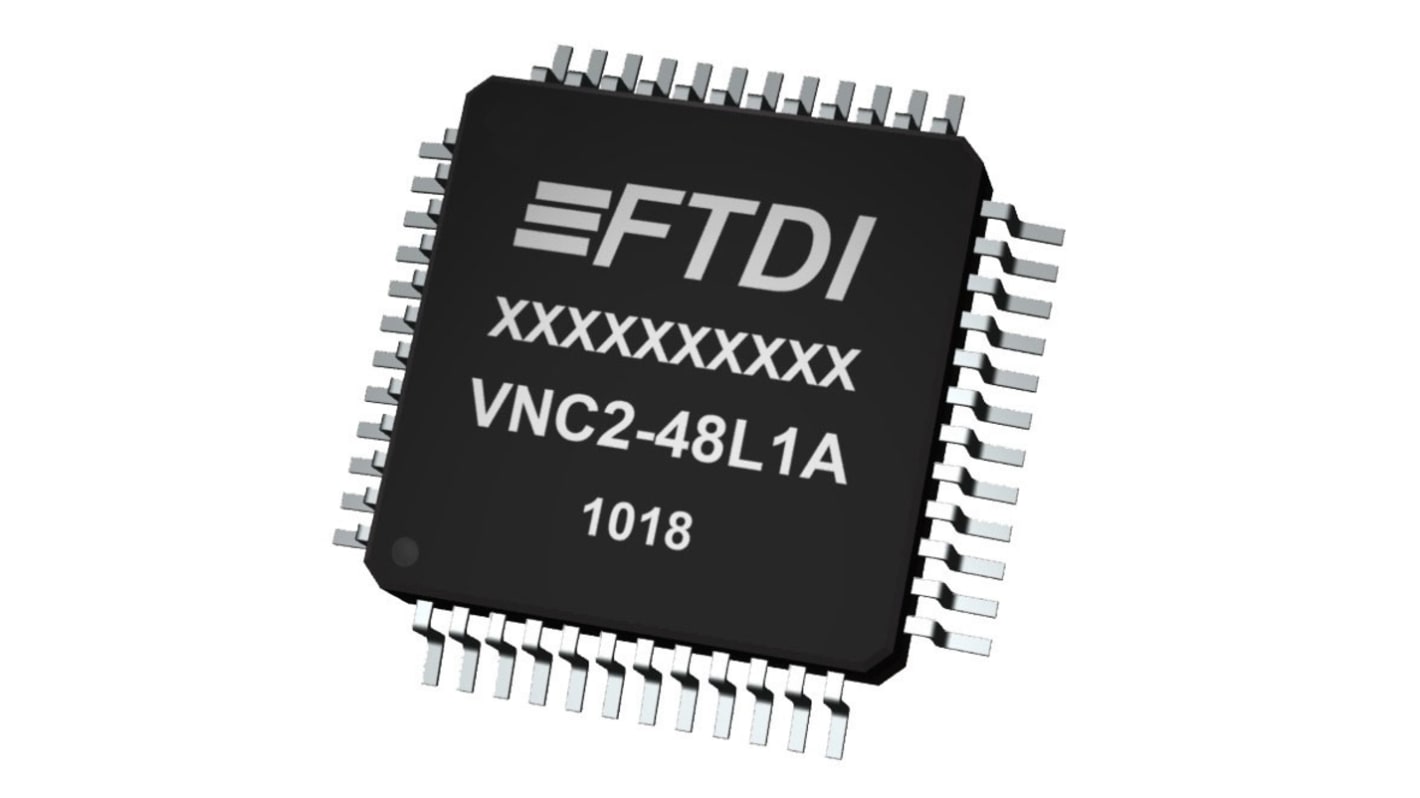

FTDI Chip VNC2-48L1C-TRAY, USB Controller, 12Mbps, USB, 3.3 V, 48-Pin LQFP

Se alla USB Interface ICs

Antal (1 fack med 250 enheter)*

11 918,00 kr

(exkl. moms)

14 897,50 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 30 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
250 +47,672 kr11 918,00 kr

*vägledande pris

RS-artikelnummer:
196-6445
Tillv. art.nr:
VNC2-48L1C-TRAY
Tillverkare / varumärke:
FTDI Chip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

FTDI Chip

Number of Transceivers

1

Data Rate

12Mbps

IC Type

Controller IC

Protocols Supported

USB

Power Supply Type

Single

ESD Protection

Yes

Typical Single Supply Voltage

3.3 V

Mounting Type

Surface Mount

Package Type

LQFP

Pin Count

48

Dimensions

7 x 7 x 1.45mm

Height

1.45mm

Length

7mm

Maximum Operating Temperature

+85 °C

Width

7mm

Minimum Operating Temperature

-40 °C

Dual USB 2.0 Host / Slave controller.
Embedded 16-bit Harvard architecture MCU core, with 256KBytes of Flash memory and 16Kbytes RAM.
2 x Full-Speed / Low-speed USB 2.0 ports supporting Host or Slave operation.
Programmable UART interface, supports up to 6MBaud transfers.
8-bit wide FIFO interface.
2 x SPI slave interfaces, 1 x SPI master interface.
PWM (Pulse Width Modulation) interface.
4 channel DMA controller, and general purpose timers.
Support for reduced power modes.
Two packages size options (32-/48-pin QFN and LQFP packages).
Backwards compatible with VNC1L with 48-pin LQFP package.
Extended temperature support (-40°C to +85°C).
Enhanced features with Vinculum Software Tool Suite
Based on royalty-free flexible ’C’ based Integrated Development Environment.
Includes compiler, drivers and RTOS kernel to support user firmware development.
Debug interface for real-time hardware based code debug.
Pre-compiled libraries for several USB classes including FAT file system support.
