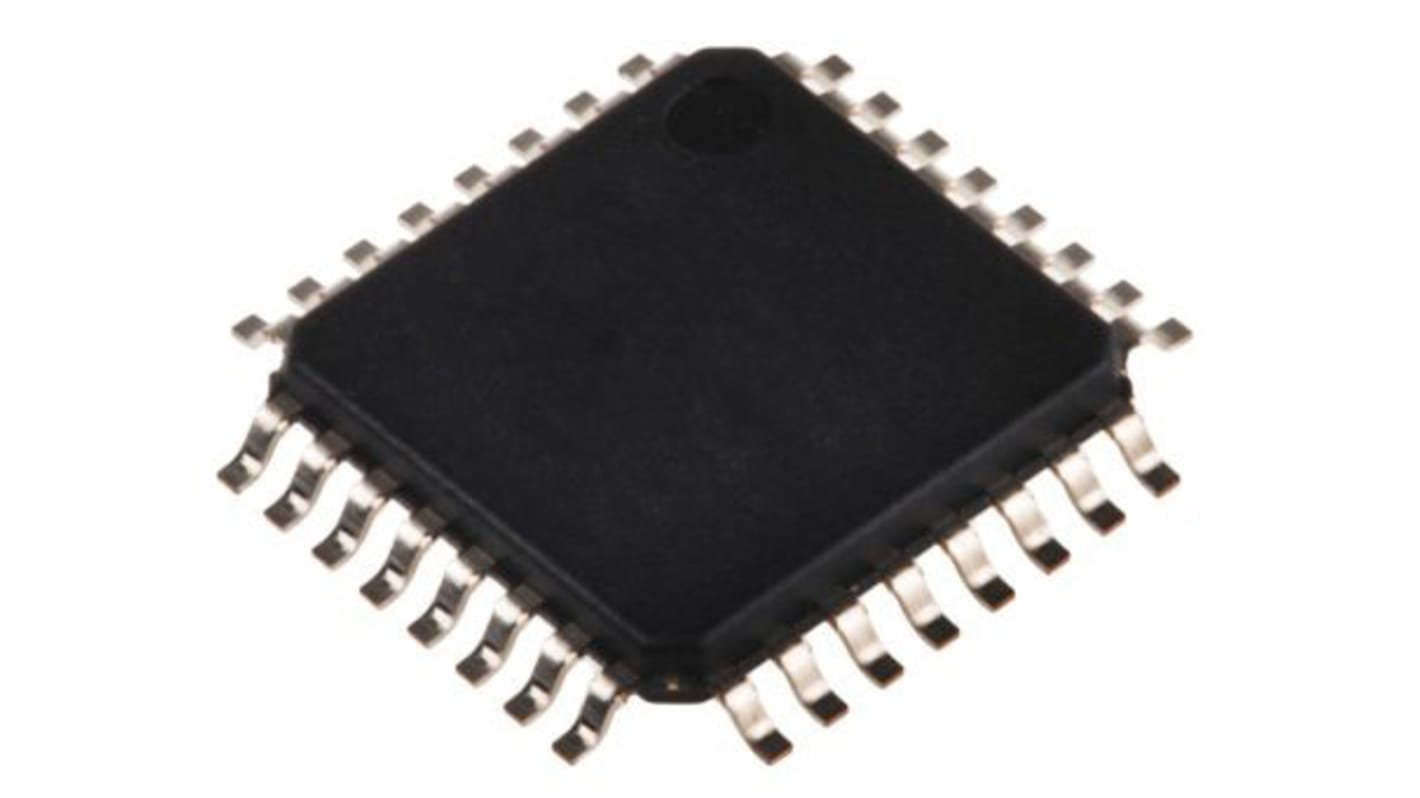

Maxim Integrated MAX3421EEHJ+T, USB Controller, USB, 3.3 V, 32-Pin TQFP
- RS-artikelnummer:
- 190-7404P
- Tillv. art.nr:
- MAX3421EEHJ+T
- Tillverkare / varumärke:
- Maxim Integrated
Mängdrabatt möjlig
Antal 10 enheter (levereras på en kontinuerlig remsa)*
1 151,40 kr
(exkl. moms)
1 439,20 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 131 enhet(er), redo att levereras
Enheter | Per enhet |
|---|---|
| 10 - 24 | 115,14 kr |
| 25 - 99 | 109,31 kr |
| 100 - 249 | 91,50 kr |
| 250 + | 90,50 kr |
*vägledande pris
- RS-artikelnummer:
- 190-7404P
- Tillv. art.nr:
- MAX3421EEHJ+T
- Tillverkare / varumärke:
- Maxim Integrated
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Maxim Integrated | |
| Protocols Supported | USB | |
| IC Type | Controller IC | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Typical Single Supply Voltage | 3.3 V | |
| Mounting Type | Surface Mount | |
| Package Type | TQFP | |
| Pin Count | 32 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand Maxim Integrated | ||
Protocols Supported USB | ||
IC Type Controller IC | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Typical Single Supply Voltage 3.3 V | ||
Mounting Type Surface Mount | ||
Package Type TQFP | ||
Pin Count 32 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Microprocessor-Independent USB Solution
Software Compatible with the MAX3420E USB Peripheral Controller with SPI Interface
Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
Integrated USB Transceiver
Firmware/Hardware Control of an Internal D+ Pullup Resistor (Peripheral Mode) and D+/D- Pulldown Resistors (Host Mode)
Programmable 3- or 4-Wire, 26MHz SPI Interface
Level Translators and VL Input Allow Independent System Interface Voltage
Internal Comparator Detects VBUS for Self-Powered Peripheral Applications
ESD Protection on D+, D-, and VBCOMP
Interrupt Output Pin (Level- or Programmable-Edge) Allows Polled or Interrupt-Driven SPI Interface
Eight General-Purpose Inputs and Eight General-Purpose Outputs
Interrupt Signal for General-Purpose Input Pins, Programmable Edge Polarity
Intelligent USB SIE
Automatically Handles USB Flow Control and Double Buffering
Handles Low-Level USB Signaling Details
Contains Timers for USB Time-Sensitive Operations so SPI Master Does Not Need to Time Events
Space-Saving Lead-Free TQFP and TQFN Packages (5mm x 5mm)
Applications
Cameras
Custom USB Devices
Desktop Routers
Embedded Systems
Instrumentation
Medical Devices
Microprocessors and DSPs
MP3 Players
PDAs
PLCs
Set-Top Boxes
Software Compatible with the MAX3420E USB Peripheral Controller with SPI Interface
Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
Integrated USB Transceiver
Firmware/Hardware Control of an Internal D+ Pullup Resistor (Peripheral Mode) and D+/D- Pulldown Resistors (Host Mode)
Programmable 3- or 4-Wire, 26MHz SPI Interface
Level Translators and VL Input Allow Independent System Interface Voltage
Internal Comparator Detects VBUS for Self-Powered Peripheral Applications
ESD Protection on D+, D-, and VBCOMP
Interrupt Output Pin (Level- or Programmable-Edge) Allows Polled or Interrupt-Driven SPI Interface
Eight General-Purpose Inputs and Eight General-Purpose Outputs
Interrupt Signal for General-Purpose Input Pins, Programmable Edge Polarity
Intelligent USB SIE
Automatically Handles USB Flow Control and Double Buffering
Handles Low-Level USB Signaling Details
Contains Timers for USB Time-Sensitive Operations so SPI Master Does Not Need to Time Events
Space-Saving Lead-Free TQFP and TQFN Packages (5mm x 5mm)
Applications
Cameras
Custom USB Devices
Desktop Routers
Embedded Systems
Instrumentation
Medical Devices
Microprocessors and DSPs
MP3 Players
PDAs
PLCs
Set-Top Boxes
