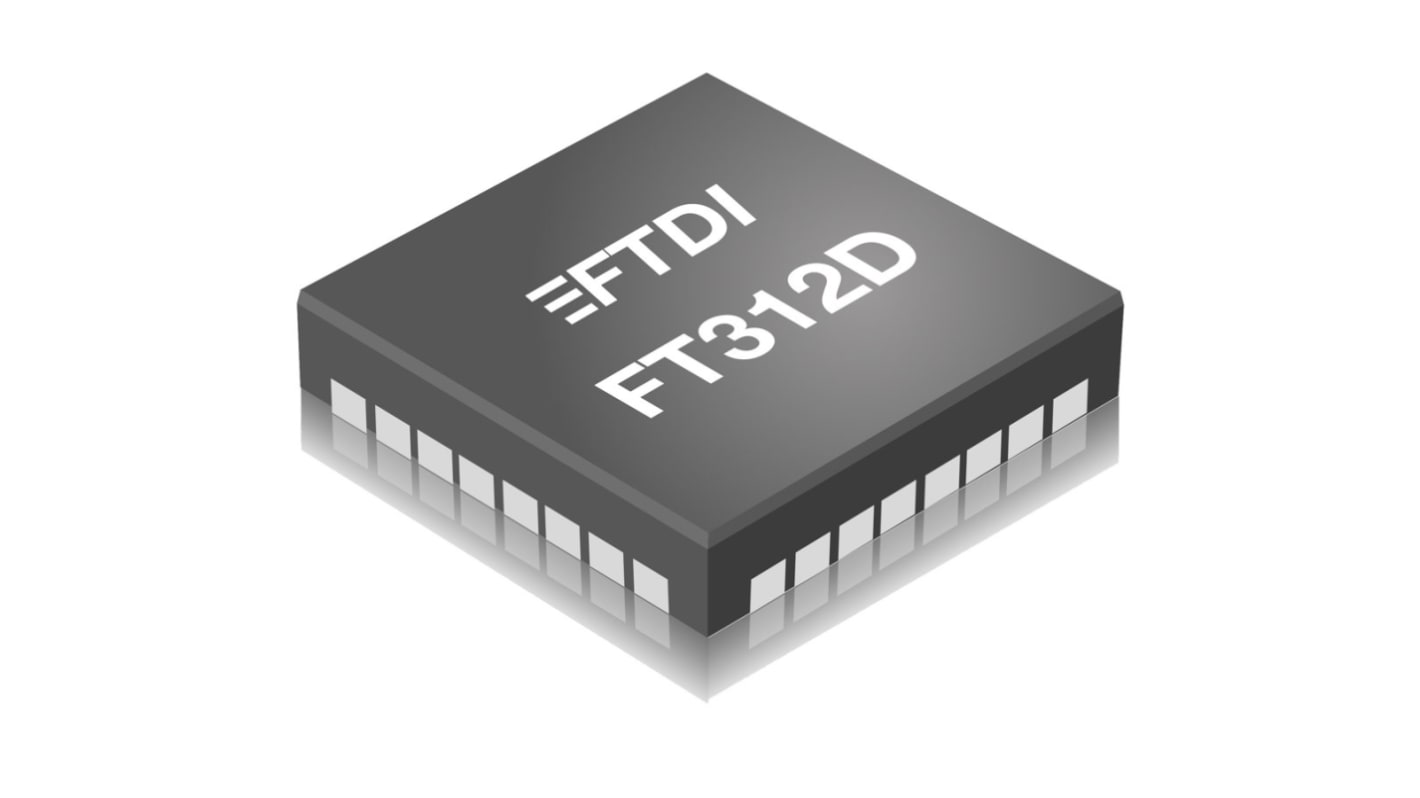

FTDI Chip FT312D-32Q1C-T, Controller IC, 1-Channel, 3.63 V, USB 2.0, 3.3 V, 32-Pin QFN

RS-artikelnummer:: 196-6427
Tillv. art.nr:: FT312D-32Q1C-T
Tillverkare / varumärke:: FTDI Chip

FTDI Chip FT312D-32Q1C-T, Controller IC, 1-Channel, 3.63 V, USB 2.0, 3.3 V, 32-Pin QFN

Antal (1 förpackning med 2 enheter)*

73,56 kr

(exkl. moms)

91,96 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

538 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per förpackning*
2 +	36,78 kr	73,56 kr

*vägledande pris

RS-artikelnummer:: 196-6427
Tillv. art.nr:: FT312D-32Q1C-T
Tillverkare / varumärke:: FTDI Chip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	FTDI Chip
	Number of Transceivers	1
	Product Type	Controller IC
	Sub Type	Controller
	USB Specification	USB 2.0
	Power Supply Type	Single
	ESD Protection	Yes
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	3.63V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	32
	Supported Protocols	USB 2.0
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Series	FT312D
	Length	7mm
	Height	0.85mm
	Width	7 mm
	Automotive Standard	No
	Supply Current	25mA

	Välj alla
	Brand FTDI Chip
	Number of Transceivers 1
	Product Type Controller IC
	Sub Type Controller
	USB Specification USB 2.0
	Power Supply Type Single
	ESD Protection Yes
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 3.63V
	Mount Type Surface
	Package Type QFN
	Pin Count 32
	Supported Protocols USB 2.0
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Series FT312D
	Length 7mm
	Height 0.85mm
	Width 7 mm
	Automotive Standard No
	Supply Current 25mA

Datasheet FT312D-32Q1C-T

The FT312D provides a bridge between peripheral hardware/systems and an Android platform with a USB device port. The FT312D will enumerate USB and Android Open Accessory and provide a UART interface for peripheral integration. Note, proper compatibility requires Android Open Accessory Mode, available in Android platforms 3.1 onwards.

USB 2.0 Full Speed Host

USB to UART bridge

USB ERROR indicator pin

Single power supply operation at 3.3V

Internal 1.8V LDO regulator

Internal memory for storing configurable strings – allows Android to automatically detect the device and application

Extended operating temperature range : -40°C to 85°C

Available in Pb-free QFN-32 and LQFP-32 packages.

Applications

Connect an Android device to a motor controller

Motor/robotic device control

Connect an Android device to an external microcontroller

Debug

Firmware upgrades

Connect an Android device to external sensors

Fleet management

Connect an Android device to external storage

Data logging

Connect an Android device to a printer

Print photos from a phone or tablet
