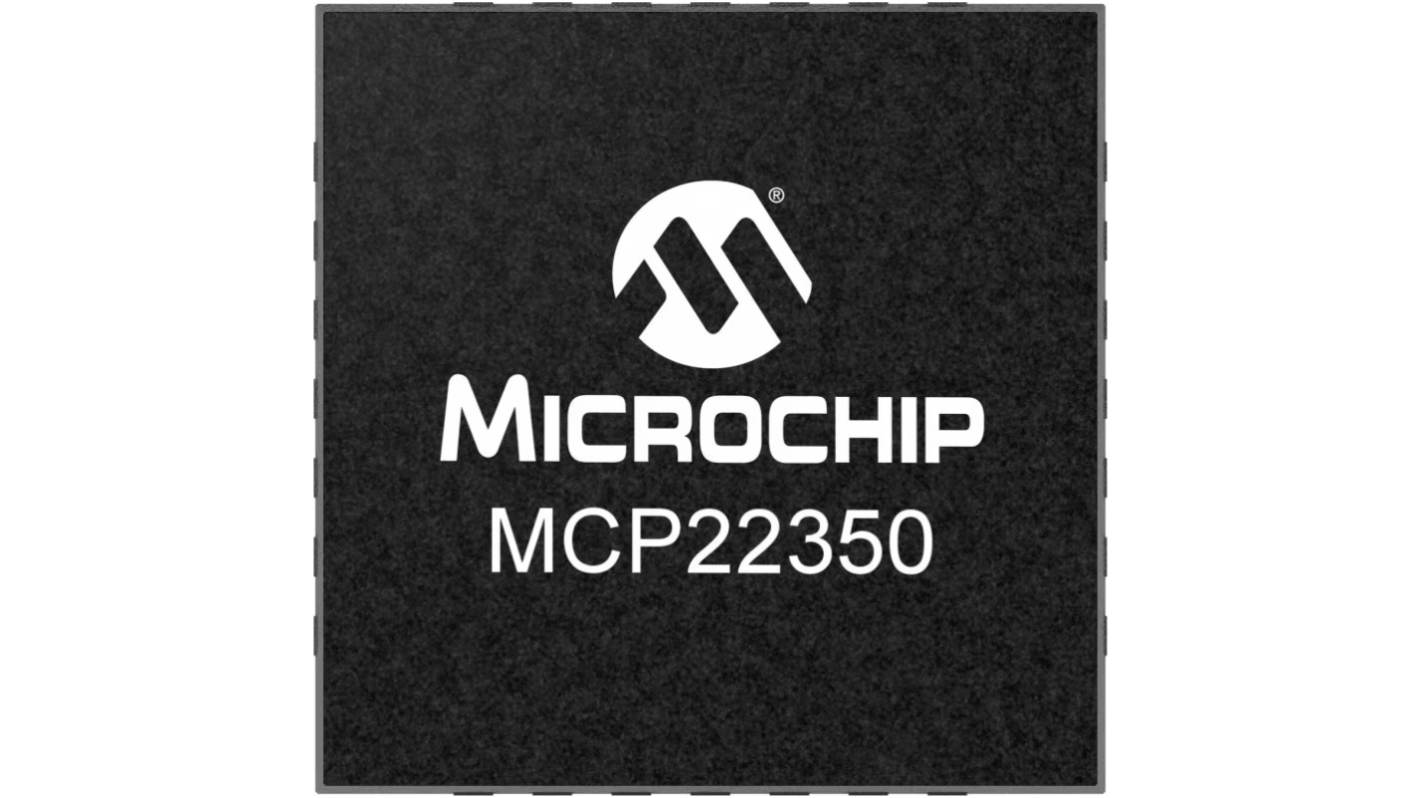

Microchip MCP22350T-2I/Q8X, USB Controller, 5 V, USB Type C, 3.3 V, 28-Pin VQFN

RS-artikelnummer:: 302-617
Tillv. art.nr:: MCP22350T-2I/Q8X
Tillverkare / varumärke:: Microchip

Microchip MCP22350T-2I/Q8X, USB Controller, 5 V, USB Type C, 3.3 V, 28-Pin VQFN

Mängdrabatt möjlig

Antal (1 längd med 5 enheter)*

60,70 kr

(exkl. moms)

75,90 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

5 000 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Längd*
5 - 45	12,14 kr	60,70 kr
50 - 95	11,536 kr	57,68 kr
100 +	10,708 kr	53,54 kr

*vägledande pris

RS-artikelnummer:: 302-617
Tillv. art.nr:: MCP22350T-2I/Q8X
Tillverkare / varumärke:: Microchip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Product Type	USB Controller
	Sub Type	Companion PD Controller
	USB Specification	USB Type C, 3.1
	Power Supply Type	Dual
	ESD Protection	No
	Maximum Supply Voltage	5V
	Minimum Supply Voltage	3.3V
	Package Type	VQFN
	Pin Count	28
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB Type C
	Maximum Operating Temperature	85°C
	Height	0.9mm
	Series	MCP22350
	Standards/Approvals	USB Power Delivery 3.1, USB Type-C, DisplayPort
	Width	4 mm
	Length	4mm
	Automotive Standard	No
	Supply Current	15mA

	Välj alla
	Brand Microchip
	Product Type USB Controller
	Sub Type Companion PD Controller
	USB Specification USB Type C, 3.1
	Power Supply Type Dual
	ESD Protection No
	Maximum Supply Voltage 5V
	Minimum Supply Voltage 3.3V
	Package Type VQFN
	Pin Count 28
	Minimum Operating Temperature -40°C
	Supported Protocols USB Type C
	Maximum Operating Temperature 85°C
	Height 0.9mm
	Series MCP22350
	Standards/Approvals USB Power Delivery 3.1, USB Type-C, DisplayPort
	Width 4 mm
	Length 4mm
	Automotive Standard No
	Supply Current 15mA

Datasheet - MCP22350T-2I/Q8X

The Microchip Small Form Factor USB Type-C Power Delivery (PD) Port Controller designed to adhere to the USB Type-C Cable and Connector Specification and USB Power Delivery 3.1 Specification. It provides cable plug orientation and detection for a USB Type-C receptacle and implements baseband communication with a partner USB Type-C device via the integrated USB Power Delivery 3.1 MAC. It is designed to function as a Companion Power Delivery Controller to an external Microchip MCU/SoC using the integrated SPI interface.

SPI Interface for CPU or SoC Communication

USB Type C Alternate Mode Support

Dual Role Port and Fast Role Swap Support with DRP offload mode

Industrial Temperature Support

8 Configurable General Purpose Input Output Pins

With Dead Battery Support

Tape and Reel packaging
