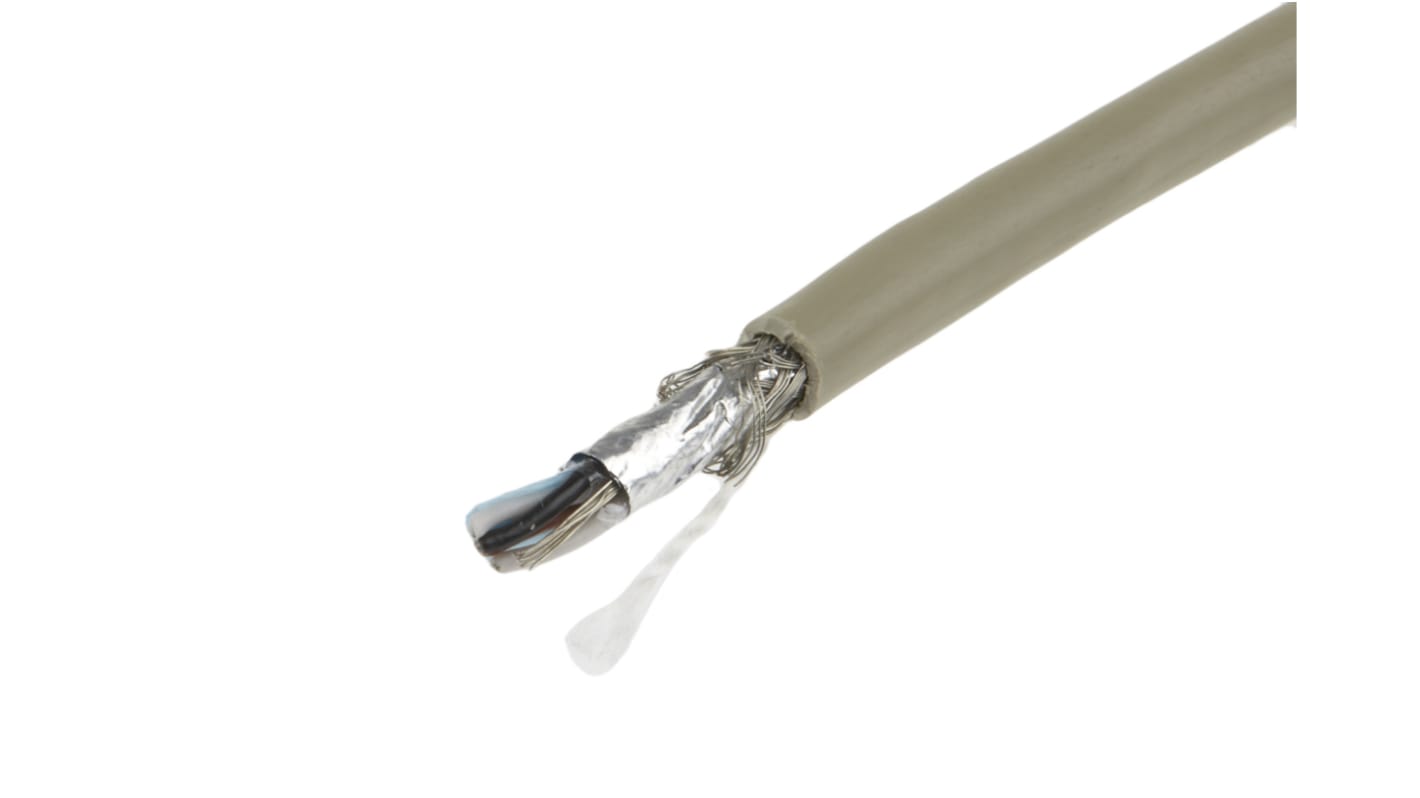

Alpha Wire ProTekt Series Data Cable, 2 Pairs, 4 Cores, 0.23 mm², Screened, 24 AWG, 50m, Foil and Braid Shield

Se kategorien

Antal (1 rulle med 50 meter)*

1 344,29 kr

(exkl. moms)

1 680,36 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 10 enhet(er) är redo att levereras
  • Plus 1 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar)
Per rulle
Per meter*
1 +1 344,29 kr26,886 kr

*vägledande pris

RS-artikelnummer:
740-4932
Tillv. art.nr:
B963024 GE321
Tillverkare / varumärke:
Alpha Wire
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Alpha Wire

Number of Pairs

2

Cross Sectional Area

0.23 mm²

Number of Cores

4

American Wire Gauge

24 AWG

Screened/Unscreened

Screened

Length

50m

Shield Type

Foil and Braid

Sheath Colour

Grey

Outer Diameter

6.07mm

Outer Sheath Material

PVC

Cable Shape

Twisted Pair

Characteristic Impedance

64 Ω

Minimum Operating Temperature

-30°C

Voltage Rating

300 V

Standards Met

CE, CSA Certified, UL

Series

ProTekt

Core Strands

7/32 AWG

Maximum Operating Temperature

+105°C

Fire Behaviour

Flame Retardant

Belden ProTekt Series Data Cable, 0.23mm² Cross Sectional Area, 100m Length - B963024 GE033


This data cable is designed for high-performance communication in various environments. It features a twisted pair construction, composed of two pairs and four cores, with an outer diameter of 6.07 mm. The 100 m length adds adaptability for different installations, making it suitable for diverse applications within the automation and electronics sectors.

Features & Benefits


• Provides effective shielding with a screened design to reduce interference
• Equipped with a flame retardant feature enhancing safety
• Constructed from 24 AWG cable, ensuring optimal conductivity
• Features a durable PVC outer sheath for environmental protection
• Low impedance of 64 Ω enables efficient signal transmission
• Meets essential electrical cable standards for certified reliability

Applications


• Used in network installations for data transmission
• Employed in automation systems requiring reliable communication
• Utilised in electrical assembly for industrial control systems
• Integrated with equipment needing high-performance data connectivity

What operating temperature range can this cable withstand?


The cable operates effectively within a temperature range of -30°C to +105°C, making it suitable for various environmental conditions.

How many twists per foot does this cable feature?


It features a minimum of 12 twists per foot for each pair and 8 twists per foot for the overall cable assembly, ensuring signal integrity.

What are the specific certifications associated with this product?


It complies with CE, CSA, and UL standards, ensuring adherence to recognised electrical safety and performance protocols.

What type of insulation is used in this cable?


The insulation is made from semi-rigid PVC with a wall thickness of approximately 0.010 inches, providing robust protection for the conductors.

What is the maximum pull tension for this cable?


The maximum pull tension for this cable is 20.9 lbs, which helps maintain its integrity during installation.
