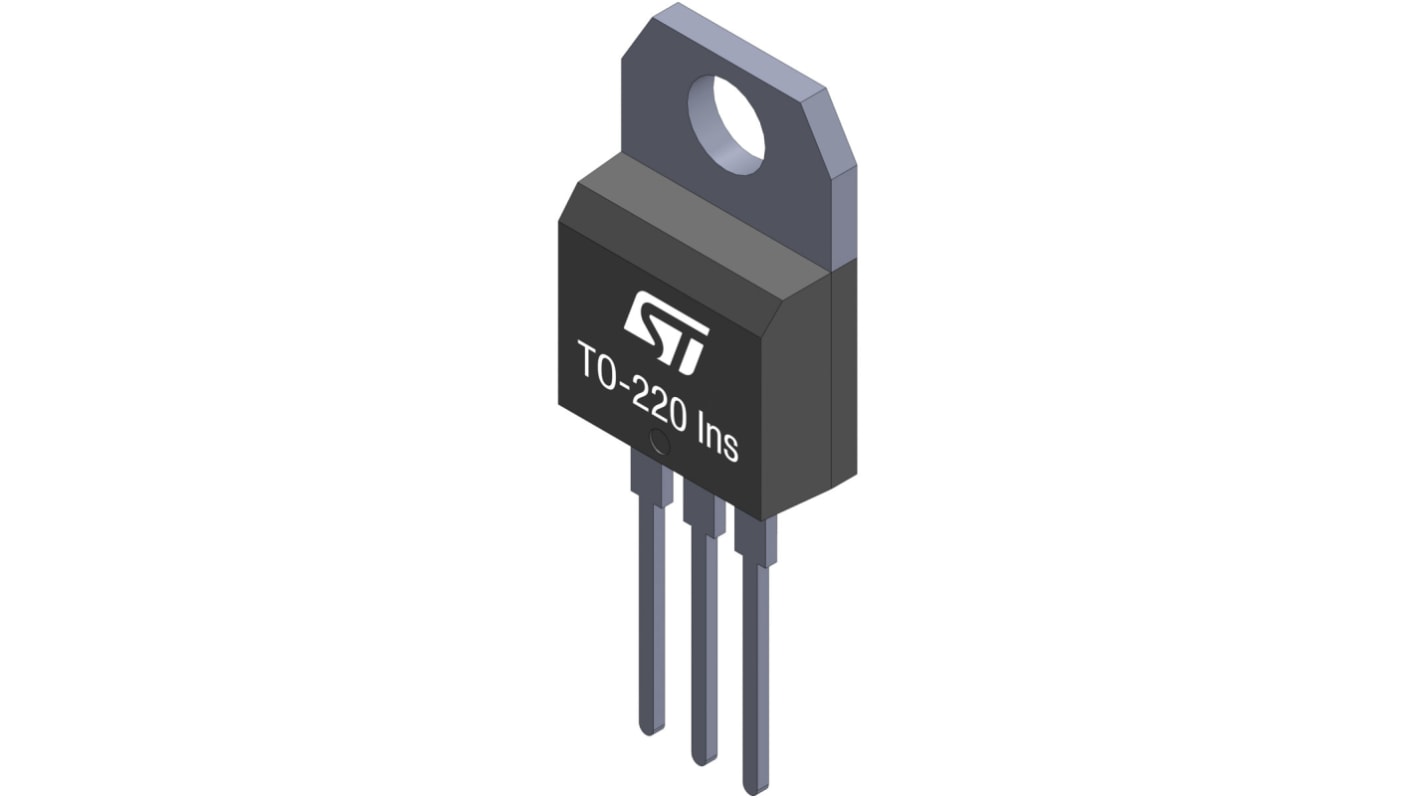

STMicroelectronics Through Hole, 3-pin, TRIAC, 700V

Se alla TRIACs
Mängdrabatt möjlig

Antal (1 förpackning med 5 enheter)*

143,81 kr

(exkl. moms)

179,76 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 5 enhet(er) från den 26 januari 2026
  • Dessutom levereras 500 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
5 - 528,762 kr143,81 kr
10 +27,328 kr136,64 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
188-8485
Tillv. art.nr:
BTA20-700BWRG
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Rated Average On-State Current

20A

Mounting Type

Through Hole

Package Type

TO-220AB

Surge Current Rating

210A

Pin Count

3

Repetitive Peak Forward Blocking Voltage

700V

Maximum Holding Current

75mA

Dimensions

10.4 x 4.6 x 15.9mm

Length

10.4mm

Width

4.6mm

Height

15.9mm

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

The BTA20 Triacs use high performance glass passivated chip technology. The Snubberless concept offers suppression of the RC network and is suitable for applications such as phase control and static switching on inductive or resistive load.
Thanks to their clip assembly technique, the BTA20 Triacs provide a superior performance in surge current handling capabilities.
By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V rms)

IT(RMS)= 20 A
VDRM, VRRM= 600 and 700 V
IGT (Q1)(max) = 35 and 50 mA
Applications
Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc.or for phase control operation in light dimmers, motor speed controllers, and silmilar
The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS)
