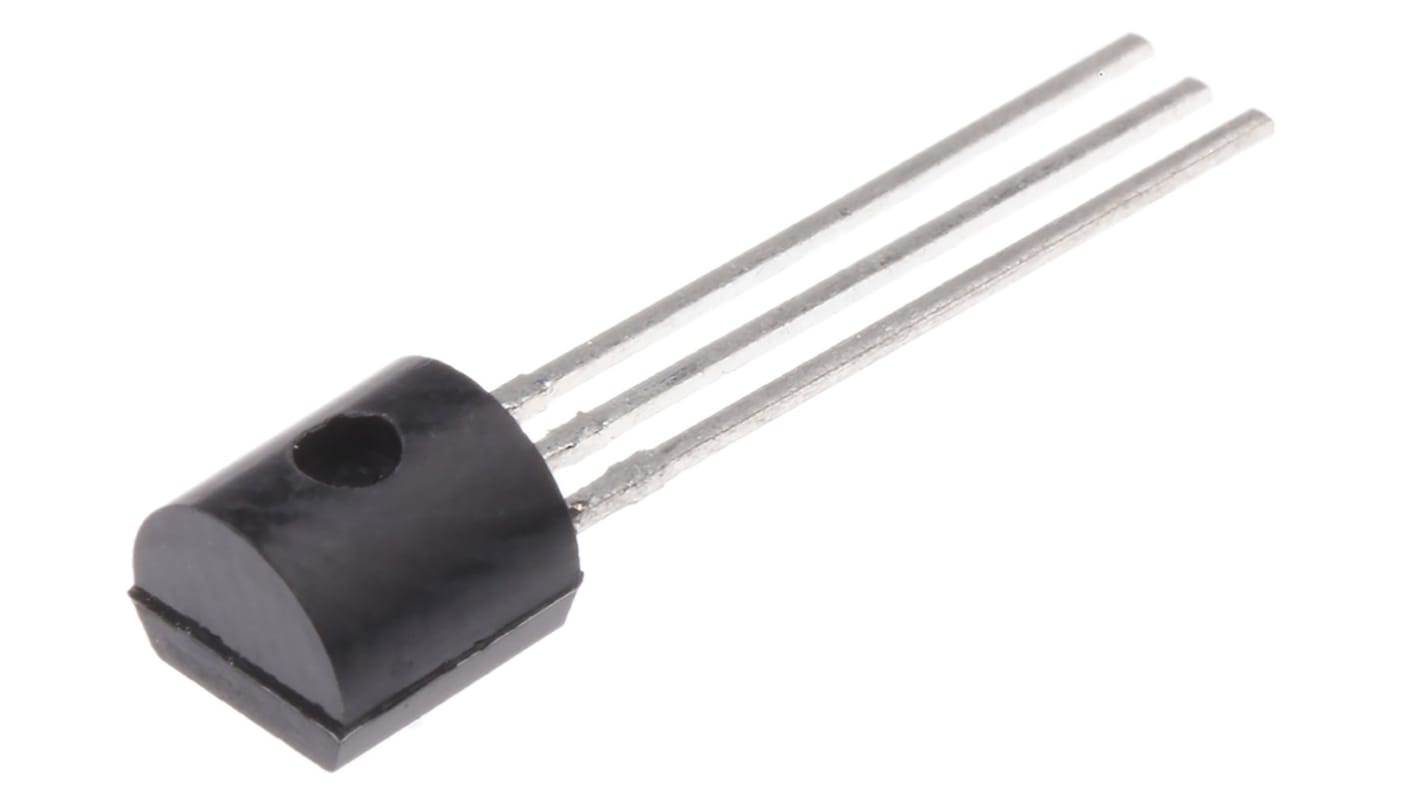

Renesas Electronics Through Hole, 3-pin, TRIAC, Gate Trigger 1.5V 800V
- RS-artikelnummer:
- 124-3657
- Tillv. art.nr:
- BCR3AM-14B#B00
- Tillverkare / varumärke:
- Renesas Electronics
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 124-3657
- Tillv. art.nr:
- BCR3AM-14B#B00
- Tillverkare / varumärke:
- Renesas Electronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Renesas Electronics | |
| Rated Average On-State Current | 3A | |
| Mounting Type | Through Hole | |
| Package Type | TO-92 | |
| Maximum Gate Trigger Current | 30mA | |
| Surge Current Rating | 30A | |
| Pin Count | 3 | |
| Maximum Gate Trigger Voltage | 1.5V | |
| Repetitive Peak Forward Blocking Voltage | 800V | |
| Dimensions | 5 x 3.6 x 5mm | |
| Length | 5mm | |
| Width | 3.6mm | |
| Height | 5mm | |
| Repetitive Peak Off-State Current | 2mA | |
| Maximum Operating Temperature | +150 °C | |
| Peak On-State Voltage | 1.6V | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand Renesas Electronics | ||
Rated Average On-State Current 3A | ||
Mounting Type Through Hole | ||
Package Type TO-92 | ||
Maximum Gate Trigger Current 30mA | ||
Surge Current Rating 30A | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 1.5V | ||
Repetitive Peak Forward Blocking Voltage 800V | ||
Dimensions 5 x 3.6 x 5mm | ||
Length 5mm | ||
Width 3.6mm | ||
Height 5mm | ||
Repetitive Peak Off-State Current 2mA | ||
Maximum Operating Temperature +150 °C | ||
Peak On-State Voltage 1.6V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- JP
TRIAC, Renesas Electronics
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
