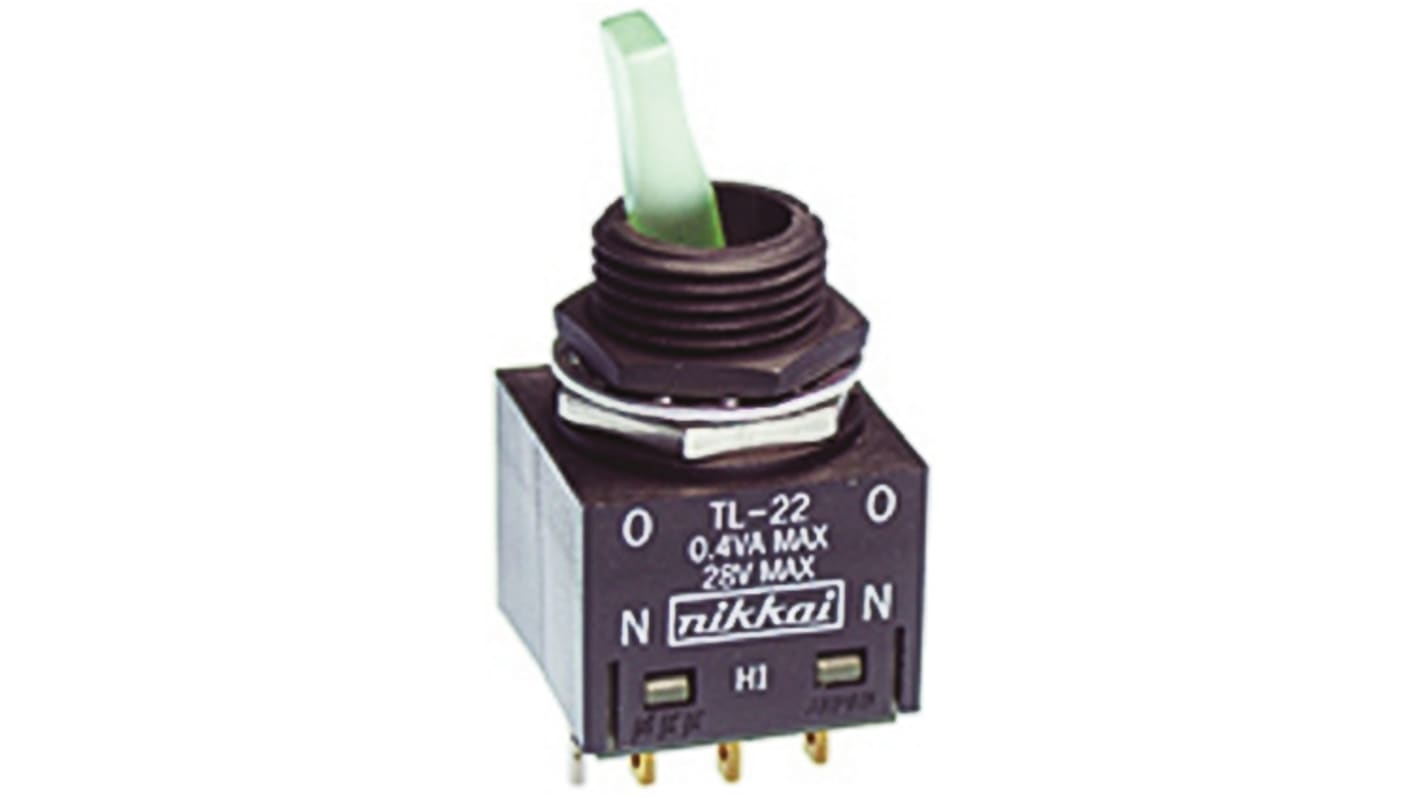

NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal
- RS-artikelnummer:
- 453-7972
- Tillv. art.nr:
- TL-22H1SKMMG4
- Tillverkare / varumärke:
- NKK Switches
Price Varje**
193,97 kr
(exkl. moms)
242,46 kr
(inkl. moms)
* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.
FRI frakt på alla onlineordrar över 500,00 kr
Enheter | Per enhet |
|---|---|
| 1 - 49 | 193,97 kr |
| 50 - 99 | 156,33 kr |
| 100 + | 127,89 kr |
**vägledande pris
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
Varje
153,36 kr
(exkl. moms)
191,70 kr
(inkl. moms)
Varje
106,40 kr
(exkl. moms)
133,00 kr
(inkl. moms)
Varje
156,56 kr
(exkl. moms)
195,70 kr
(inkl. moms)
- RS-artikelnummer:
- 453-7972
- Tillv. art.nr:
- TL-22H1SKMMG4
- Tillverkare / varumärke:
- NKK Switches
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Contact Current Rating | 100 mA @ 28 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| IP Rating | IP65 | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 12.5mm | |
| Actuator Length | 11mm | |
| Actuator Material | PC | |
| Contact Resistance | 20mΩ | |
| Panel Cut Out Size | 12.5mm | |
| Contact Material | Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable) | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +55°C | |
| Mechanical Life | 50000Operations | |
| Operating Temperature Range | -10 → +55°C | |
Välj alla | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration DPDT | ||
Switch Operation On-On | ||
Contact Current Rating 100 mA @ 28 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
IP Rating IP65 | ||
Illuminated Yes | ||
Panel Cut Out Diameter 12.5mm | ||
Actuator Length 11mm | ||
Actuator Material PC | ||
Contact Resistance 20mΩ | ||
Panel Cut Out Size 12.5mm | ||
Contact Material Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable) | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +55°C | ||
Mechanical Life 50000Operations | ||
Operating Temperature Range -10 → +55°C | ||
