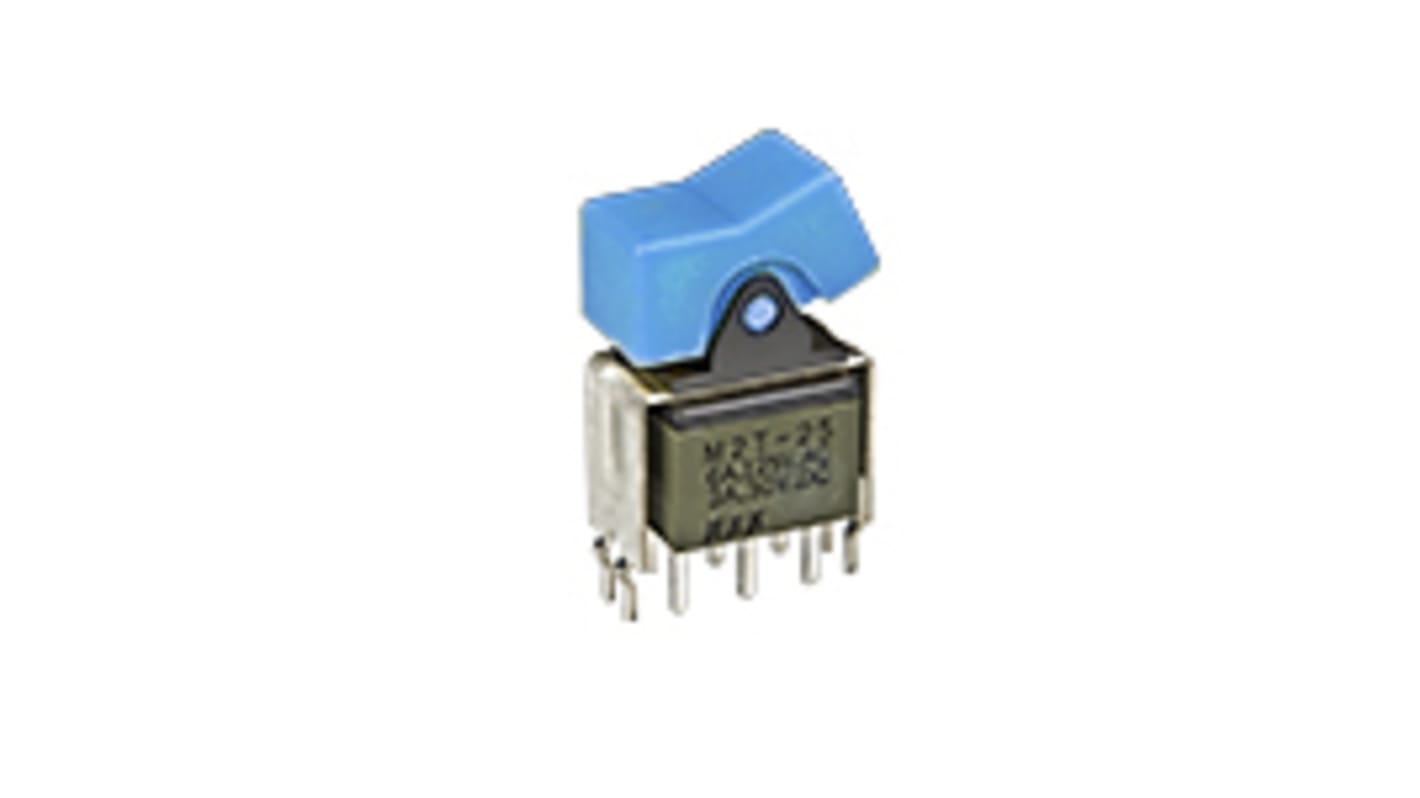

NKK Switches Toggle Switch, PCB Mount, Latching, DPDT, Through Hole Terminal, 125V ac

Se alla Toggle Switches
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
181-3636
Tillv. art.nr:
M2T22TXW13
Tillverkare / varumärke:
NKK Switches
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

NKK Switches

Contact Configuration

DPDT

Switch Operation

Latching

Contact Current Rating

6 A

Mounting Type

PCB

Terminal Type

Through Hole

Illuminated

No

Voltage Rating

125V ac

Contact Material

Silver Alloy (Movable & Stationary)

Contact Resistance

10mΩ

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-30°C

Operating Temperature Range

-30 → +85°C

COO (Country of Origin):
CN
NKK's full line of toggles features both PC board and panel mounting options available with a full array of actuator options and terminations to meet virtually any application. Subminiature and ultra-miniature to dual seal waterproof and high-capacity toggle switches are offered. Matching indicators are available. Designed to perform and withstand extreme environments for critical applications such as construction equipment, transportation, and medical equipment. Our waterproof toggle switch is great for marine applications.

Process Sealed Miniature Toggles

6A Power Level & 0.4VA Logic Level
Anti-jamming actuator design protects against mechanism damage from downward force on toggle.
Single unit construction of the bushing and top of the housing gives protection from cleaning fluids or other fluids.
O-ring surrounding actuator at top of bushing interior prevents liquids from reaching switch mechanism
