Time Electronics 1090 Temperature Calibrator, With RS Calibration

RS-artikelnummer:: 410-2150
Tillv. art.nr:: 1090
Tillverkare / varumärke:: Time Electronics

Time Electronics 1090 Temperature Calibrator, With RS Calibration

2 I lager för leverans inom 3-5 arbetsdagar

Nästa dag-leverans inte möjlig

Lagt till varukorgen

Pris (ex. moms) Varje

21 559,60 kr

(exkl. moms)

26 949,50 kr

(inkl. moms)

Enheter	Per unit
1 +	21 559,60 kr

RS-artikelnummer:: 410-2150
Tillv. art.nr:: 1090
Tillverkare / varumärke:: Time Electronics

Datablad

Lagstiftning och ursprungsland

RoHS-status: Inte relevant

COO (Country of Origin):: GB

Produktdetaljer

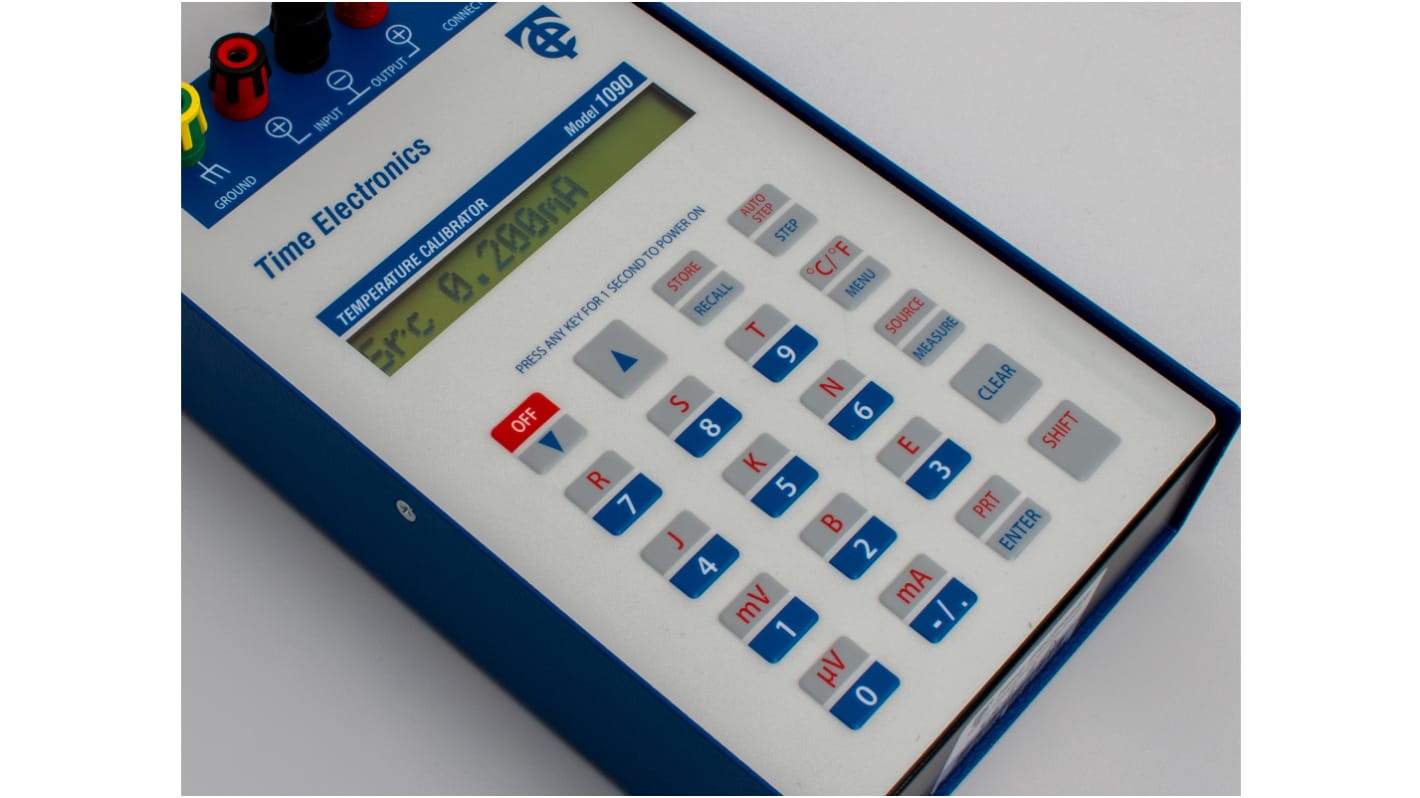

Temperature & mV/mA Calibrator 1090

A high performance portable instrument combining source and measure functions for thermocouples, Pt100, mV and mA.

Measures/simulates 8 thermocouple types J, K, T, R, S, B, N, E: Pt100, mV and mA
Displays in selectable units in °C/°F, uV/m
Large backlit super-twist LCD display, 7.5 mm digits
Sealed membrane keypad
Automatic or manual cold junction compensation
Memory storage of frequently used values
Sturdy carrying case with test lead compartment
Equivalent converted uV/Pt 100 resistance can be displayed on both source & measure
Rechargeable battery 50+ hrs use. Auto power save button
Auto step function with configurable step time
24V process loop drive mode

Note

Pt100 simulation: 14 set values to within ±0.1% of DIN43760, -100, -50, -20, 0, 20, 50, 100, 200, 300, 400, 500, 600, 700, 800 deg C.Pt 100 Measure: 20Ω (-200 °C) to 350Ω (700 °C) accuracy:±0.5%

Supplied with

carry case and mains recharger

Specifikationer

Attribute	Value
Calibrator Type	Thermocouple Calibrator
Resolution	0.1 °C, 0.1 °F
Best Accuracy	0.2 °C
Thermocouple Type	B, E, J, K, N, R, S, T
Temperature Scale	Centigrade, Fahrenheit
B Type Thermocouple Maximum Temperature	+1800°C
Calibrated	RSCAL
B Type Thermocouple Minimum Temperature	110°C
E Type Thermocouple Maximum Temperature	+400°C
E Type Thermocouple Minimum Temperature	50°C
J Type Thermocouple Maximum Temperature	580°C
K Type Thermocouple Maximum Temperature	+750°C
K Type Thermocouple Minimum Temperature	-200°C
Model Number p	1090
K Type Thermocouple Temperature Range	-200 ￫ +750 °C
E Type Thermocouple Temperature Range	-50 ￫ +400 °C
Weight	1.2kg
Height	235mm
S Type Thermocouple Temperature Range	-50 ￫ +1750 °C
Dimensions	75 x 150 x 235mm
R Type Thermocouple Temperature Range	+50 ￫ +1750 °C
J Type Thermocouple Temperature Range	-200 ￫ +580 °C
T Type Thermocouple Temperature Range	-200 ￫ +400 °C
B Type Thermocouple Temperature Range	+110 ￫ +1800 °C
Length	75mm
Width	150mm
