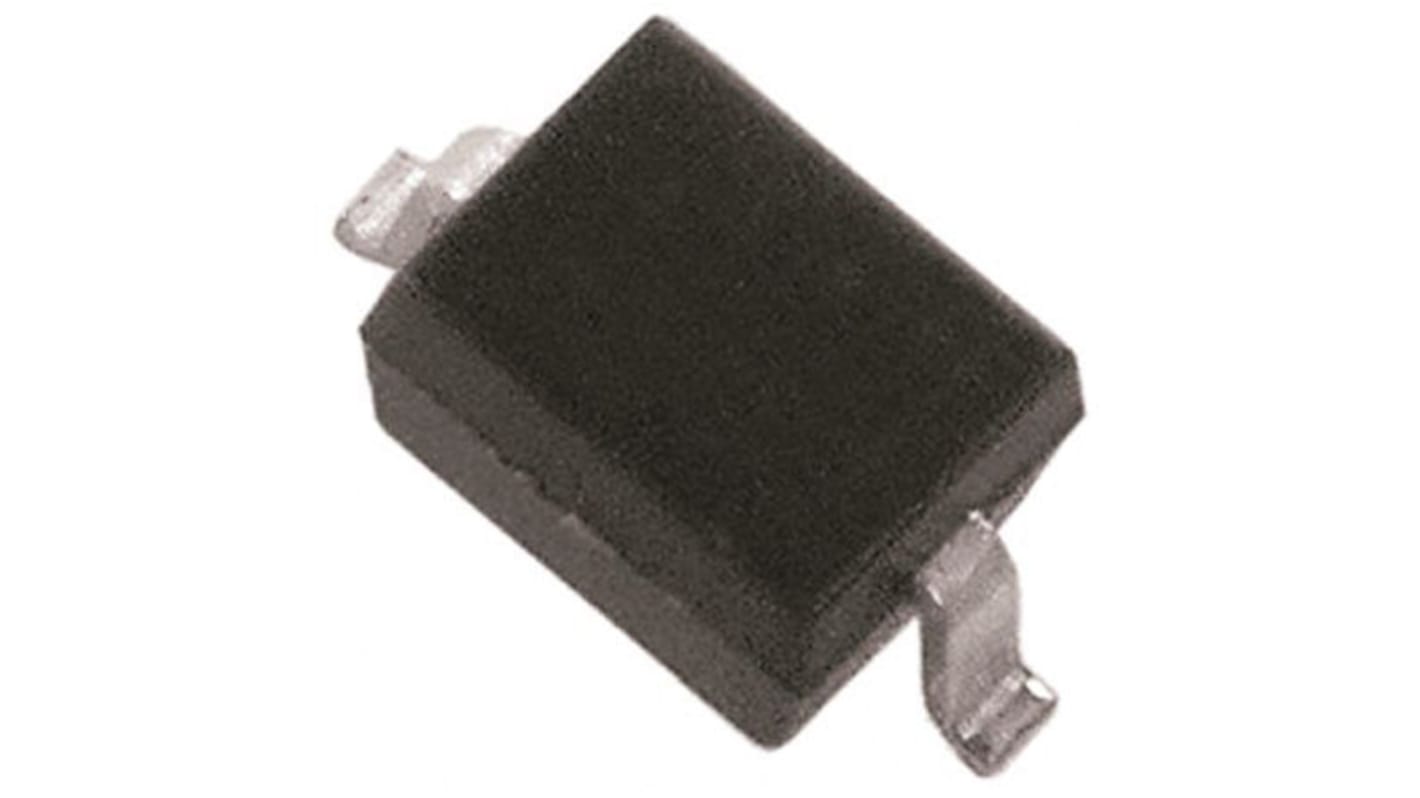

Vishay Silicon Junction, Single, 150 mA, 2-Pin 50 V SOD-123

RS-artikelnummer:: 145-2081
Tillv. art.nr:: 1N4151WS-G3-08
Tillverkare / varumärke:: Vishay

Vishay Silicon Junction, Single, 150 mA, 2-Pin 50 V SOD-123

Mängdrabatt möjlig

Antal (1 rulle med 3000 enheter)*

1 704,00 kr

(exkl. moms)

2 130,00 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

Leverans från den 27 november 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per rulle*
3000 - 3000	0,568 kr	1 704,00 kr
6000 - 12000	0,539 kr	1 617,00 kr
15000 +	0,511 kr	1 533,00 kr

*vägledande pris

RS-artikelnummer:: 145-2081
Tillv. art.nr:: 1N4151WS-G3-08
Tillverkare / varumärke:: Vishay

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Vishay
	Product Type	Silicon Junction
	Diode Configuration	Single
	Maximum Forward Current If	150mA
	Sub Type	Silicon Junction
	Mount Type	Surface
	Package Type	SOD-123
	Pin Count	2
	Maximum Peak Reverse Repetitive Voltage Vrrm	50V
	Maximum Power Dissipation Pd	410W
	Peak Non-Repetitive Forward Surge Current Ifsm	2A
	Minimum Operating Temperature	-55°C
	Peak Reverse Recovery Time trr	4ns
	Maximum Forward Voltage Vf	1V
	Maximum Operating Temperature	150°C
	Length	2.85mm
	Height	1.25mm
	Width	1.7 mm
	Standards/Approvals	No
	Automotive Standard	No

	Välj alla
	Brand Vishay
	Product Type Silicon Junction
	Diode Configuration Single
	Maximum Forward Current If 150mA
	Sub Type Silicon Junction
	Mount Type Surface
	Package Type SOD-123
	Pin Count 2
	Maximum Peak Reverse Repetitive Voltage Vrrm 50V
	Maximum Power Dissipation Pd 410W
	Peak Non-Repetitive Forward Surge Current Ifsm 2A
	Minimum Operating Temperature -55°C
	Peak Reverse Recovery Time trr 4ns
	Maximum Forward Voltage Vf 1V
	Maximum Operating Temperature 150°C
	Length 2.85mm
	Height 1.25mm
	Width 1.7 mm
	Standards/Approvals No
	Automotive Standard No

COO (Country of Origin):: CN

Glass Passivated Junction Fast Switching Plastic Rectifier

Features

• Superectifier structure for high reliability condition

• Cavity-free glass-passivated junction

• Fast switching for high efficiency

• Low leakage current, typical IR less than 0.2 μA

• High forward surge capability

• Solder dip 275 °C max. 10 s, per JESD 22-B106

Typical Applications

High voltage rectification of G2 grid CRT and TV, snubber

circuit of Camera flash.

Mechanical Data

Case: DO-204AL, molded epoxy over glass body

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals: Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity: Color band denotes cathode end

Vishay Silicon Junction, Single, 150 mA, 2-Pin 50 V SOD-123

GRATIS leverans för online beställningar över 500,00 kr

Glass Passivated Junction Fast Switching Plastic Rectifier

Diodes and Rectifiers, Vishay Semiconductor
