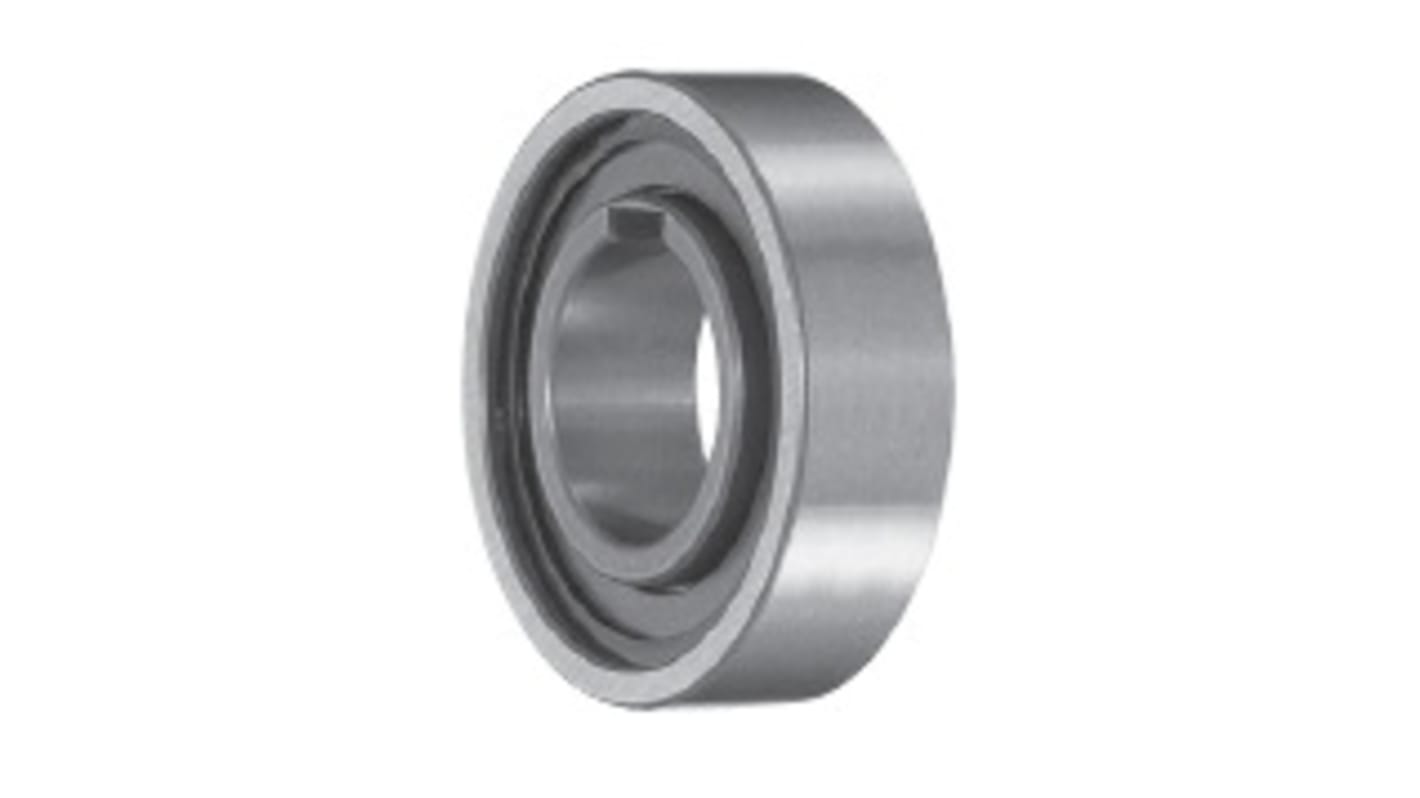

Tsubaki TSS15 Cam Clutch 15mm I.D., 35mm O.D., 11mm Race Width

Se alla Sprag Clutch Bearings

Antal (1 enhet)*

1 475,45 kr

(exkl. moms)

1 844,31 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Begränsat lager
  • 2 kvar, redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +1 475,45 kr

*vägledande pris

RS-artikelnummer:
184-5761
Tillv. art.nr:
TSS15
Tillverkare / varumärke:
Tsubaki
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Tsubaki

Inside Diameter

15mm

Outside Diameter

35mm

Torque

22Nm

Race Width

11mm

Series

TSS

Over-running Speed

1800 (Outer Race) RPM, 3500 (Inner Race) RPM

Keyway

Inner Race

RoHS-status: Undantagen

COO (Country of Origin):
JP
TSS Series Cam Clutch is designed for press fit installation with outside dimensions the same as the 62 Series ball bearing. As a sprag clutch, higher torque capacities are often higher than a similar ramp & roller design. This design provides easy handling and installation, most often with a Series 62 ball bearing located next to the TSS Cam Clutch. The TSS Series is ideal for applications that require high speed inner race overrunning in a very compact package. This series ships pre-lubricated with oil.
