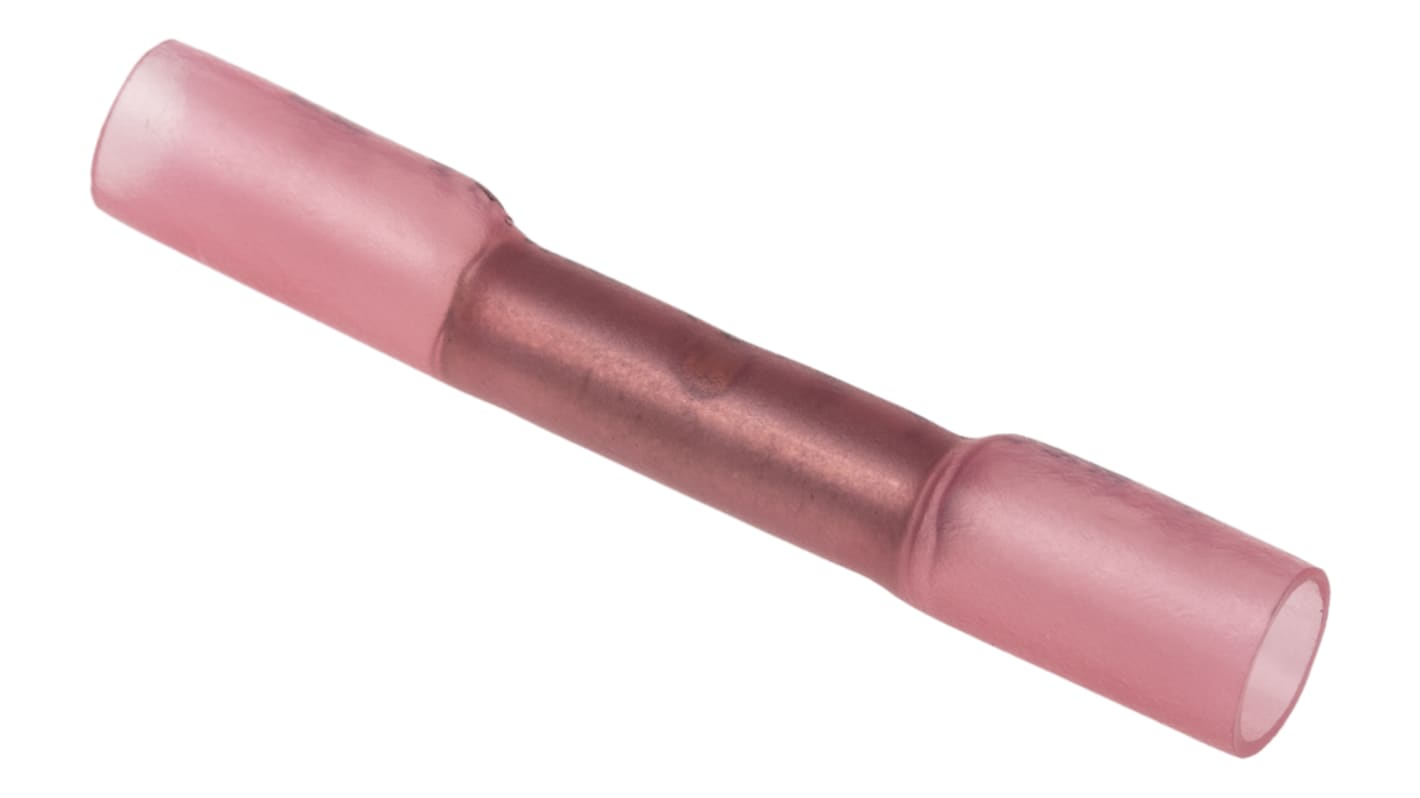

RS PRO Heat Shrink Splice Connector, Red, Insulated
- RS-artikelnummer:
- 458-0702
- Distrelec artikelnummer:
- 304-19-378
- Tillverkare / varumärke:
- RS PRO
Mängdrabatt möjlig
Antal (1 påse med 10 enheter)*
103,02 kr
(exkl. moms)
128,78 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 9 030 enhet(er) är redo att levereras
- Plus 8 820 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 7 000 enhet(er) från den 23 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Påse* |
|---|---|---|
| 10 - 140 | 10,302 kr | 103,02 kr |
| 150 - 490 | 9,80 kr | 98,00 kr |
| 500 + | 9,262 kr | 92,62 kr |
*vägledande pris
- RS-artikelnummer:
- 458-0702
- Distrelec artikelnummer:
- 304-19-378
- Tillverkare / varumärke:
- RS PRO
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RS PRO | |
| Splice Type | Heat Shrink | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Overall Length | 37mm | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Insulation | Insulated | |
| Colour | Red | |
| Insulation Material | Polyolefin | |
| Contact Material | Copper | |
| Välj alla | ||
|---|---|---|
Brand RS PRO | ||
Splice Type Heat Shrink | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Overall Length 37mm | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Insulation Insulated | ||
Colour Red | ||
Insulation Material Polyolefin | ||
Contact Material Copper | ||
RS PRO Heat Shrink Crimp Splices
These high quality, watertight crimp splices from RS PRO are made from a transparent coloured polyolefin material, the colour being dependent upon the size of the wire they are suitable for.
Each crimp splice is covered with a dual wall heat shrinkable tubing and have a hot melt able inner liner, which when heat is applied shrinks to form a watertight seal when terminating or connecting any wires or cable together.
The crimp splice heat shrink tubing offers excellent strain relief, it is both solvent and moisture resistant, as well as offering good physical and electrical properties.
Each crimp splice is covered with a dual wall heat shrinkable tubing and have a hot melt able inner liner, which when heat is applied shrinks to form a watertight seal when terminating or connecting any wires or cable together.
The crimp splice heat shrink tubing offers excellent strain relief, it is both solvent and moisture resistant, as well as offering good physical and electrical properties.
Features and Benefits
• The tubing can be used at a high operating temperature from -55 to 125 °C
• The heat shrink tube can be installed very quickly
• Safe and easy to use
• Minimum shrink temperature of the tubing is 150°C
• Watertight crimp splice tube
• Easy to visually inspect
• Voltage rating 600 V
• Heat shrink ratio of 1:1
• The heat shrink tube can be installed very quickly
• Safe and easy to use
• Minimum shrink temperature of the tubing is 150°C
• Watertight crimp splice tube
• Easy to visually inspect
• Voltage rating 600 V
• Heat shrink ratio of 1:1
Standards
MIL - H - 5606; MIL - L - 23699; MIL - L - 7808; MIL - A - 8243
