Ideal Industries SpliceLine Kabelskarv Trådskarvhylsa, Blå Isolerad, Burk-Beläggning 14 AWG

Se alla Skarvhylsor

Antal (1 låda med 100 enheter)*

227,49 kr

(exkl. moms)

284,36 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 1 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Låda(or)
Per låda
Per enhet*
1 +227,49 kr2,275 kr

*vägledande pris

RS-artikelnummer:
285-7543
Tillv. art.nr:
30-1042
Tillverkare / varumärke:
Ideal Industries
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Varumärke

Ideal Industries

Skarvtyp

Kabelskarv

Produkttyp

Trådskarvhylsa

Total längd

24.3mm

Minsta ledarstorlek AWG

14AWG

Maximal ledarstorlek AWG

14AWG

Isolation

Isolerad

Färg

Blå

Isoleringsmaterial

Polykarbonat

Serie

SpliceLine

Kontaktmaterial

Koppar

Kontaktplätering

Burk

Standarder/godkännanden

BS EN 60670-22, BS 5733, BS 5733-MF, BS 7671

RoHS-status: Undantagen

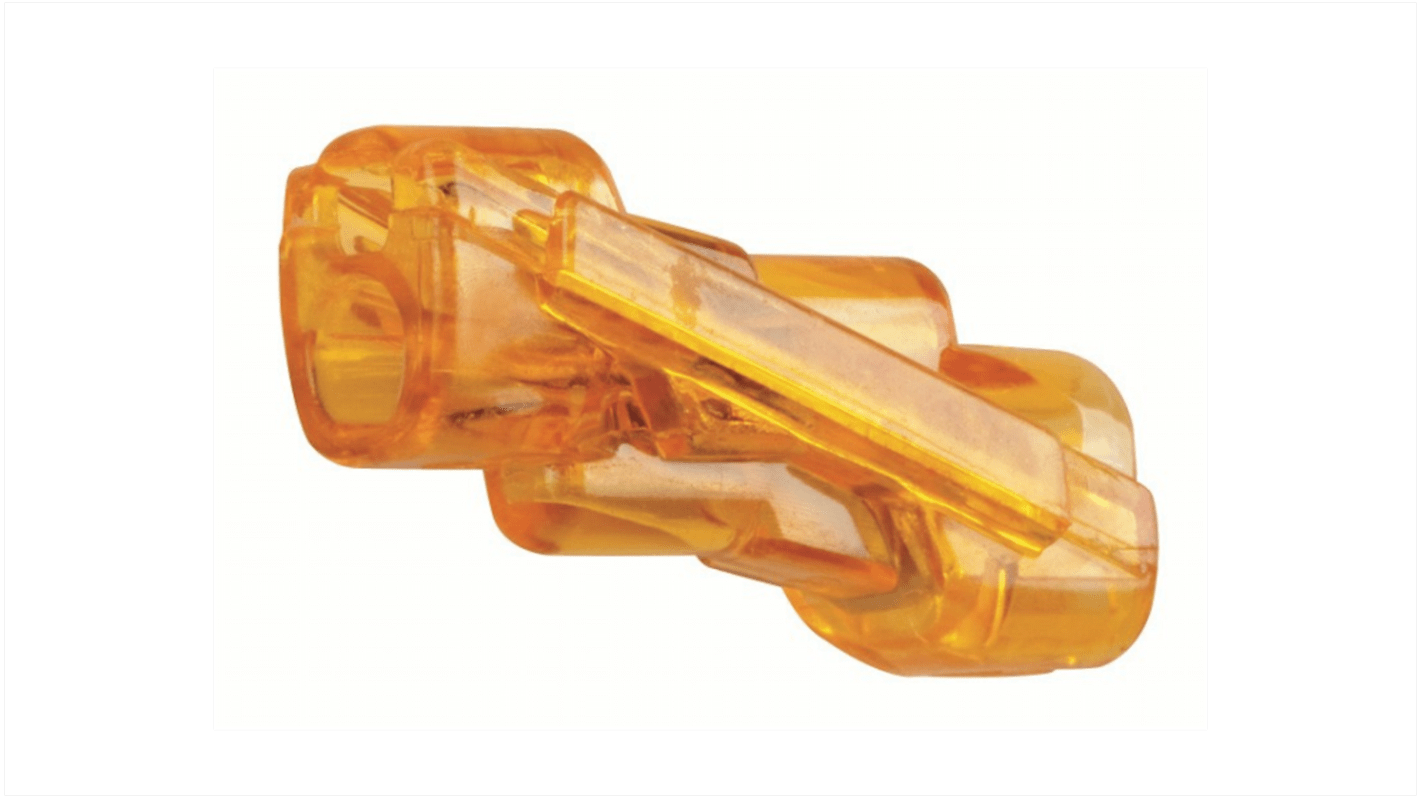

SpliceLine® In-Line Wire Connectors (100/BX)


The SpliceLine® in-line wire connector provides a crimp-free, solderless butt Splice.

Conforming to BS7671:2018, the two-port model accepts up to 4.0 mm2 solid wire allowing one connector to do the job of multiple through-crimps.

Its small size and tool-free application makes SpliceLine® the obvious solution for connecting wires in a broad range of applications, including prefabricated wiring, lighting and ring main circuits.

Electricians are often confronted with an existing wire that has been cut too short by the previous contractor to safely install a socket, light switch or lighting fixture. In these situations, it is often very difficult if not impossible to use a crimp tool due to space restrictions.

With SpliceLine® however, the short wire is simply pushed into one end of the connector with the extra length of wire being pushed into the other open end. It now takes less than 10 seconds to join two wires together.

IEC 60998: 32A | 450V | 105° C (working), UL 467C: 20A |600V | 105° C (working)

Wire range: 0.5mm2 - 4.0mm2 for solid (20-12 AWG) | 1.0 mm2 - 2.5 mm2 for stranded (16-12 AWG ≤19 strands) | tin bonded 18-14 AWG ≤19strands)

Transparent polycarbonate housing for visual inspection of connection

Wire Range Capacity: Solid - 12 to 20 AWG; Stranded - 12 to 16 AWG (≤19 str.); Stranded Tin-Bonded - 14 to 18 AWG (≤19 str.)

Faster alternative to traditional butt splices

Tool-free, push-in through crimp

Slim design fits through standard knockouts - perfect for lenthening wire

Transparent polycarbonate window for visual inspection of connection

Conform to EN 60998-1 and EN 60998-2-2 connecting device standards, BS 7671:2008 (18th Edition) compliant

CE, UKCA and UL listed
