HellermannTyton Wire Splice Wire Splice Connector, Insulated 28 → 14 AWG
- RS-artikelnummer:
- 241-8649
- Tillv. art.nr:
- HCRN-2-BLISTER
- Tillverkare / varumärke:
- HellermannTyton
Se alla Splice Connectors
430 I lager för avsändande samma dag
Pris (ex. moms) Each (In a Pack of 10)
5,087 kr
(exkl. moms)
6,359 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 + | 5,087 kr | 50,87 kr |
- RS-artikelnummer:
- 241-8649
- Tillv. art.nr:
- HCRN-2-BLISTER
- Tillverkare / varumärke:
- HellermannTyton
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

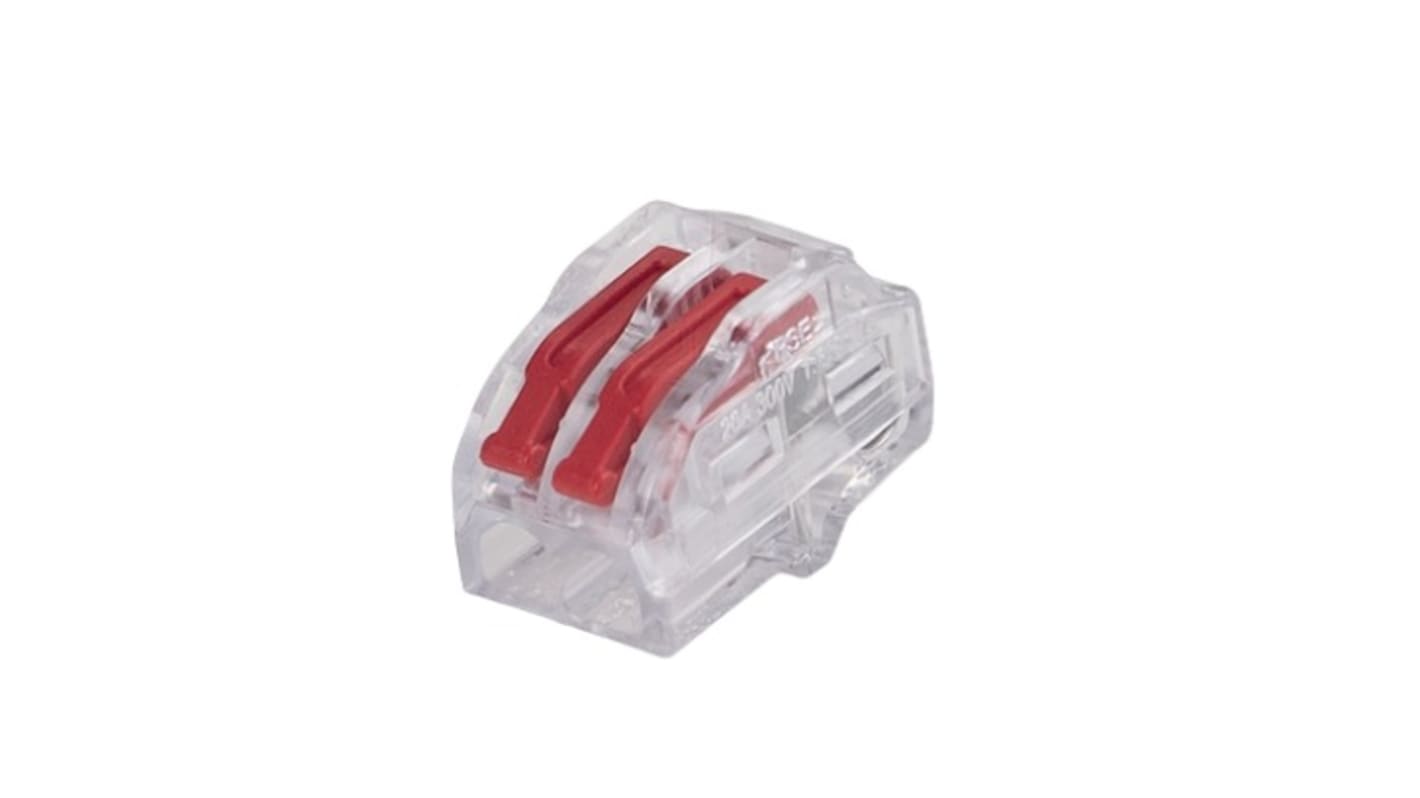

The HellermannTyton releasable wire connector blister pack are used for all types of wires to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted.
Universal push-in wire connector for solid, stranded and fine-stranded wires
Wire clamping range 0.2-4.0 mm²
Dimensions(mm) height 14 length 12 width 20.5
Maximum current 32A
Maximum voltage 450V
Material polycarbonate
Operating Temperature -30 °C to +85 °C
Wire clamping range 0.2-4.0 mm²
Dimensions(mm) height 14 length 12 width 20.5
Maximum current 32A
Maximum voltage 450V
Material polycarbonate
Operating Temperature -30 °C to +85 °C
Specifikationer
Attribute | Value |
|---|---|
| Splice Type | Wire Splice |
| Wire Size | 28 → 14 AWG |
| Overall Length | 12mm |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 28AWG |
| Number of Ways | 2 |
| Insulation | Insulated |
