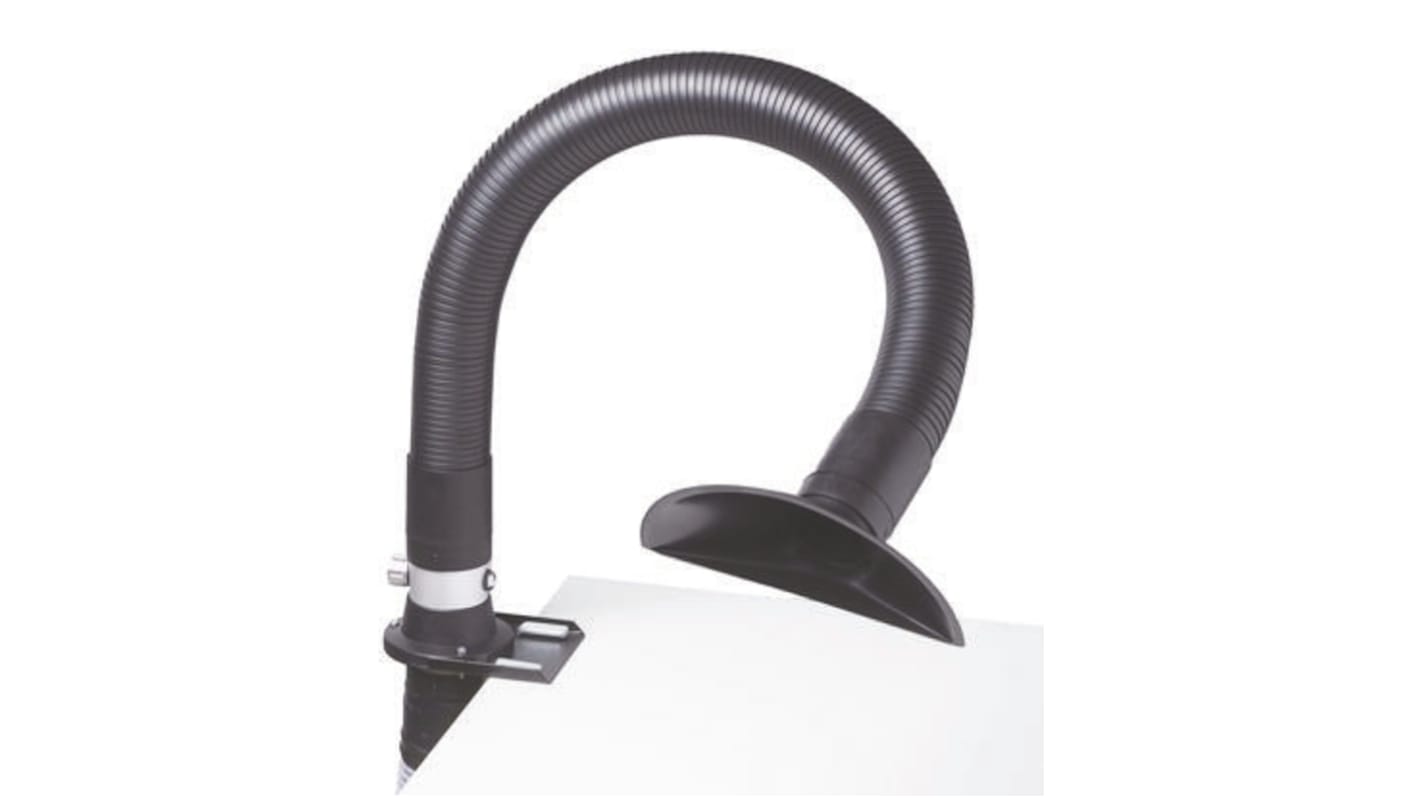

Weller WF FUNNEL Extraction Arm

Weller WFE Funnel soldering fume extraction arm kit is compatible with the WFE 2S and WFE 2ES fume extraction units. The fume extraction arm is fitted with an ALFA funnel-shaped fume extraction nozzle complete with an Easy Click 60 connection and the soldering extraction arm can be fitted directly onto a work-bench as required. Once connected to a solder fume extractor and filter, solder fumes will be directed away from you providing you with clean breathable air in your workplace.

• Fits WFE 2S and WFE 2ES soldering fume extraction units.
• ALFA Extraction Funnel.
• Easy Click 60 connection.
• Direct, easy connection to a work-bench.
• Flexbility.
• Directs solder fumes onto the solder fume extraction unit through the solder fume filters.
• 1 to 2 work places.

• Fume extraction arm, 1m long and a diameter of 60 mm.
• Fume extraction nozzle, funnel-shaped (230 mm x 100mm) 1m long and a diameter of 60 mm.
• Stop valve.
• Mounting bracket (bench mounting).

• Weight 9 kg.
• 190m³/h Extraction rate.
• 3000Pa Vacuum.
• 230 V, 50Hz.
• 53db(A) Noise level.

Extraction arm, funnel nozzle, stop valve, 2 x bench mounting clamps and 3m extraction hose.
