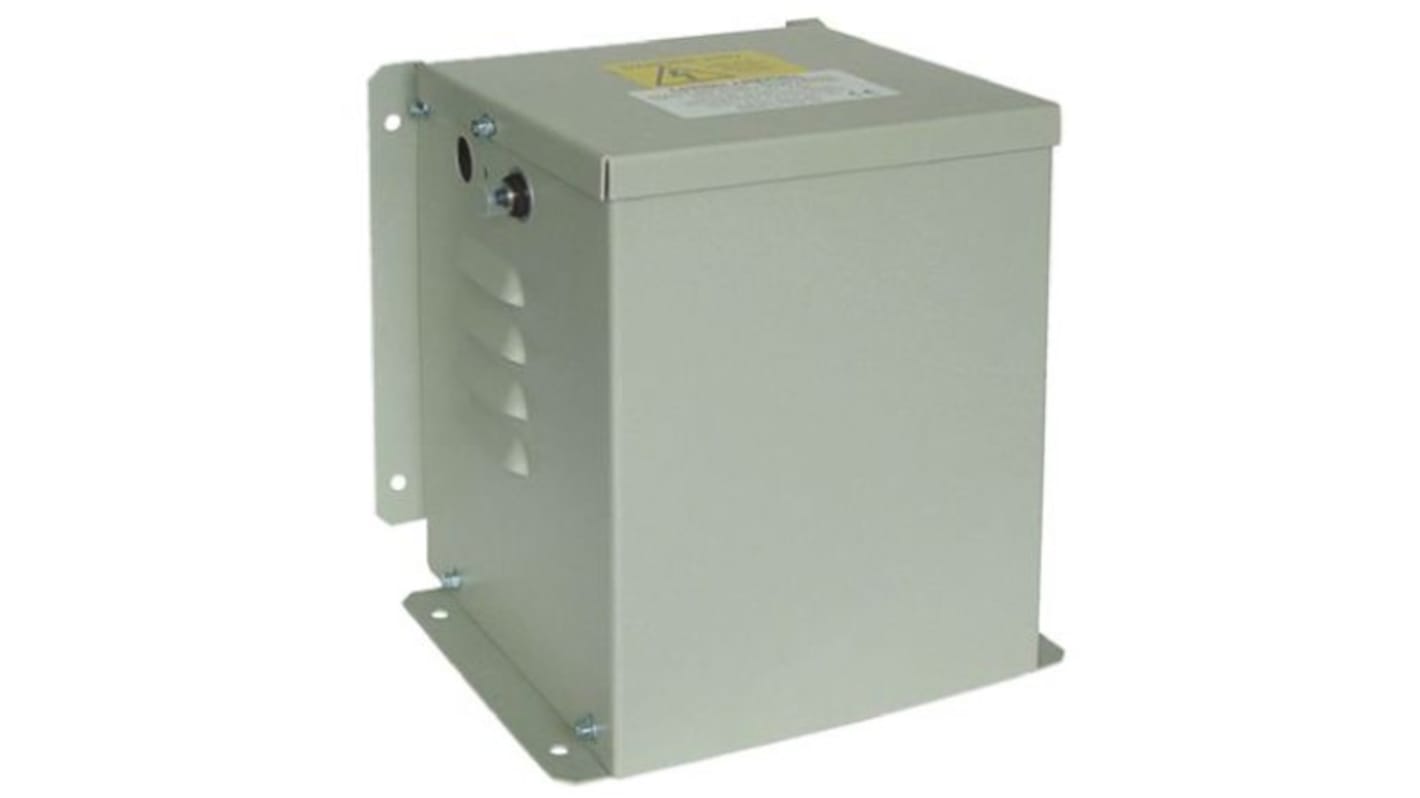

Carroll & Meynell Single Phase 3kVA Site Transformer, 230V ac Primary, ±110V ac Secondary, 31.81A O/P
- RS-artikelnummer:
- 436-8833
- Tillv. art.nr:
- CM5000/WM0
- Tillverkare / varumärke:
- Carroll & Meynell
Tillfälligt slut i lager – restorder för leverans 2024-05-22
Lagt till varukorgen
Pris (ex. moms) Varje
12 742,74 kr
(exkl. moms)
15 928,42 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 12 742,74 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 436-8833
- Tillv. art.nr:
- CM5000/WM0
- Tillverkare / varumärke:
- Carroll & Meynell
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
Single Phase, 230Vac Input, 110Vac Output Transformers
High quality wall mounting safety isolating transformers designed to ensure safe electrical distribution for power tools etc in industrial, garage and other fixed installations.
Double wound
110V secondaries centre tapped to earth to minimise shock risk
Sheet steel IP22 type wall mounting enclosure
Re settable thermal cut out trip in primary circuit to prevent overload
Thermal safety overload fuse embedded into primary winding
20mm conduit entry on both sides of case
110V secondaries centre tapped to earth to minimise shock risk
Sheet steel IP22 type wall mounting enclosure
Re settable thermal cut out trip in primary circuit to prevent overload
Thermal safety overload fuse embedded into primary winding
20mm conduit entry on both sides of case
Note
Tool rating is defined in BSEN 61558-2-23 as 5 minutes on and 15 minutes off. Maximum output must not exceed 16A per socket outlet.
Standards
BSEN 61558-2-23
Specifikationer
Attribute | Value |
|---|---|
| Primary Voltage Rating | 230V ac |
| Secondary Voltage Rating | ±110V ac |
| Power Rating | 3kVA |
| Number of Phases | 1 |
| Output Current | 31.81A |
| Series | CM5000/WM0 |
| Plug Type | Hard Wire L-N-E |
| Weight | 35kg |
| Length | 350mm |
| Width | 460mm |
| Depth | 330mm |
| Dimensions | 330 x 355 x 267mm |
| Mounting Type | Wall Mount |
| Maximum Operating Frequency | 60Hz |
| Minimum Operating Frequency | 50Hz |
