- RS-artikelnummer:
- 399-6140
- Tillv. art.nr:
- CMHT 3
- Tillverkare / varumärke:
- Carroll & Meynell
Tillfälligt slut i lager – restorder för leverans 2024-05-08
Lagt till varukorgen
Pris (ex. moms) Varje
6 096,62 kr
(exkl. moms)
7 620,78 kr
(inkl. moms)
Enheter | Per unit |
1 + | 6 096,62 kr |
- RS-artikelnummer:
- 399-6140
- Tillv. art.nr:
- CMHT 3
- Tillverkare / varumärke:
- Carroll & Meynell
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

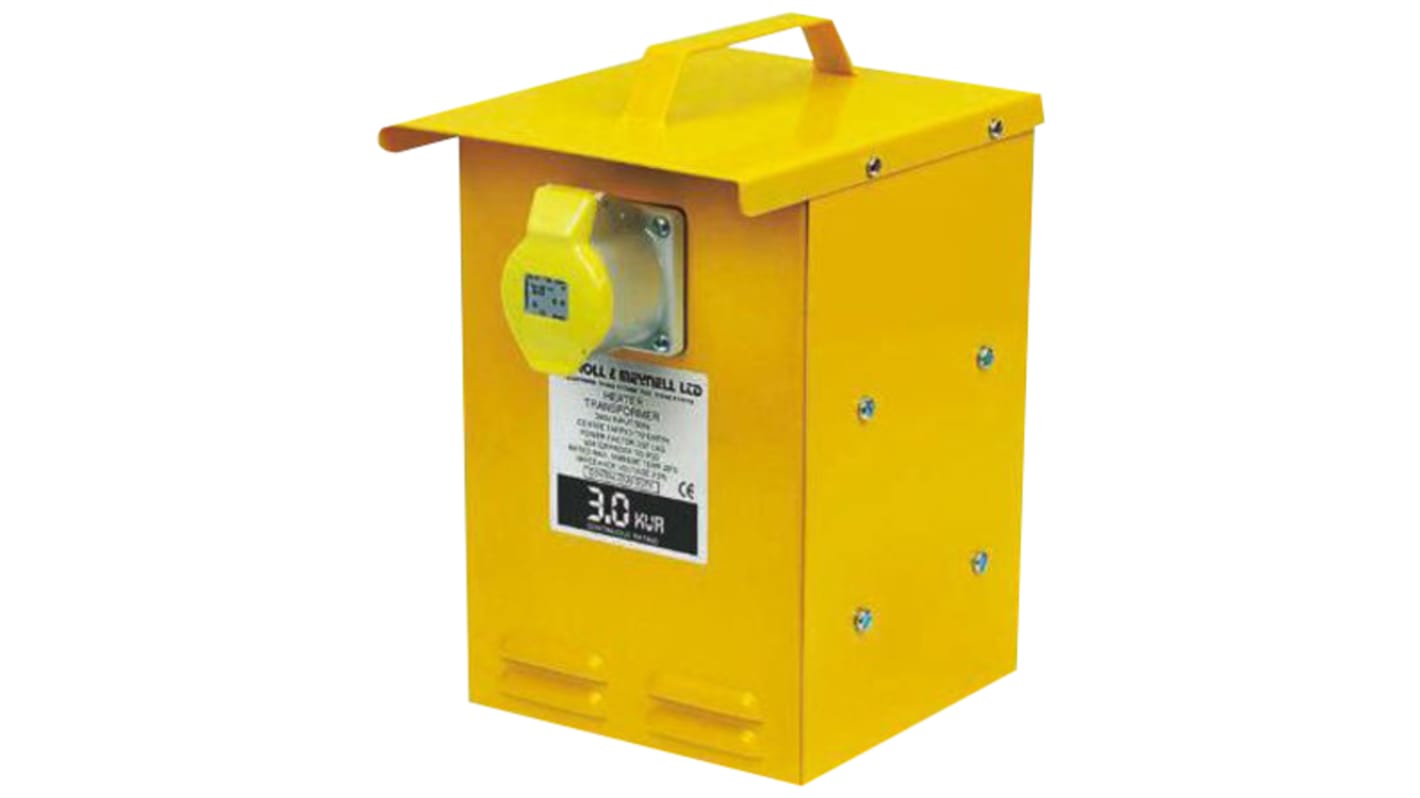

Transformer for Constant Loads 230Vac Input, 110Vac Output
From Carroll & Meynell, this continuously rated safety isolating transformer is designed for constant load appliances, such as temporary heating & lighting on construction sites. With a heavy duty sheet steel case, this safety isolating transformer is highly durable.
Features and Benefits:
• Single Phase Units: Input 230Vac output 110Vac centre tapped to earth
• Rating 3kVA continuous
• 2.5mm input cable
• 32A BS4343 110V socket outlet
• Protected to IP22
• Thermal cutout
• Rating 3kVA continuous
• 2.5mm input cable
• 32A BS4343 110V socket outlet
• Protected to IP22
• Thermal cutout
Specifikationer
Attribute | Value |
---|---|
Primary Voltage Rating | 230V ac |
Secondary Voltage Rating | ±55V ac |
Power Rating | 3kVA |
Output Current | 27A |
Series | CMHT |
Plug Type | Hard Wire L-N-E |
Socket Type | BS EN 60309 |
Weight | 32kg |
Length | 370mm |
Width | 230mm |
Depth | 300mm |
Dimensions | 285 x 225 x 380mm |
Mounting Type | Free Standing |
Minimum Operating Frequency | 50Hz |
Maximum Operating Frequency | 60Hz |
