    RS PRO Signal Conditioner, Analogue Splitter, Current, Voltage Input, Current, Voltage Output

    RS-artikelnummer:
    794-8574
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Signal Conditioners
    Tillfälligt slut i lager restorder för leverans 2022-10-27
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    2 967,04 kr

    (exkl. moms)

    3 708,80 kr

    (inkl. moms)

    EnheterPer unit
    1 +2 967,04 kr
    RS-artikelnummer:
    794-8574
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    DE

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    DE

    Produktdetaljer

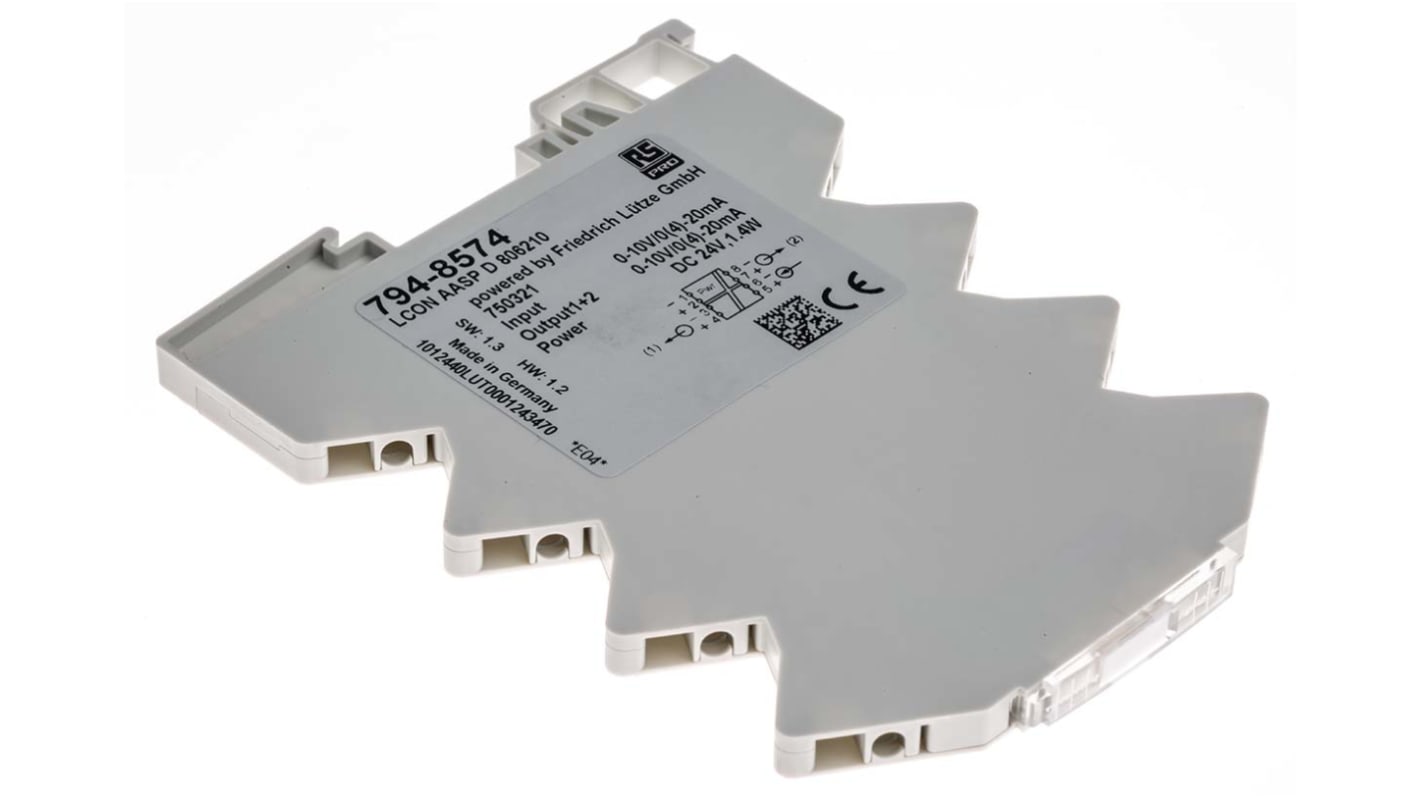

    RS PRO Analogue Output, Signal Conditioner


    By using this RS PRO analogue-to-analogue signal conditioner you can split a single input signal to four output signals. A common feature in industrial applications, this converter supports three input and output modes of 0 V to 10 V, 0 mA to 20 mA and 4 mA to 20 mA. As it maintains two-way isolation, this high-accuracy signal conditioner eliminates unwanted ground loop currents and electrical noise.

    Thanks to DIN rail mounting and screw-type termination, this micro-compact converter is easy to install in the field. It can withstand an operating temperature range of -40°C to +70°C and conforms to cULus standards for use in hazardous locations. The build quality is backed by an IP20 rating to protect against accidental finger contact.

    Part of the trusted RS PRO range, this signal conditioner undergoes rigorous testing for quality. It is often used in industry for machine maintenance and data acquisition.


    Features and Benefits


    • 4-way isolation micro-compact analogue-to-analogue splitter
    • Three input and three output modes of 0 V to 10 V, 0 mA to 20 mA, 4 mA to 20 mA
    • DIN rail mounting
    • Minimum operating temperature of -40°C
    • Maximum operating temperature of +70°C
    • Screw termination for easy installation
    • LED power indicator
    • cULus compliant for usage in hazardous locations
    • RoHS (Restriction of hazardous substances) compliant


    RS PRO


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

    they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.



    Specifikationer

    AttributeValue
    Module TypeAnalogue Splitter
    Input Signal TypeCurrent, Voltage
    Output Signal TypeCurrent, Voltage
    Supply Voltage16.8 → 30V
    Input Range0 → 10 V, 0 → 20 mA, 4 → 20mA
    Output Range0 → 10 V, 0 → 20 mA, 4 → 20mA
    Mounting TypeDIN Rail Mount
    Operating Temperature Range-40 → +70°C
    SeriesCrouse-Hinds
    Minimum Operating Temperature-40°C
    TerminationScrew
    Maximum Operating Temperature+70°C
    Standards MetcULus
