    RS PRO Signal Conditioner, Temperature Converter, RTD, Thermocouple Input, Current, Voltage Output

    RS-artikelnummer:
    788-6999
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Signal Conditioners
    22 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    1 770,44 kr

    (exkl. moms)

    2 213,05 kr

    (inkl. moms)

    EnheterPer unit
    1 - 41 770,44 kr
    5 +1 699,63 kr
    RS-artikelnummer:
    788-6999
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    GB

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    GB

    Produktdetaljer

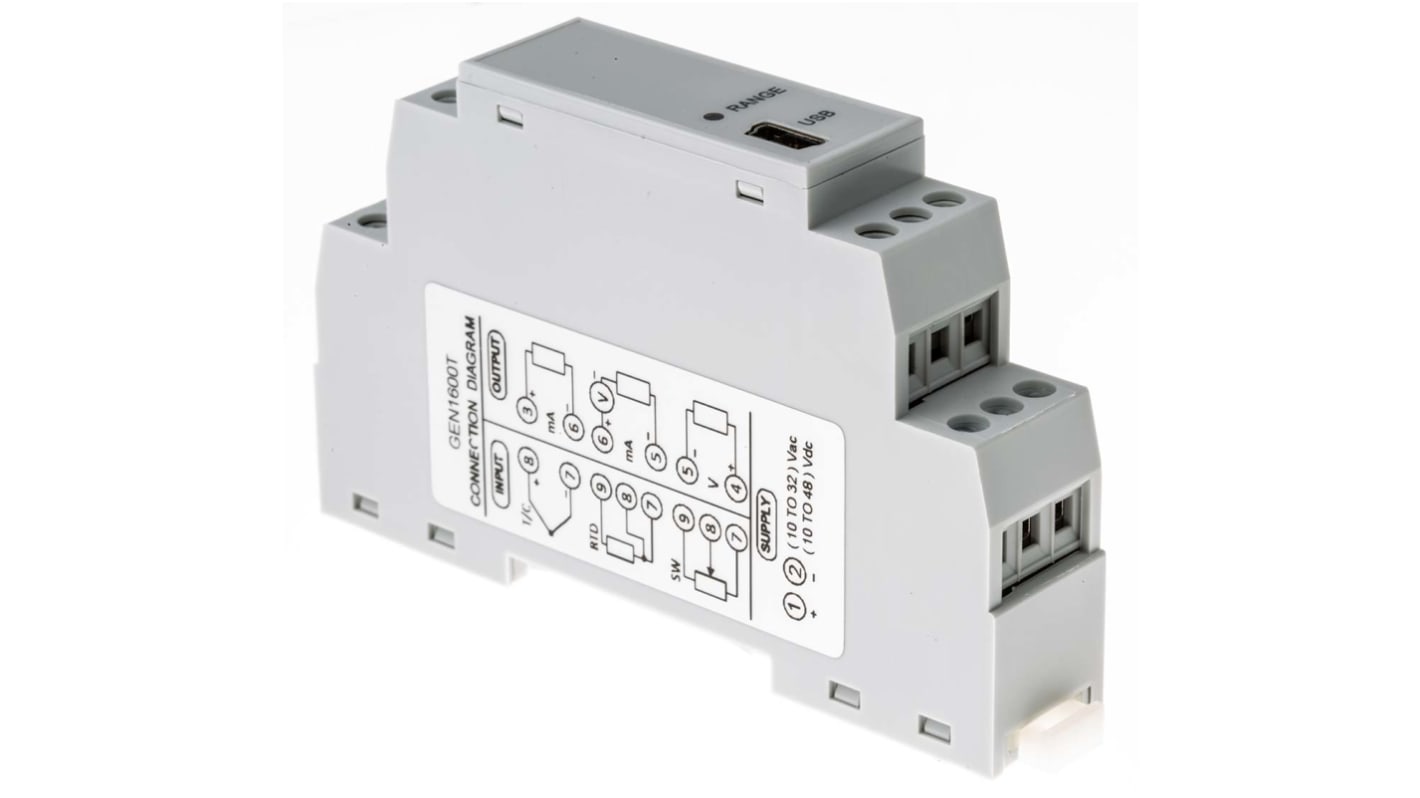

    RS PRO Current Output, Signal Conditioner


    Use this current-output signal conditioner to reliably convert analogue temperature input signals from RTD, thermocouple or slidewire to either voltage, bipolar voltage or current re-transmission signals outputs. The converter automatically configures to AC or DC supply. A transmitter power supply is provided on both input and output, meaning the product can accept sink or source applications.

    Able to accept inputs from resistive sensors in the range of 0 to 100 KΩ, -100 to 200 mV, -200 to +2000 °C, the converter's flexible design makes it a versatile choice. It's fitted with a USB interface for quick and easy configuration, so you simply download and install free software tools for 22-point linearisation characteristics to customise this smart converter to your needs.

    Part of the RS PRO range, this product is stringently tested for quality and consistency. It's commonly found in a variety of industrial uses like factory automation and process control.


    Features and Benefits


    • Temperature-to-current signal conditioner
    • Smart converter, configurable via USB interface
    • Accepts inputs of 0 to 100 KΩ, -100 to 200 mV, -200 °C to +2000 °C
    • Output ranges of 0 to 10 V and 0 to 21.5 mA
    • Minimum operating temperature of -30°C
    • Maximum operating temperature of 70°C
    • DIN rail mountable for easy installation
    • Conforms with CE standards for health, safety, and environmental protection


    RS PRO


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

    they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.



    Specifikationer

    AttributeValue
    Module TypeTemperature Converter
    Input Signal TypeRTD, Thermocouple
    Output Signal TypeCurrent, Voltage
    Supply Voltage10 → 32 V ac, 10 → 48V dc
    Input Range0 → 100 KΩ, -100 → 200 mV, -200 → +2000°C
    Output Range0 → 10 V, 0 → 21.5mA
    Mounting TypeDIN Rail Mount
    Operating Temperature Range-30 → +70°C
    TerminationScrew
    Minimum Operating Temperature-30°C
    SeriesMINI MCR-2-RPS-2I-2I-OLP
    Standards MetCE
    Maximum Operating Temperature+70°C
