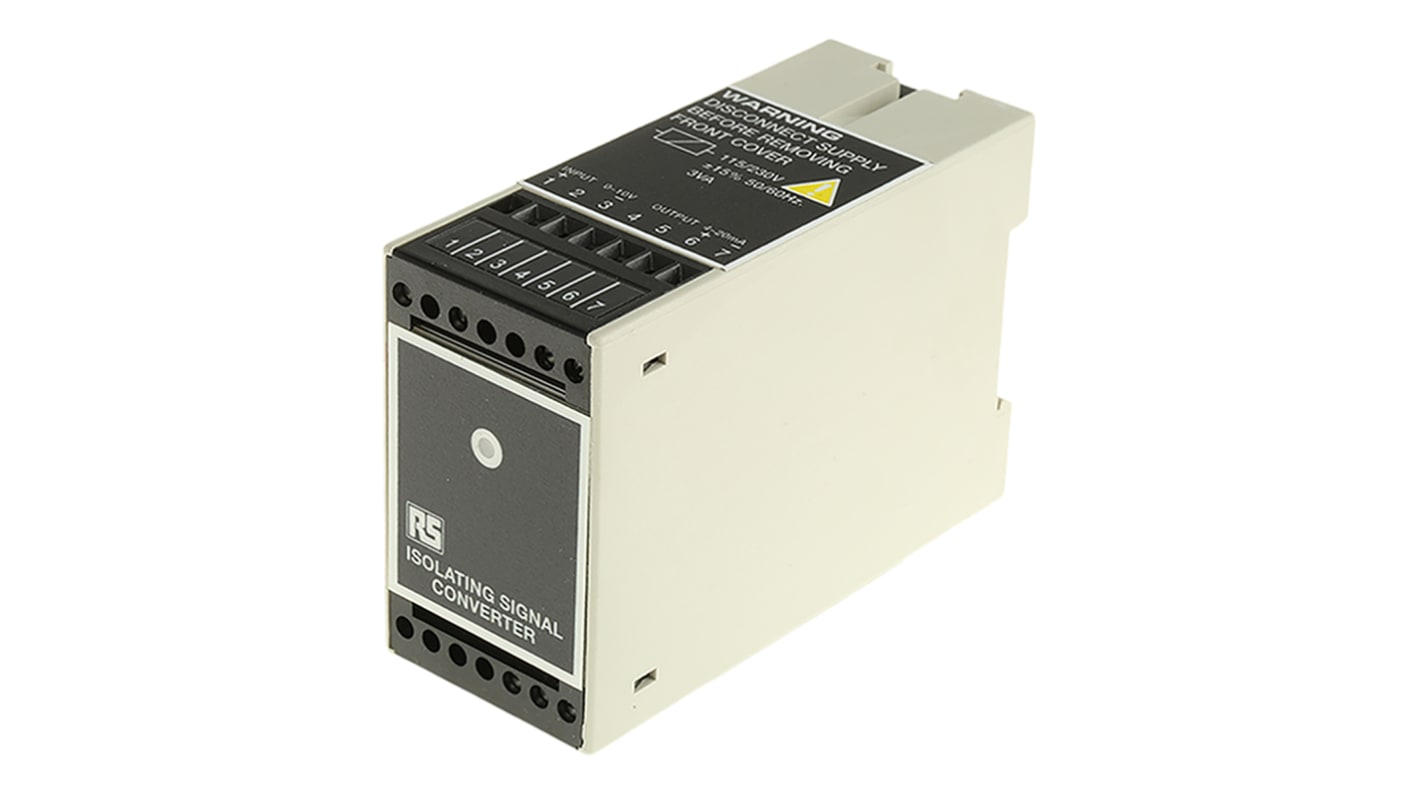

RS PRO Signal Conditioner, Voltage Input, Current Output, 24 → 230V ac Supply

Se alla Signal Conditioners

Antal (1 enhet)*

2 994,51 kr

(exkl. moms)

3 743,14 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 10 enhet(er) är redo att levereras
  • Dessutom levereras 4 enhet(er) från den 09 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +2 994,51 kr

*vägledande pris

RS-artikelnummer:
629-522
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Module Type

Signal Isolator

Input Signal Type

Voltage

Output Signal Type

Current

Input Range

0 → 10V dc

Output Range

4 → 20mA

Supply Voltage

24 → 230V ac

Mounting Type

DIN Rail Mount

Operating Temperature Range

-20 → +60°C

Series

TYA-202

Termination

Screw

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

RoHS-status: Undantagen

COO (Country of Origin):
GB

Signal Conditioning Units


RS Pro single or dual trip amplifiers with the facility to arrange each trip so that the alarm condition can be above (high trip) or below (low trip) the set point. The relay can be either energise/de-energise in the alarm condition (fail-safe) or de-energise/energise in the alarm condition (non-fail safe).

Dual supply voltage operation
Bi-colour LED status indication
Front panel adjustment of "Trip Levels"

Input and output stages powered from separate secondaries of the supply transformer to provide 3-port isolation
Dual supply voltage operation
LED indication of "power on"

Note

Trip settings are set via links on a PBC within the unit,Signal isolators/Converters; Four units which provide signal isolation via an opto-isolated hybrid circuit. The 0-10Vdc; 4-20mA units also convert process signals into a required standard transmission voltage or current signals
