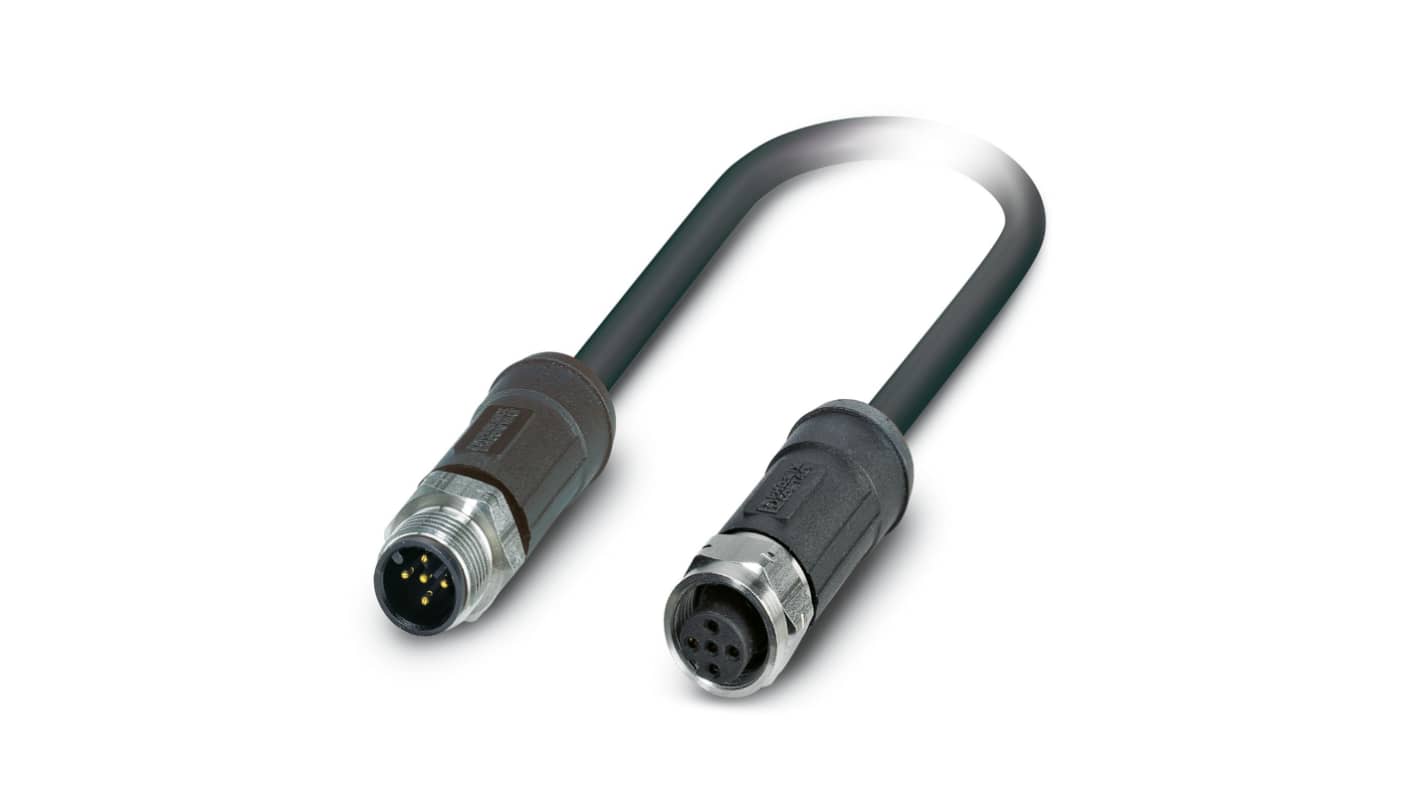

Phoenix Contact Straight Female 5 way M12 to Straight Male 5 way M12 Bus Cable, 2m
- RS-artikelnummer:
- 883-1130
- Tillv. art.nr:
- 1410467
- Tillverkare / varumärke:
- Phoenix Contact
- RS-artikelnummer:
- 883-1130
- Tillv. art.nr:
- 1410467
- Tillverkare / varumärke:
- Phoenix Contact
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-5P-M12MS/2.0-92X/M12FSSHOD | |
| Number of Cores | 4 | |
| Cross Sectional Area | (Signal) 0.25 mm², (Power) 0.34 mm², (Drain Wire) 0.38 mm² | |
| Length | 2m | |
| Sheath Colour | Black | |
| Sheath Material | Flame Retardant Non-Corrosive FRNC | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Straight | |
| Connector 2 | M12 | |
| Connector 2 Orientation | Straight | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Number of Contacts | 5 | |
| Coding | A | |
| Shielded/Unshielded | Shielded | |
| Voltage Rating | 60 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Characteristic Impedance | 120 Ω | |
| Operating Temperature Range | -40 → +105 °C | |
| Conductor Resistance | 55 (Power) Ω/km, 90 (Signal) Ω/km | |
| Outer Diameter | 6.9mm | |
| Minimum Operating Temperature | -40°C | |
| Oil Resistant | Yes | |
| Cable Shape | Multicore | |
| Standards Met | IEC 60332-3-25, IEC 60512-11-4, IEC 61076-2-101 | |
| Size of Strands | 0.13 (Signal) mm, 0.16 (Voltage Supply) mm | |
| Conductor Material | CuSn | |
| Insulation Material | PE | |
| Maximum Operating Temperature | +105°C | |
| Core Strands | (Signal Line) 19 x 0.13 mm, (Voltage Supply) 19 x 0.16 mm | |
| Minimum Bend Radius | 10 x D (Flexible), 5 x D (Fixed) | |
| American Wire Gauge | 22 AWG, 24 AWG | |
| Number of Strands | 19 | |
| Connector 1 Housing Gender | Female | |
Välj alla | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P-M12MS/2.0-92X/M12FSSHOD | ||
Number of Cores 4 | ||
Cross Sectional Area (Signal) 0.25 mm², (Power) 0.34 mm², (Drain Wire) 0.38 mm² | ||
Length 2m | ||
Sheath Colour Black | ||
Sheath Material Flame Retardant Non-Corrosive FRNC | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Straight | ||
Connector 2 M12 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Male | ||
Connector 2 Number of Contacts 5 | ||
Coding A | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 60 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Characteristic Impedance 120 Ω | ||
Operating Temperature Range -40 → +105 °C | ||
Conductor Resistance 55 (Power) Ω/km, 90 (Signal) Ω/km | ||
Outer Diameter 6.9mm | ||
Minimum Operating Temperature -40°C | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Standards Met IEC 60332-3-25, IEC 60512-11-4, IEC 61076-2-101 | ||
Size of Strands 0.13 (Signal) mm, 0.16 (Voltage Supply) mm | ||
Conductor Material CuSn | ||
Insulation Material PE | ||
Maximum Operating Temperature +105°C | ||
Core Strands (Signal Line) 19 x 0.13 mm, (Voltage Supply) 19 x 0.16 mm | ||
Minimum Bend Radius 10 x D (Flexible), 5 x D (Fixed) | ||
American Wire Gauge 22 AWG, 24 AWG | ||
Number of Strands 19 | ||
Connector 1 Housing Gender Female | ||
