- RS-artikelnummer:
- 739-6698
- Tillv. art.nr:
- EVC141
- Tillverkare / varumärke:
- ifm electronic
65 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
166,85 kr
(exkl. moms)
208,56 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 166,85 kr |
5 - 11 | 161,80 kr |
12 + | 156,43 kr |
- RS-artikelnummer:
- 739-6698
- Tillv. art.nr:
- EVC141
- Tillverkare / varumärke:
- ifm electronic
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

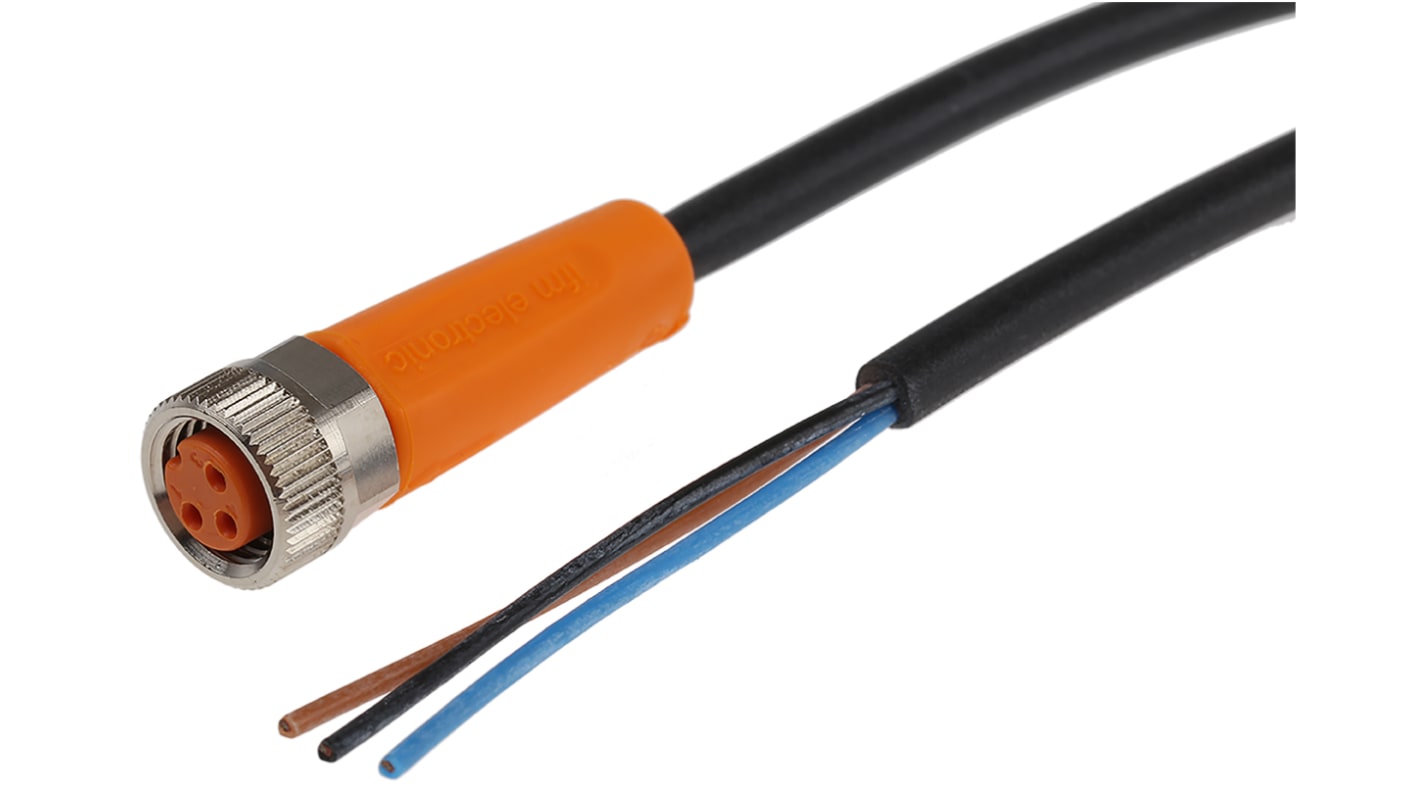

EVC Series — M8 Cable Box for Sensors with M8 Plug Connection
The ifm connecting cable with socket us resistant to oils and coolants. It has permanent, reliable sealing even when mounted without tools, High protection rating for the requirements of harsh industrial environments, Vibration and shock resistant thanks to coupling ring with locking mechanism and Mechanical end stop to protect the O-ring from destruction.
PUR cable
Silicon-free
Halogen-free
Gold-plated contacts
Suitable for drag chains
Silicon-free
Halogen-free
Gold-plated contacts
Suitable for drag chains
Specifikationer
Attribute | Value |
---|---|
Number of Cores | 3 |
Cross Sectional Area | 0.25 mm² |
Sheath Colour | Black |
Length | 2m |
Connector 1 | M8 |
Connector 1 Gender | Female |
Connector 1 Orientation | Straight |
Connector 1 Number of Contacts | 3 |
Connector 2 | Unterminated |
Current Rating | 3 A |
Voltage Rating | 50 V AC, 60 V DC |
IP Rating | IP65, IP67, IP68, IP69K |
American Wire Gauge | 24 AWG |
