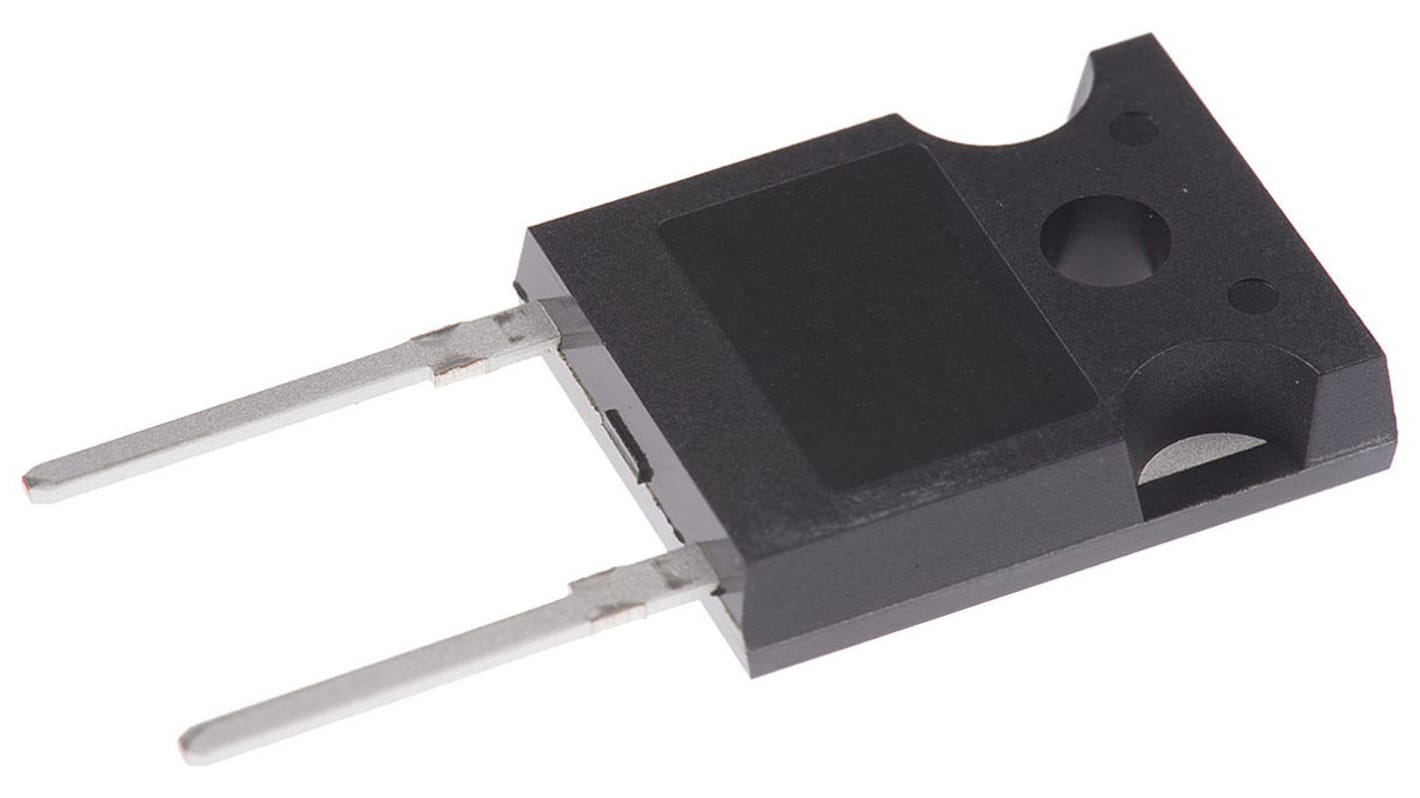

Vishay 600 V 30 A Diode Switching 2-Pin TO-247
- RS-artikelnummer:
- 919-4407
- Tillv. art.nr:
- VS-EPH3006-N3
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 rör med 25 enheter)*
964,325 kr
(exkl. moms)
1 205,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 625 enhet(er), redo att levereras
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 25 - 25 | 38,573 kr | 964,33 kr |
| 50 - 100 | 36,642 kr | 916,05 kr |
| 125 + | 32,789 kr | 819,73 kr |
*vägledande pris
- RS-artikelnummer:
- 919-4407
- Tillv. art.nr:
- VS-EPH3006-N3
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current If | 30A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Diode Configuration | Single | |
| Series | VSX | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 2.6V | |
| Peak Reverse Current Ir | 50μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 35ns | |
| Height | 20.7mm | |
| Length | 15.9mm | |
| Diameter | 13 mm | |
| Standards/Approvals | RoHS | |
| Width | 5.3 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current If 30A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Diode Configuration Single | ||
Series VSX | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 2.6V | ||
Peak Reverse Current Ir 50μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 300A | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 35ns | ||
Height 20.7mm | ||
Length 15.9mm | ||
Diameter 13 mm | ||
Standards/Approvals RoHS | ||
Width 5.3 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
FRED Pt® Ultrafast Recovery Rectifiers, over 10A
Diodes and Rectifiers, Vishay Semiconductor
