- RS-artikelnummer:
- 917-9102
- Tillv. art.nr:
- 1N5822
- Tillverkare / varumärke:
- HY Electronic Corp
1700 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 100)
1,326 kr
(exkl. moms)
1,658 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
100 - 200 | 1,326 kr | 132,60 kr |
300 - 500 | 1,191 kr | 119,10 kr |
600 - 1100 | 1,099 kr | 109,90 kr |
1200 - 2300 | 1,014 kr | 101,40 kr |
2400 + | 0,978 kr | 97,80 kr |
- RS-artikelnummer:
- 917-9102
- Tillv. art.nr:
- 1N5822
- Tillverkare / varumärke:
- HY Electronic Corp
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

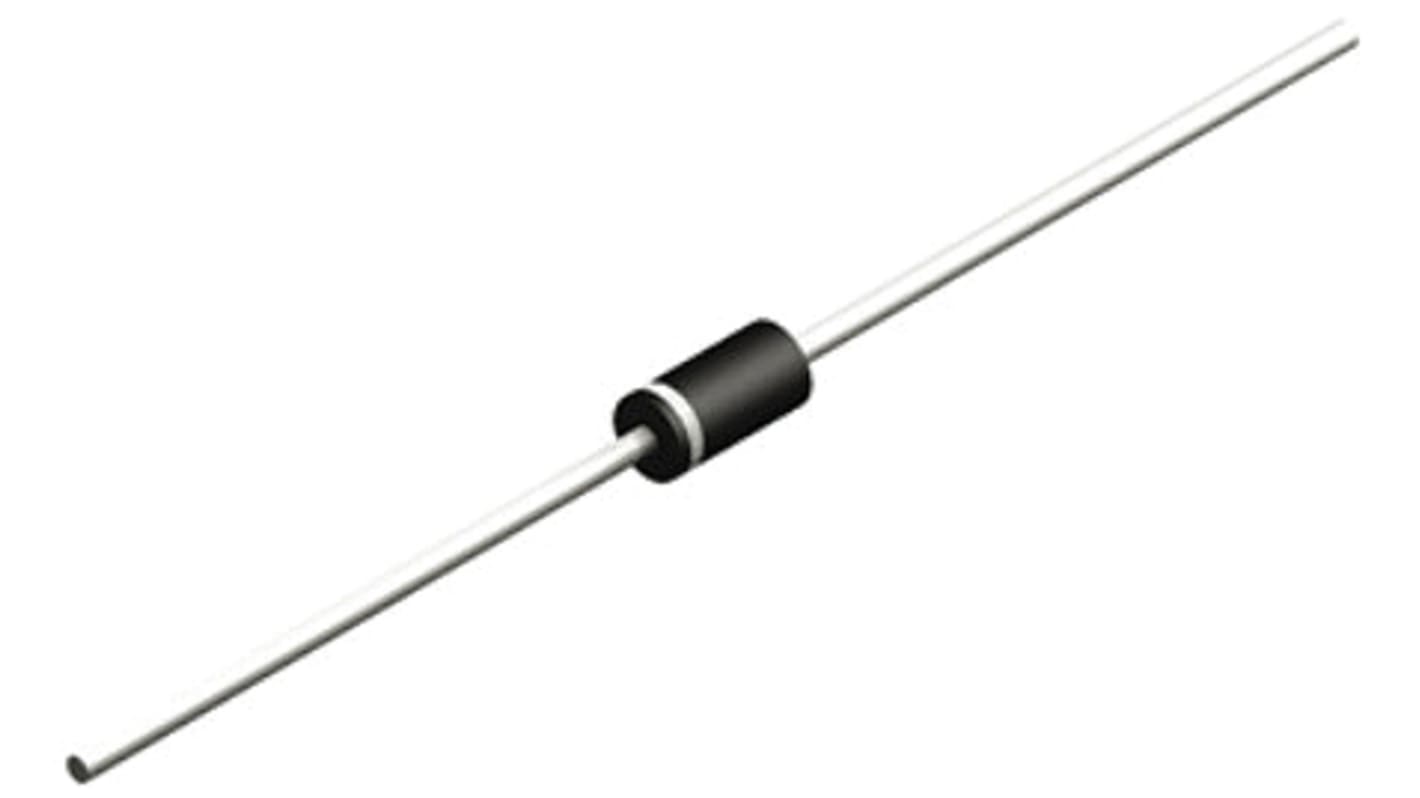

Schottky Barrier Rectifier Diode - 1N58 Series
The HY Electronic (Cayman) Limited offer schottky diodes with 1A and 2A forward current rating. The schottky barrier rectifier has a low forward voltage drop and comes in a JEDEC DO-41 or DO-27 package. The schottky rectifier can be used in applications that require fast switching like high frequency inverters, polarity protection and freewheeling.
Construction: Epitaxial
Metal: Semiconductor junction with guard ring
Plastic material: UL94V-0
Polarity: Colour band denotes cathode
Metal: Semiconductor junction with guard ring
Plastic material: UL94V-0
Polarity: Colour band denotes cathode
Diodes and Rectifiers, HY Electronic (Cayman) Limited
Specifikationer
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Package Type | DO-27 |
Maximum Continuous Forward Current | 3A |
Peak Reverse Repetitive Voltage | 40V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 600mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky Barrier |
Diameter | 5.6mm |
Peak Non-Repetitive Forward Surge Current | 80A |
