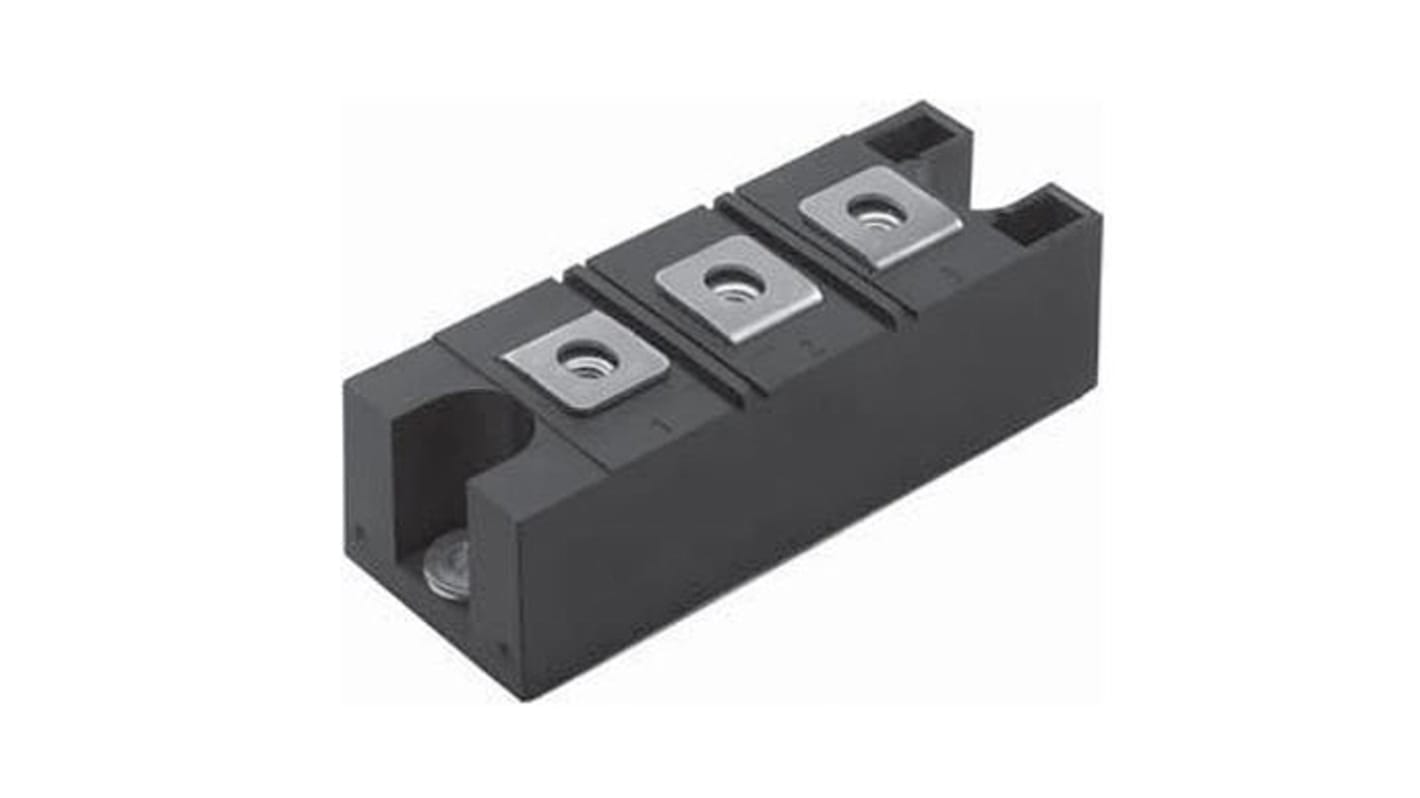

Vishay 1600 V 230 A Diode 7-Pin INT-A-PAK
- RS-artikelnummer:
- 877-6398
- Tillv. art.nr:
- VS-VSKD236/16PBF
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 enhet)*
761,94 kr
(exkl. moms)
952,42 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 15 enhet(er) från den 02 februari 2026
- Dessutom levereras 15 enhet(er) från den 24 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 1 | 761,94 kr |
| 2 - 4 | 723,86 kr |
| 5 - 9 | 685,66 kr |
| 10 + | 647,70 kr |
*vägledande pris
- RS-artikelnummer:
- 877-6398
- Tillv. art.nr:
- VS-VSKD236/16PBF
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Panel | |
| Product Type | Diode | |
| Package Type | INT-A-PAK | |
| Maximum Continuous Forward Current If | 230A | |
| Peak Reverse Repetitive Voltage Vrrm | 1600V | |
| Diode Configuration | Series | |
| Series | VSX | |
| Pin Count | 7 | |
| Maximum Forward Voltage Vf | 1.46V | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5.8kA | |
| Peak Reverse Current Ir | 20mA | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 35 mm | |
| Length | 94mm | |
| Height | 30mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Mount Type Panel | ||
Product Type Diode | ||
Package Type INT-A-PAK | ||
Maximum Continuous Forward Current If 230A | ||
Peak Reverse Repetitive Voltage Vrrm 1600V | ||
Diode Configuration Series | ||
Series VSX | ||
Pin Count 7 | ||
Maximum Forward Voltage Vf 1.46V | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 5.8kA | ||
Peak Reverse Current Ir 20mA | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 35 mm | ||
Length 94mm | ||
Height 30mm | ||
Automotive Standard No | ||
- Standard Recovery Diodes, 165 A to 230 A INT-A-PAK Power Modules
- ESD Control Selection Guide V1
- Application Note- Design Guidelines for Schottky Rectifiers
- Application Note- Fundamentals of Rectifiers
- Application Note- Rectifiers for Power Factor Correction
- Application Note- Physical Explanation
- Diodes Group Body Marking
- Application Note- High Speed Data Line Protection
- Packaging Information
- Pad Layouts/Soldering Process
- Application Note- Power Factor Correction with Ultrafast Diodes
- Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components
- COO (Country of Origin):
- IN
Standard Recovery Rectifiers, over 40A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
