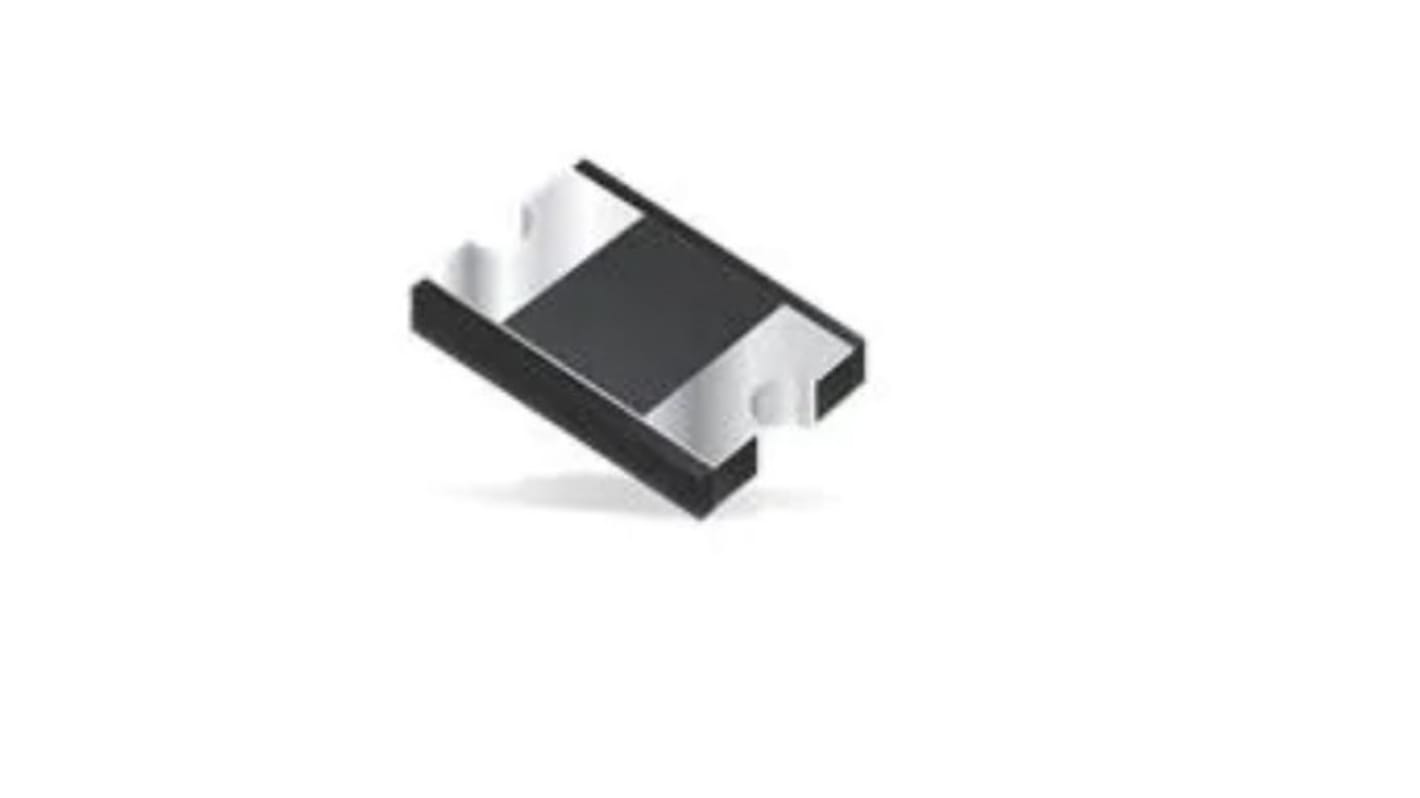

Bourns 400 V 1 A Diode Low loss 2-Pin DO-214AC
- RS-artikelnummer:
- 209-8023
- Tillv. art.nr:
- CD214A-S1G
- Tillverkare / varumärke:
- Bourns
Mängdrabatt möjlig
Antal (1 rulle med 3000 enheter)*
5 151,00 kr
(exkl. moms)
6 438,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 16 juli 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 3000 - 6000 | 1,717 kr | 5 151,00 kr |
| 9000 - 21000 | 1,548 kr | 4 644,00 kr |
| 24000 - 42000 | 1,392 kr | 4 176,00 kr |
| 45000 + | 1,368 kr | 4 104,00 kr |
*vägledande pris
- RS-artikelnummer:
- 209-8023
- Tillv. art.nr:
- CD214A-S1G
- Tillverkare / varumärke:
- Bourns
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Bourns | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-214AC | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 400V | |
| Series | CD214 | |
| Diode Configuration | Single | |
| Rectifier Type | Low loss | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Maximum Forward Voltage Vf | 1V | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 5μA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 2.2 mm | |
| Height | 1.16mm | |
| Length | 4.5mm | |
| Automotive Standard | AEC-Q101 | |
| Välj alla | ||
|---|---|---|
Brand Bourns | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-214AC | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 400V | ||
Series CD214 | ||
Diode Configuration Single | ||
Rectifier Type Low loss | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Maximum Forward Voltage Vf 1V | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 5μA | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 2.2 mm | ||
Height 1.16mm | ||
Length 4.5mm | ||
Automotive Standard AEC-Q101 | ||
The Bourns CD214A-S1D offers Glass Passivated Rectifiers for rectification applications, in a compact chip package compatible with DO-214AC (SMA) size format. The Glass Passivated Rectifiers offer a forward current of 1 A with a choice of repetitive peak reverse voltage of 400V. Maximum Repetitive Peak Reverse Voltage VRRM 400 V
RoHS compliant
Low profile
Low power loss, high efficiency
UL 94V-0 rating
Halogen free
