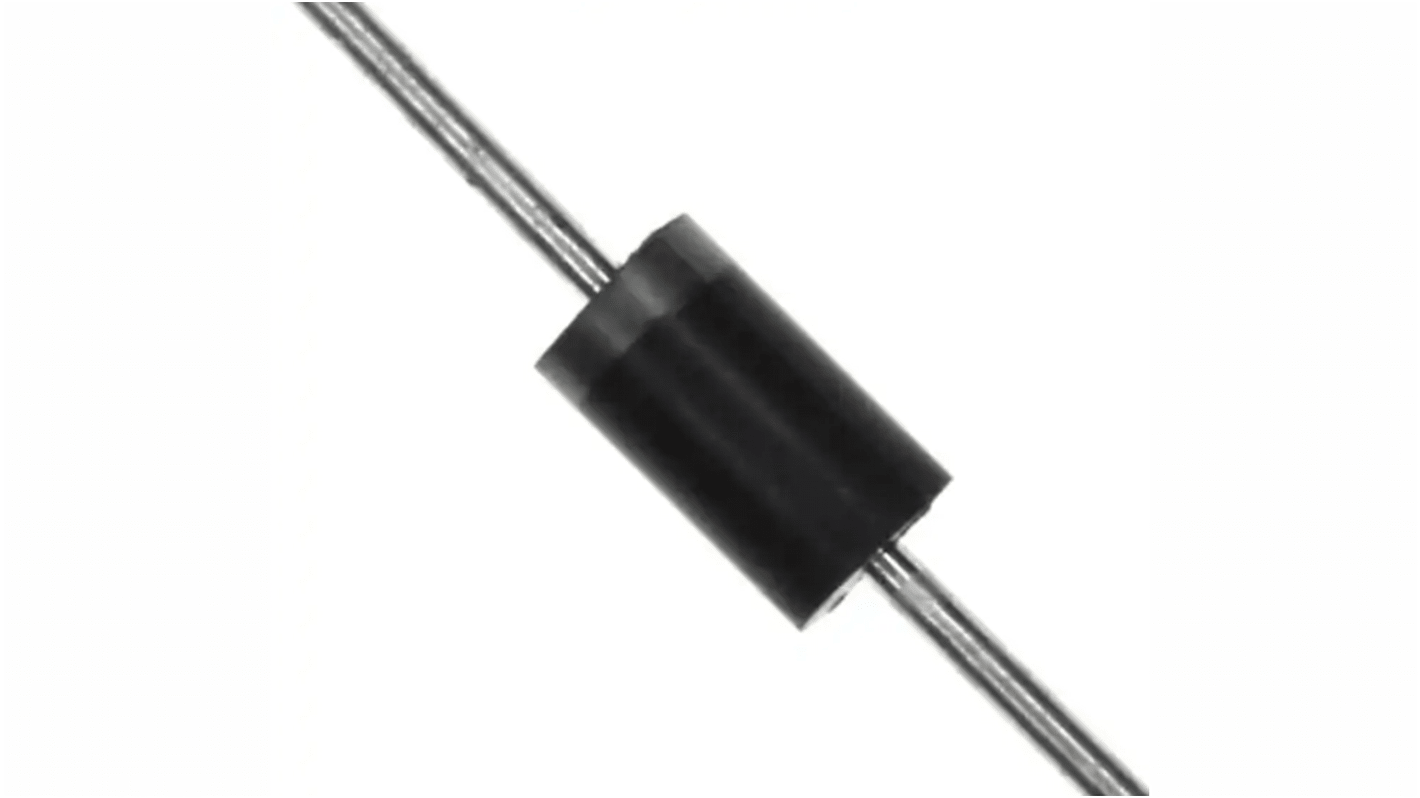

Vishay 800 V 3 A Rectifier & Schottky Diode General Purpose 2-Pin DO-201AD

RS-artikelnummer:: 180-8192
Tillv. art.nr:: 1N5407-E3/54
Tillverkare / varumärke:: Vishay

Vishay 800 V 3 A Rectifier & Schottky Diode General Purpose 2-Pin DO-201AD

Mängdrabatt möjlig

Antal (1 rulle med 1400 enheter)*

2 112,60 kr

(exkl. moms)

2 640,40 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

Leverans från den 14 april 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per rulle*
1400 - 1400	1,509 kr	2 112,60 kr
2800 - 5600	1,452 kr	2 032,80 kr
7000 +	1,416 kr	1 982,40 kr

*vägledande pris

RS-artikelnummer:: 180-8192
Tillv. art.nr:: 1N5407-E3/54
Tillverkare / varumärke:: Vishay

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Vishay
	Mount Type	Through Hole
	Product Type	Rectifier & Schottky Diode
	Package Type	DO-201AD
	Maximum Continuous Forward Current If	3A
	Peak Reverse Repetitive Voltage Vrrm	800V
	Series	1N54
	Diode Configuration	Single
	Rectifier Type	General Purpose
	Pin Count	2
	Peak Non-Repetitive Forward Surge Current Ifsm	200A
	Minimum Operating Temperature	50°C
	Maximum Forward Voltage Vf	1.2V
	Peak Reverse Current Ir	5μA
	Maximum Operating Temperature	150°C
	Diameter	4.8 mm
	Length	1in
	Standards/Approvals	JESD 201 Class 1A, JESD 22-B102, JESD 22-B106, J-STD-002, RoHS, UL 94 V-0
	Automotive Standard	No

	Välj alla
	Brand Vishay
	Mount Type Through Hole
	Product Type Rectifier & Schottky Diode
	Package Type DO-201AD
	Maximum Continuous Forward Current If 3A
	Peak Reverse Repetitive Voltage Vrrm 800V
	Series 1N54
	Diode Configuration Single
	Rectifier Type General Purpose
	Pin Count 2
	Peak Non-Repetitive Forward Surge Current Ifsm 200A
	Minimum Operating Temperature 50°C
	Maximum Forward Voltage Vf 1.2V
	Peak Reverse Current Ir 5μA
	Maximum Operating Temperature 150°C
	Diameter 4.8 mm
	Length 1in
	Standards/Approvals JESD 201 Class 1A, JESD 22-B102, JESD 22-B106, J-STD-002, RoHS, UL 94 V-0
	Automotive Standard No

Datasheet

COO (Country of Origin):: CN

Vishay Rectifier

The Vishay DO-201AD package through-hole mount general purpose plastic rectifier is the latest device with a repetitive reverse voltage of 800VDC and a forward current rating of 3A.

Features and Benefits

• High forward surge capability

• Lead (Pb) free component

• Low forward voltage drop

• Low leakage current

• Operating junction temperature ranges between -50°C and 150°C

• Solder dip 275°C maximum 10s

Applications

• Converters and inverters

• Polarity protection

• Power supplies

• Freewheeling diode

Certifications

• E 3

• JESD 22-B106
