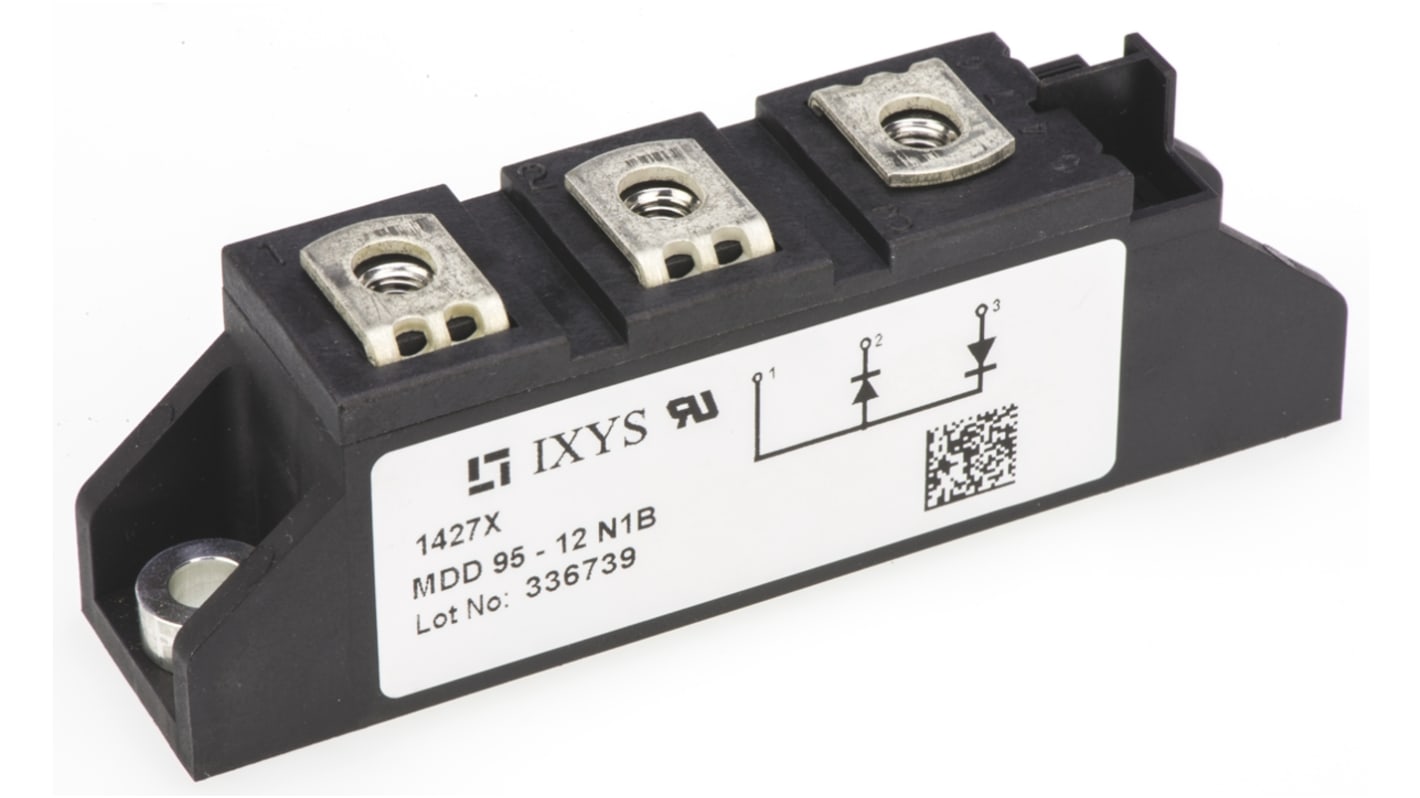

IXYS 1200 V 120 A Diode General Purpose 7-Pin TO-240 MDD95-12N1B
- RS-artikelnummer:
- 177-5368
- Tillv. art.nr:
- MDD95-12N1B
- Tillverkare / varumärke:
- IXYS
Antal (1 låda med 36 enheter)*
10 744,524 kr
(exkl. moms)
13 430,664 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 252 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Låda* |
|---|---|---|
| 36 + | 298,459 kr | 10 744,52 kr |
*vägledande pris
- RS-artikelnummer:
- 177-5368
- Tillv. art.nr:
- MDD95-12N1B
- Tillverkare / varumärke:
- IXYS
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | IXYS | |
| Product Type | Diode | |
| Mount Type | Panel | |
| Package Type | TO-240 | |
| Maximum Continuous Forward Current If | 120A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Diode Configuration | Series | |
| Series | MDD95 | |
| Rectifier Type | General Purpose | |
| Pin Count | 7 | |
| Maximum Forward Voltage Vf | 1.43V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3.03kA | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 15mA | |
| Maximum Operating Temperature | 150°C | |
| Height | 30mm | |
| Standards/Approvals | No | |
| Length | 92mm | |
| Width | 20.8 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand IXYS | ||
Product Type Diode | ||
Mount Type Panel | ||
Package Type TO-240 | ||
Maximum Continuous Forward Current If 120A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Diode Configuration Series | ||
Series MDD95 | ||
Rectifier Type General Purpose | ||
Pin Count 7 | ||
Maximum Forward Voltage Vf 1.43V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 3.03kA | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 15mA | ||
Maximum Operating Temperature 150°C | ||
Height 30mm | ||
Standards/Approvals No | ||
Length 92mm | ||
Width 20.8 mm | ||
Automotive Standard No | ||
MDD Series Dual Diode Modules, Ixys
Diodes and Rectifiers, Ixys
Approvals
UL recognised component
