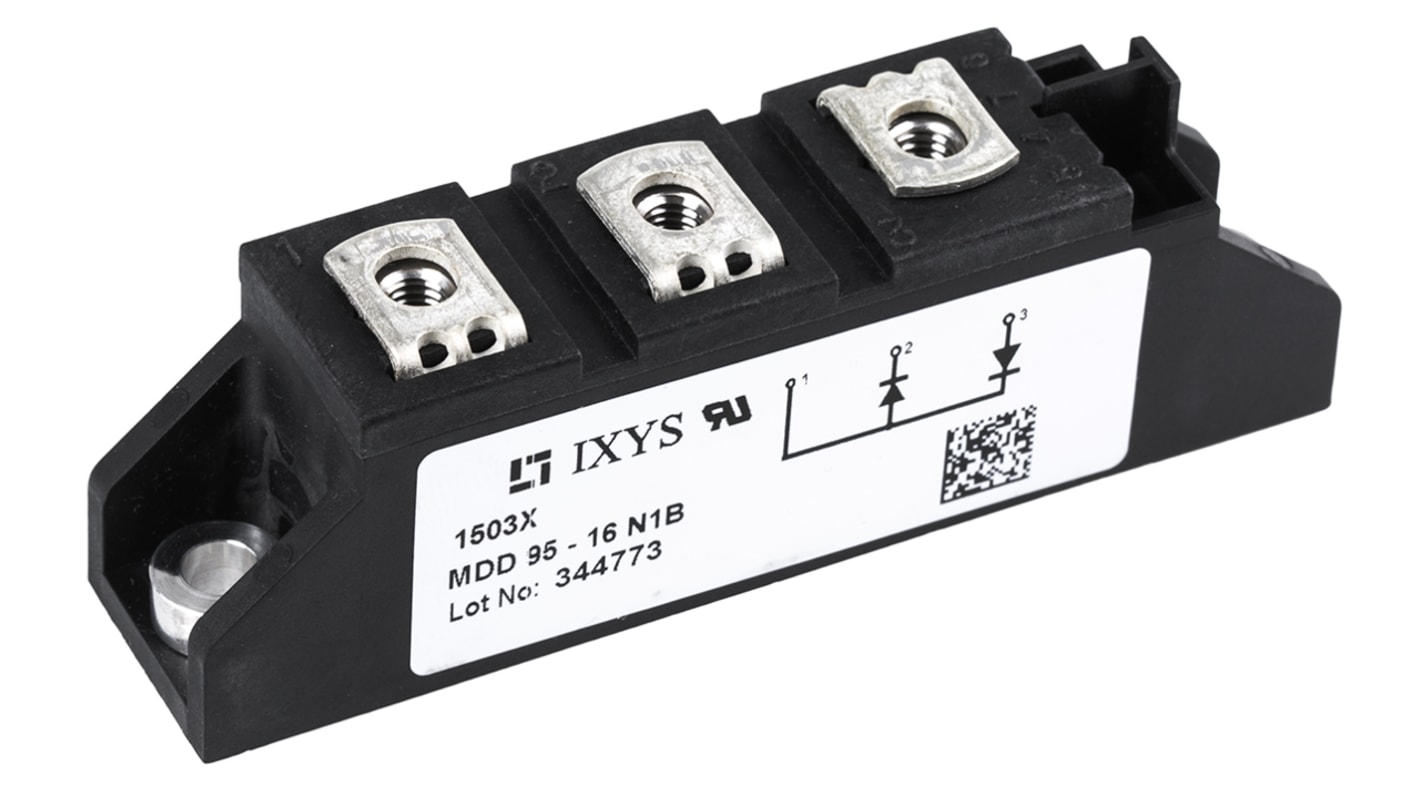

IXYS 1600 V 120 A Diode General Purpose 3-Pin TO-240

Name: IXYS 1600 V 120 A Diode General Purpose 3-Pin TO-240
Brand: IXYS
SKU: 177-5349
Price: 423.32 SEK
Availability: InStock

Antal (1 låda med 36 enheter)*

12 191,724 kr

(exkl. moms)

15 239,664 kr

(inkl. moms)

I lager

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Låda*
36 +	338,659 kr	12 191,72 kr

*vägledande pris

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	IXYS
	Product Type	Diode
	Mount Type	Panel
	Package Type	TO-240
	Maximum Continuous Forward Current If	120A
	Peak Reverse Repetitive Voltage Vrrm	1600V
	Series	MDD95
	Diode Configuration	Series
	Rectifier Type	General Purpose
	Pin Count	3
	Peak Non-Repetitive Forward Surge Current Ifsm	3.03kA
	Maximum Forward Voltage Vf	1.43V
	Peak Reverse Current Ir	15mA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Length	92mm
	Standards/Approvals	No
	Height	30mm
	Width	20.8 mm
	Automotive Standard	No

	Välj alla
	Brand IXYS
	Product Type Diode
	Mount Type Panel
	Package Type TO-240
	Maximum Continuous Forward Current If 120A
	Peak Reverse Repetitive Voltage Vrrm 1600V
	Series MDD95
	Diode Configuration Series
	Rectifier Type General Purpose
	Pin Count 3
	Peak Non-Repetitive Forward Surge Current Ifsm 3.03kA
	Maximum Forward Voltage Vf 1.43V
	Peak Reverse Current Ir 15mA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Length 92mm
	Standards/Approvals No
	Height 30mm
	Width 20.8 mm
	Automotive Standard No
