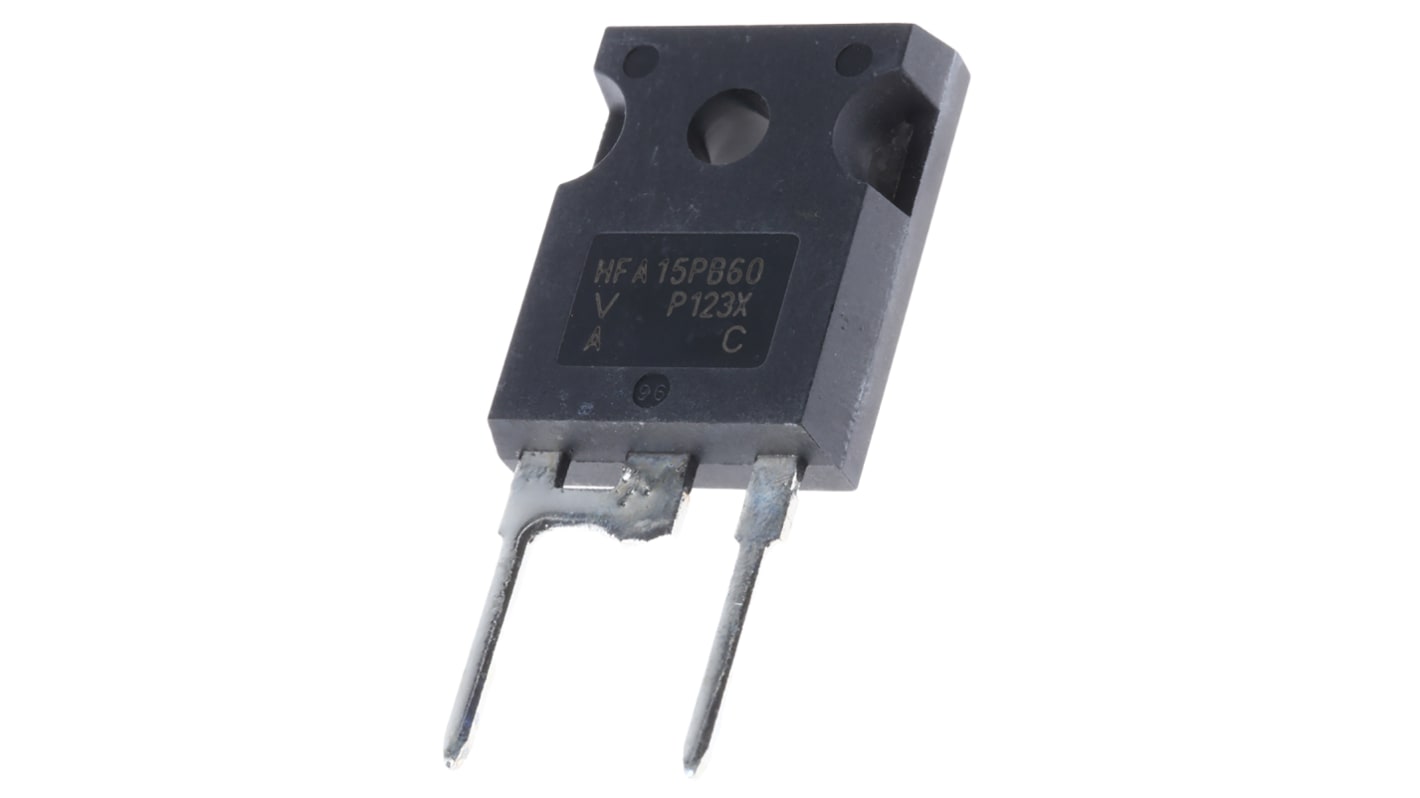

Vishay 600 V 15 A Diode Switching 2-Pin TO-247 VS-HFA15PB60-N3
- RS-artikelnummer:
- 165-2467
- Tillv. art.nr:
- VS-HFA15PB60-N3
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 rör med 25 enheter)*
957,15 kr
(exkl. moms)
1 196,45 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- 125 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 25 - 25 | 38,286 kr | 957,15 kr |
| 50 - 100 | 36,373 kr | 909,33 kr |
| 125 + | 32,543 kr | 813,58 kr |
*vägledande pris
- RS-artikelnummer:
- 165-2467
- Tillv. art.nr:
- VS-HFA15PB60-N3
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current If | 15A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Diode Configuration | Single | |
| Series | VSX | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 2V | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 10μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A | |
| Peak Reverse Recovery Time trr | 60ns | |
| Maximum Operating Temperature | 150°C | |
| Length | 15.9mm | |
| Height | 20.7mm | |
| Standards/Approvals | RoHS | |
| Width | 5.3 mm | |
| Diameter | 20.7 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current If 15A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Diode Configuration Single | ||
Series VSX | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 2V | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 10μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 150A | ||
Peak Reverse Recovery Time trr 60ns | ||
Maximum Operating Temperature 150°C | ||
Length 15.9mm | ||
Height 20.7mm | ||
Standards/Approvals RoHS | ||
Width 5.3 mm | ||
Diameter 20.7 mm | ||
Automotive Standard No | ||
HEXFRED® Ultrafast Recovery Rectifiers, Vishay Semiconductor
The HEXFRED® range of products from Vishay are ultrafast recovery rectifiers that contain ultrafast planar technology with a proprietary Schottky barrier based inner structure that enables soft and fast recovery behaviour at any diF/dt condition. These characteristics mean that HEXFRED® products are well suited for use as a companion diode for IGBTs and MOSFETs.
Features
Ultrafast recovery time
Ultrasoft recovery
Very low IRRM
Very low Qrr
Reduced radio frequency interference (RFI) and electromagnetic interference (EMI)
Reduced power loss in diode and switching transistor
Reduced snubbing
Diodes and Rectifiers, Vishay Semiconductor
