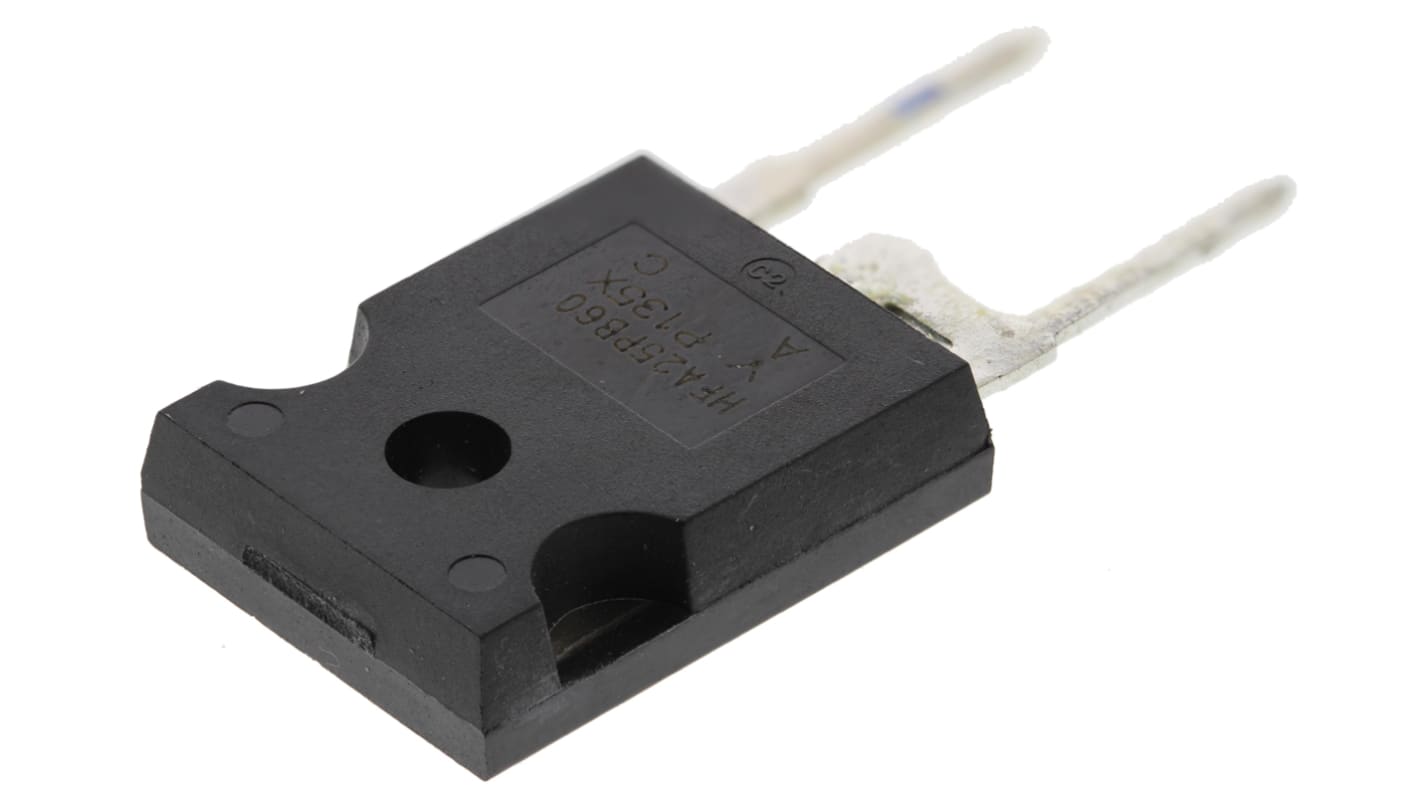

Vishay 600 V 25 A Diode Switching 2-Pin TO-247
- RS-artikelnummer:
- 145-1577
- Tillv. art.nr:
- VS-HFA25PB60-N3
- Tillverkare / varumärke:
- Vishay
Antal (1 rör med 25 enheter)*
825,225 kr
(exkl. moms)
1 031,525 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 1 550 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 25 + | 33,009 kr | 825,23 kr |
*vägledande pris
- RS-artikelnummer:
- 145-1577
- Tillv. art.nr:
- VS-HFA25PB60-N3
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current If | 25A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Diode Configuration | Single | |
| Series | VSX | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 225A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 20μA | |
| Maximum Forward Voltage Vf | 2V | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 75ns | |
| Diameter | 20.7 mm | |
| Length | 15.9mm | |
| Standards/Approvals | RoHS | |
| Height | 20.7mm | |
| Width | 5.3 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current If 25A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Diode Configuration Single | ||
Series VSX | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 225A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 20μA | ||
Maximum Forward Voltage Vf 2V | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 75ns | ||
Diameter 20.7 mm | ||
Length 15.9mm | ||
Standards/Approvals RoHS | ||
Height 20.7mm | ||
Width 5.3 mm | ||
Automotive Standard No | ||
HEXFRED® Ultrafast Recovery Rectifiers, Vishay Semiconductor
The HEXFRED® range of products from Vishay are ultrafast recovery rectifiers that contain ultrafast Planar technology with a proprietary Schottky barrier based inner structure that enables soft and fast recovery behaviour at any diF/dt condition. These characteristics mean that HEXFRED® products are well suited for use as a companion diode for IGBTs and MOSFETs.
Features
Ultrafast recovery time
Ultrasoft recovery
Very low IRRM
Very low Qrr
Reduced radio frequency interference (RFI) and electromagnetic interference (EMI)
Reduced power loss in diode and switching transistor
Reduced snubbing
Diodes and Rectifiers, Vishay Semiconductor
