Nexperia 85 V 215 mA Diode Switching 3-Pin SOT-23

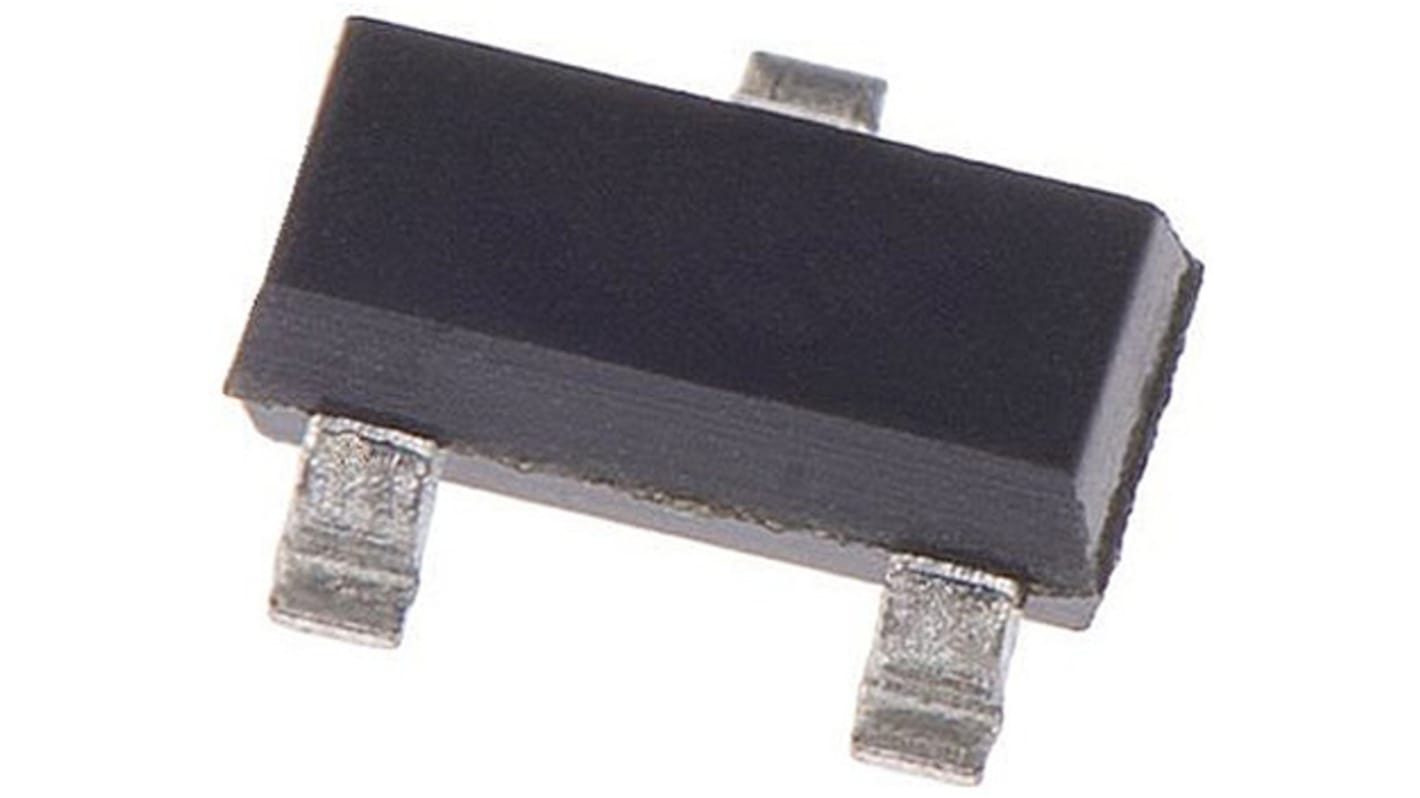

Denna bild representerar endast produktgruppen

Antal (1 rulle med 3000 enheter)*

1 380,00 kr

(exkl. moms)

1 740,00 kr

(inkl. moms)

I lager

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per rulle*
3000 +	0,46 kr	1 380,00 kr

*vägledande pris

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	DiodesZetex
	Product Type	Diode
	Mount Type	Surface
	Package Type	SOT-23
	Maximum Continuous Forward Current If	215mA
	Peak Reverse Repetitive Voltage Vrrm	85V
	Diode Configuration	Common Cathode
	Series	BAV170
	Rectifier Type	Switching
	Pin Count	3
	Maximum Forward Voltage Vf	1.25V
	Minimum Operating Temperature	-65°C
	Peak Non-Repetitive Forward Surge Current Ifsm	4A
	Peak Reverse Current Ir	80nA
	Maximum Operating Temperature	150°C
	Peak Reverse Recovery Time trr	3μs
	Height	1.1mm
	Width	1.4 mm
	Standards/Approvals	No
	Length	3mm
	Automotive Standard	AEC-Q101

	Välj alla
	Brand DiodesZetex
	Product Type Diode
	Mount Type Surface
	Package Type SOT-23
	Maximum Continuous Forward Current If 215mA
	Peak Reverse Repetitive Voltage Vrrm 85V
	Diode Configuration Common Cathode
	Series BAV170
	Rectifier Type Switching
	Pin Count 3
	Maximum Forward Voltage Vf 1.25V
	Minimum Operating Temperature -65°C
	Peak Non-Repetitive Forward Surge Current Ifsm 4A
	Peak Reverse Current Ir 80nA
	Maximum Operating Temperature 150°C
	Peak Reverse Recovery Time trr 3μs
	Height 1.1mm
	Width 1.4 mm
	Standards/Approvals No
	Length 3mm
	Automotive Standard AEC-Q101

Supports customised high density circuit designs

Low-leakage and high-voltage types available

High switching speeds

Low capacitance
