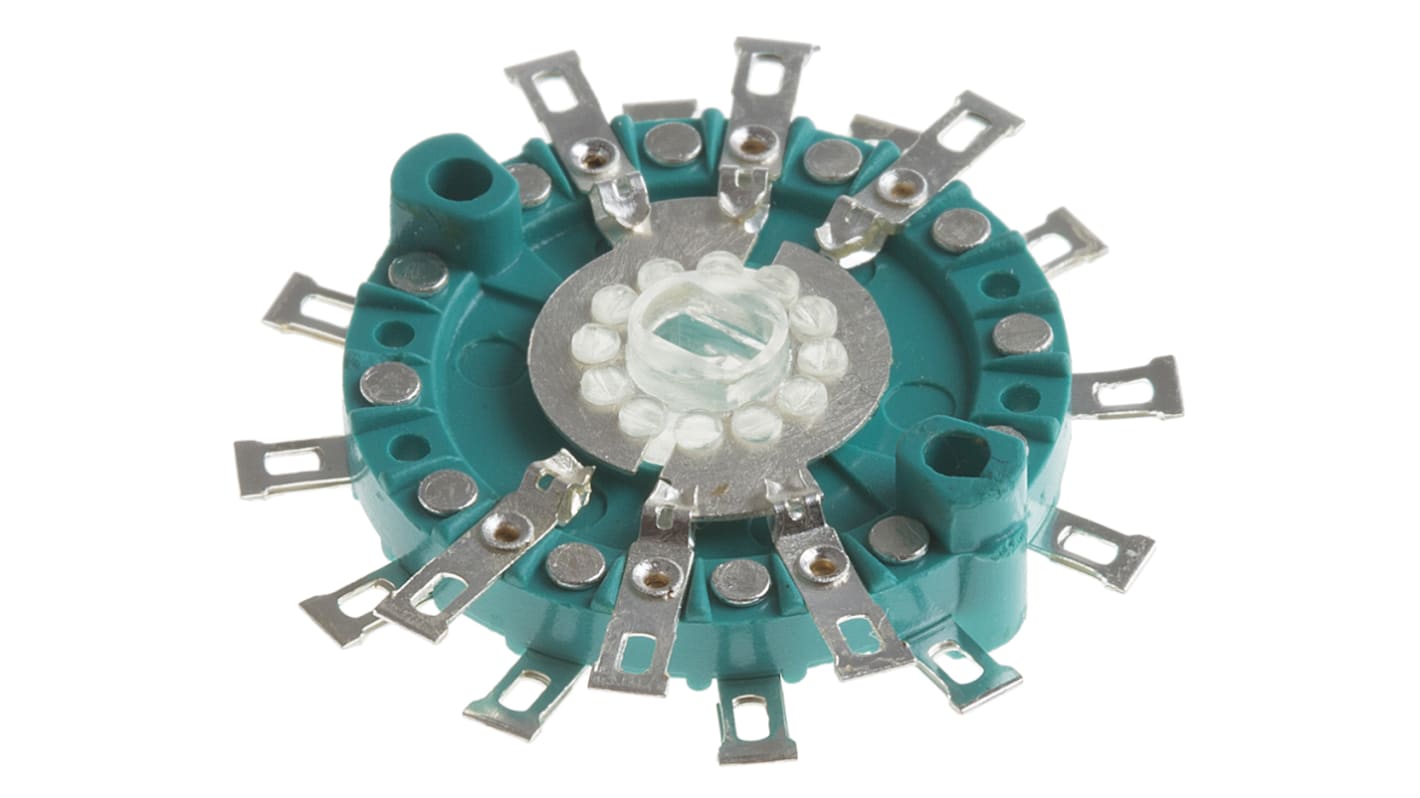

NSF Rotary Switch Wafer 2-Position
- RS-artikelnummer:
- 352-238
- Tillv. art.nr:
- 457845/1/MA
- Tillverkare / varumärke:
- NSF
Mängdrabatt möjlig
Antal (1 enhet)*
391,42 kr
(exkl. moms)
489,28 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 9 enhet(er) är redo att levereras
- Plus 16 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 50 enhet(er) från den 07 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 391,42 kr |
| 10 - 24 | 347,76 kr |
| 25 - 49 | 304,75 kr |
| 50 - 199 | 253,57 kr |
| 200 + | 243,82 kr |
*vägledande pris
- RS-artikelnummer:
- 352-238
- Tillv. art.nr:
- 457845/1/MA
- Tillverkare / varumärke:
- NSF
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | NSF | |
| Diameter | 25.4mm | |
| Number of Switch Positions | 2 | |
| Voltage Rating | 300V ac/dc | |
| Number of Contacts | 6 | |
| Contact Configuration | 6PDT | |
| Contact Current Rating | 150 mA @ 250 V ac | |
| Contact Material | Silver Plated Brass | |
| Contact Type | Non-Shorting | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Välj alla | ||
|---|---|---|
Brand NSF | ||
Diameter 25.4mm | ||
Number of Switch Positions 2 | ||
Voltage Rating 300V ac/dc | ||
Number of Contacts 6 | ||
Contact Configuration 6PDT | ||
Contact Current Rating 150 mA @ 250 V ac | ||
Contact Material Silver Plated Brass | ||
Contact Type Non-Shorting | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
- COO (Country of Origin):
- GB
Miniature Shaft Assembly & Wafers
Miniature Shaft Assembly
Double-spring detent mechanisms in miniature size
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 94mm, front shaft length 12mm
Optional accessories are available for to suit individual requirements
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 94mm, front shaft length 12mm
Optional accessories are available for to suit individual requirements
