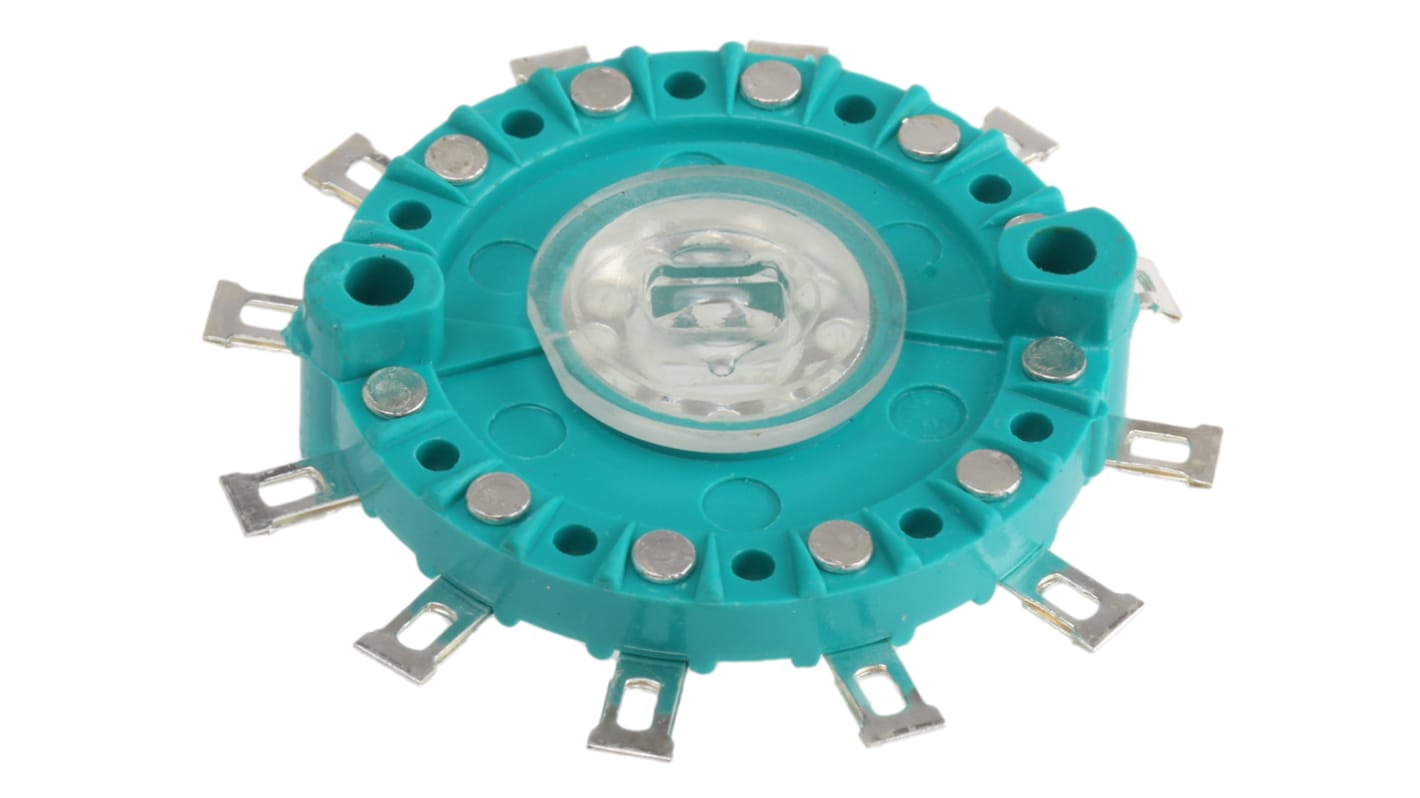

NSF Rotary Switch Wafer 11-Position
- RS-artikelnummer:
- 352-244
- Tillv. art.nr:
- 457846MA
- Tillverkare / varumärke:
- NSF
118 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
203,95 kr
(exkl. moms)
254,94 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 203,95 kr |
| 10 - 49 | 183,76 kr |
| 50 - 99 | 152,93 kr |
| 100 - 249 | 142,95 kr |
| 250 + | 130,75 kr |
- RS-artikelnummer:
- 352-244
- Tillv. art.nr:
- 457846MA
- Tillverkare / varumärke:
- NSF
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
Miniature Shaft Assembly & Wafers
Miniature Shaft Assembly
Double-spring detent mechanisms in miniature size
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 94mm, front shaft length 12mm
Optional accessories are available for to suit individual requirements
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 94mm, front shaft length 12mm
Optional accessories are available for to suit individual requirements
Wafers
Specifikationer
Attribute | Value |
|---|---|
| Diameter | 25.4mm |
| Number of Switch Positions | 11 |
| Voltage Rating | 300V ac/dc |
| Number of Contacts | 1 |
| Contact Configuration | SP11T |
| Contact Current Rating | 150 mA @ 250 V ac |
| Contact Material | Silver Plated Brass |
| Contact Type | Shorting |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
