Telemecanique Sensors XY2-CH Rope Pull Switch, 15m, 2NC, Straight

RS-artikelnummer:: 742-3924
Tillv. art.nr:: XY2CH13270H29
Tillverkare / varumärke:: Telemecanique Sensors

Telemecanique Sensors XY2-CH Rope Pull Switch, 15m, 2NC, Straight

Försörjningsbrist

På grund av en global utbudsbrist vet vi inte när detta kommer att finnas i lager igen.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

Telemecanique Sensors XY2-CH Rope Pull Switch, 2NC, Straight

RS-artikelnummer: 609-1939

Varje

2 104,03 kr

(exkl. moms)

2 630,04 kr

(inkl. moms)

RS-artikelnummer:: 742-3924
Tillv. art.nr:: XY2CH13270H29
Tillverkare / varumärke:: Telemecanique Sensors

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Telemecanique Sensors
	Normal State Configuration	2NC
	Cable Length	15m
	Mounting Orientation	Straight
	IP Rating	IP65
	Number of Poles	DP
	Series	XY2-CH
	Range	Preventa
	Length	68mm
	Width	201mm
	Depth	95mm
	Maximum DC Voltage	250V
	Maximum AC Voltage	240V
	Minimum Operating Temperature	-25°C
	Conduit Entry	M20 x 1.5
	Dimensions	68 x 201 x 95mm
	Maximum Operating Temperature	+70°C

	Välj alla
	Brand Telemecanique Sensors
	Normal State Configuration 2NC
	Cable Length 15m
	Mounting Orientation Straight
	IP Rating IP65
	Number of Poles DP
	Series XY2-CH
	Range Preventa
	Length 68mm
	Width 201mm
	Depth 95mm
	Maximum DC Voltage 250V
	Maximum AC Voltage 240V
	Minimum Operating Temperature -25°C
	Conduit Entry M20 x 1.5
	Dimensions 68 x 201 x 95mm
	Maximum Operating Temperature +70°C

Logga in för att ladda ner CAD-modeller

COO (Country of Origin):: MA

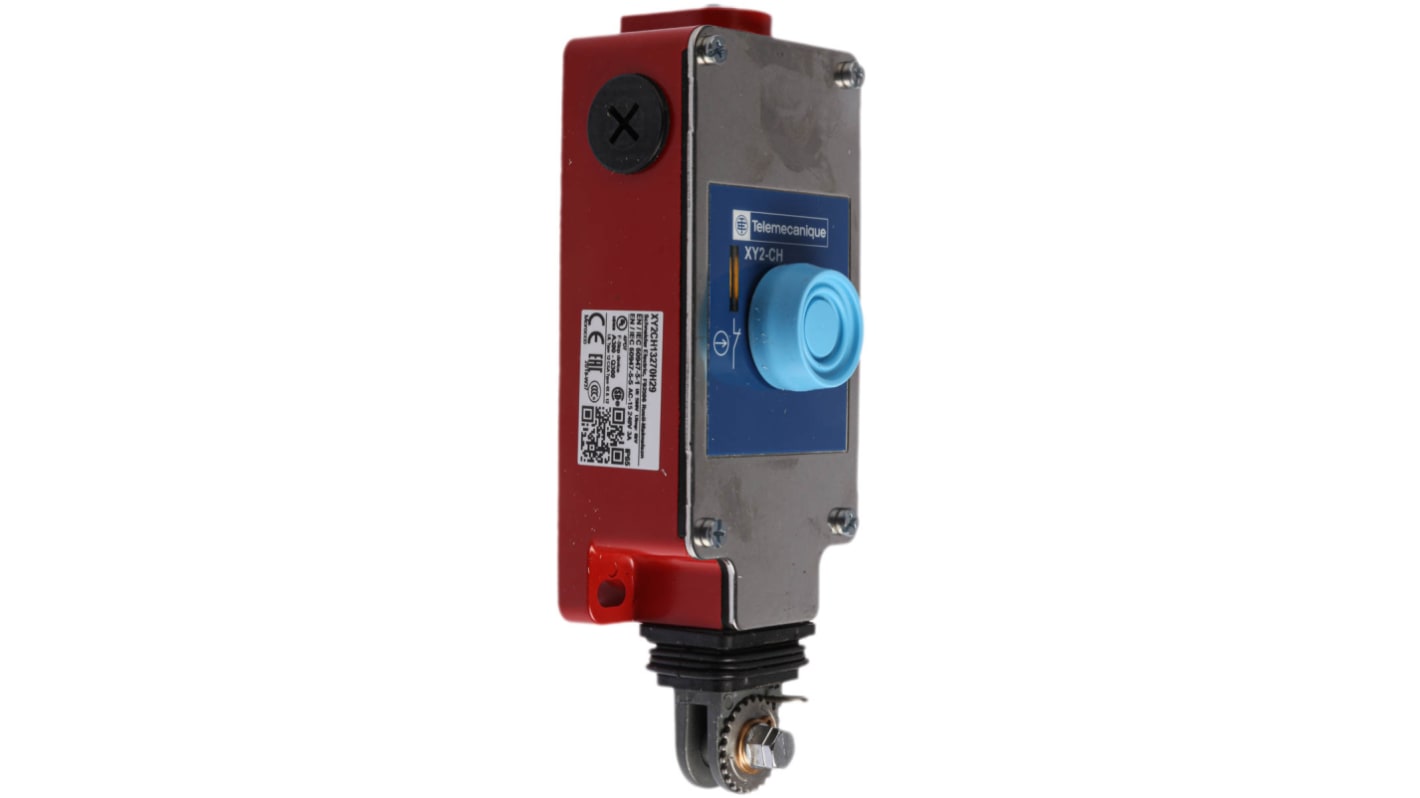

Telemecanique Sensors Emergency Stop Rope Pull Switch

The Telemecanique Sensors XY2-CH-series emergency stop rope pull switch has a 2NC contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. This switch has a rope span of 15m and the mounting orientation is straight.

Note:
Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version.

Features and Benefits

Size of cable entry is M20 x 1.5
For machine tools, conveyers and handling applications
Recommended distance between cable supports is 5m
Built-in turnbuckle accessory
Pushbutton reset
Water and dust tight enclosure
Surface mount

Applications

Conveyor systems
Packaging
Textiles
Transfer machines
Presses
Woodworking equipment
Paint lines
Test laboratories

Certifications

UL approved
CCN certified
CSA certified
CE certified
IP65 rated
